G mesh cable tray Magic® 125 A4 3000 | 75 | 125 | 3.9 | 61 | no

G mesh cable tray Magic® 125 A4

Item no. 6005571 | EAN 4012195771647

Item no. / Types	6005571 / G-GRM 125 75 A4

Length	3000 mm

Width	75 mm

Height	125 mm

Wire diameter	3.9 mm

Usable cross-section	61 cm²

Maintain electrical functions	no

Product description

Product description

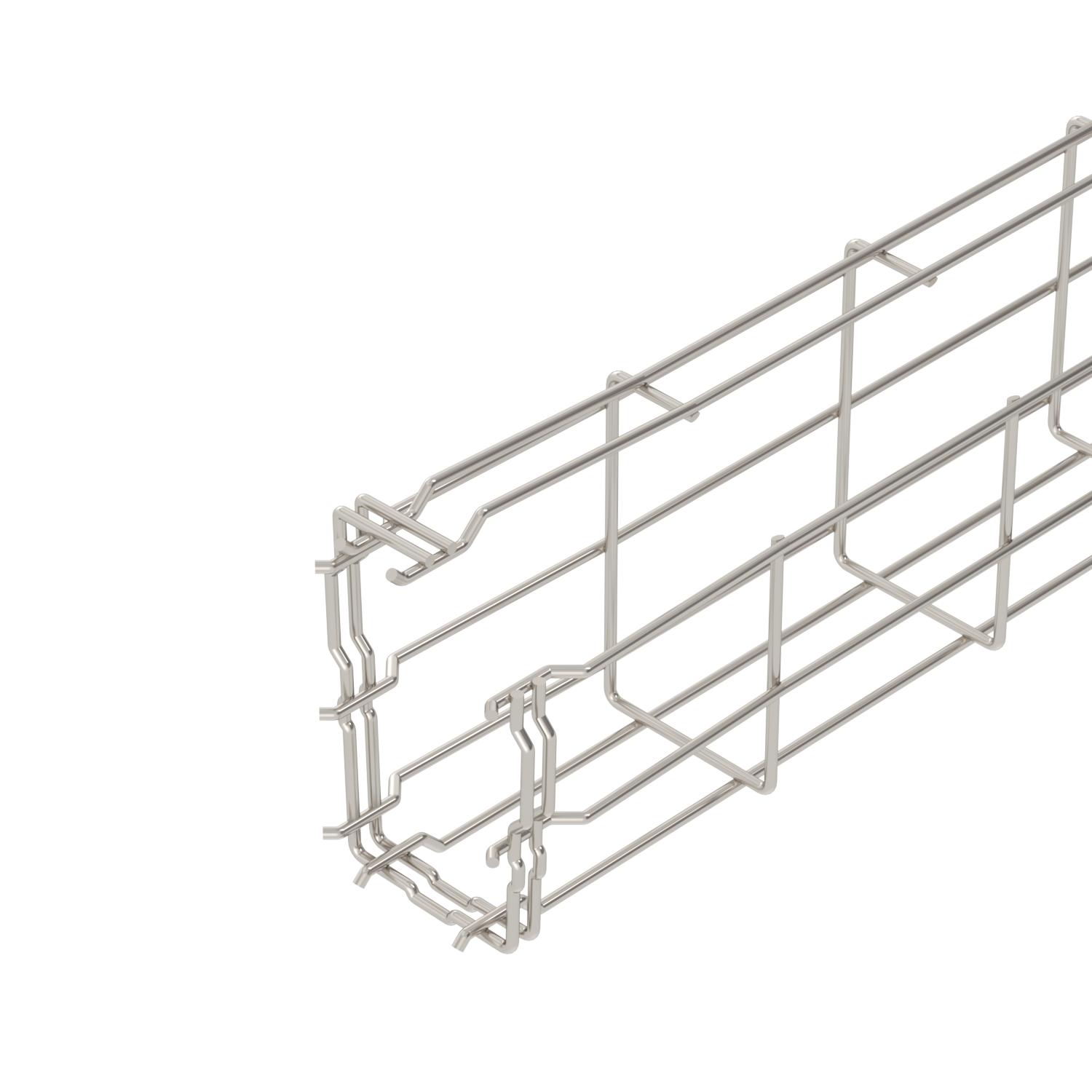

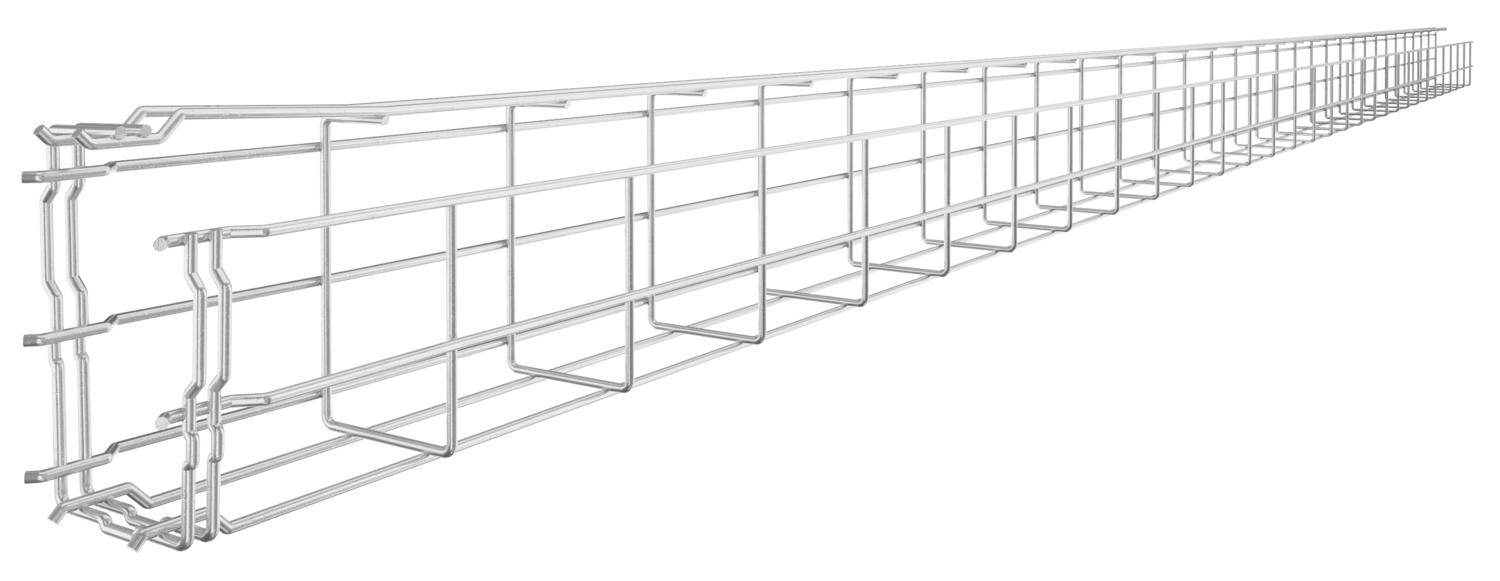

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.

Magnetic shield insulation 15 dB.

Technical data

Technical data

Connector version	Integrated connector

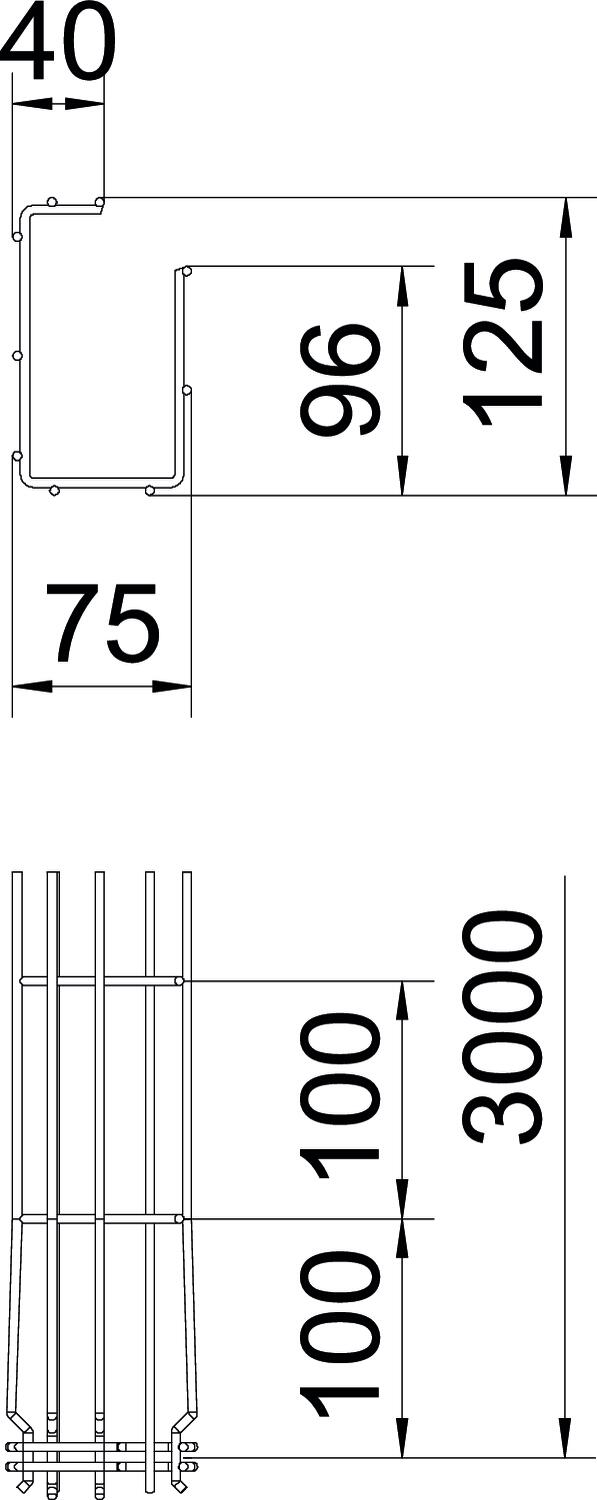

Dimension	125x75x3000
Dimension A	96 mm
Dimension B	75 mm
Dimension C	38 mm
Dimension H	125 mm
Height	125 mm
Height	4,92 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel
Profile shape	G-shaped

Rustproof steel, pickled	yes
Screwless connector	yes
Support spacing 1.0 m	0,6 kN/m
Support spacing 1.5 m	0,35 kN/m
Support spacing 2.0 m	0,3 kN/m
Support spacing 2.5 m	0,25 kN/m
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	6100 mm²
Usable cross-section	61 cm²
Wide-span version	no
Width	2,95 in
Width	75 mm
Wire diameter	3,9 mm
