G mesh cable tray Magic® 125 FT
Item no. 6005526 | EAN 4012195686415
- Product description
-
Product description

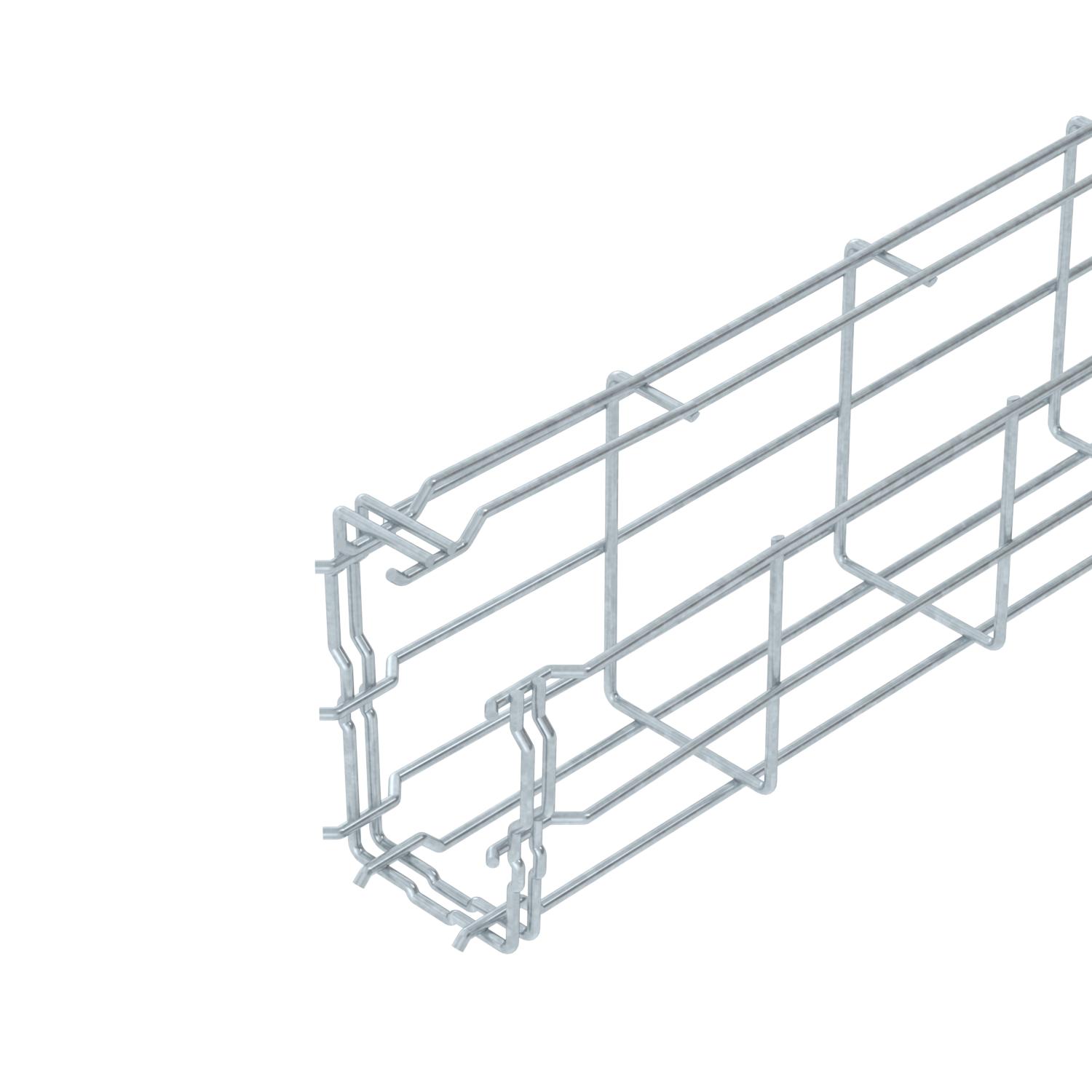

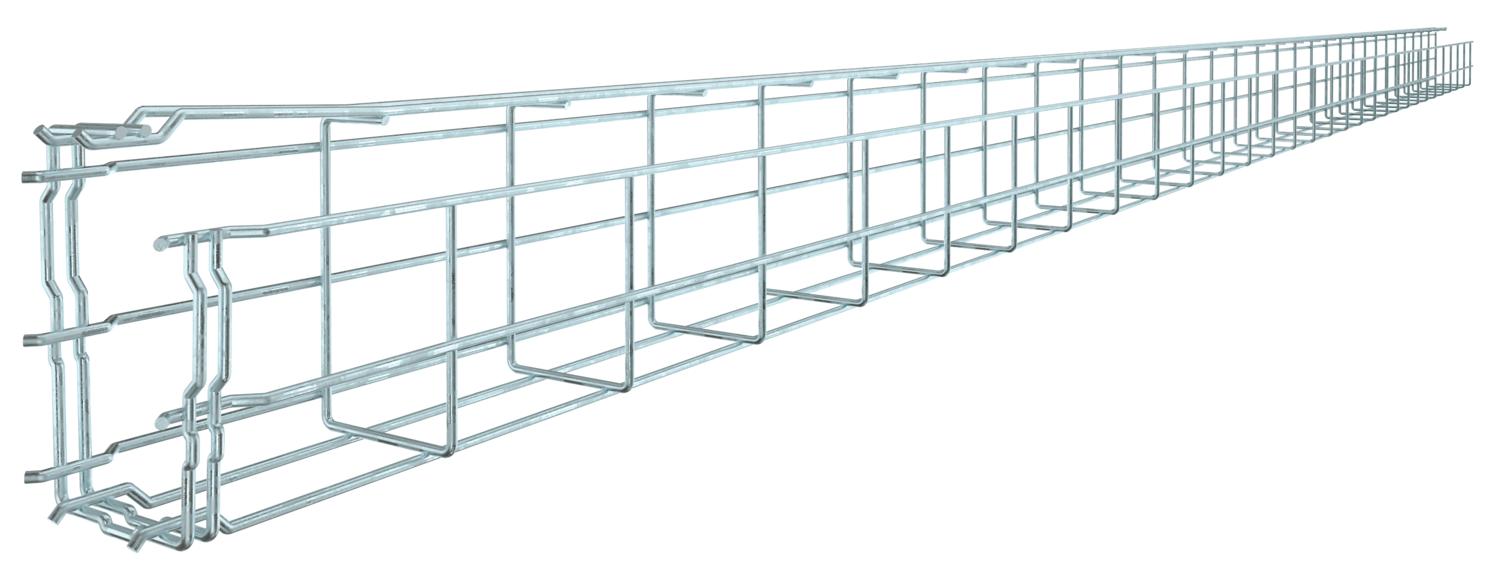

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data

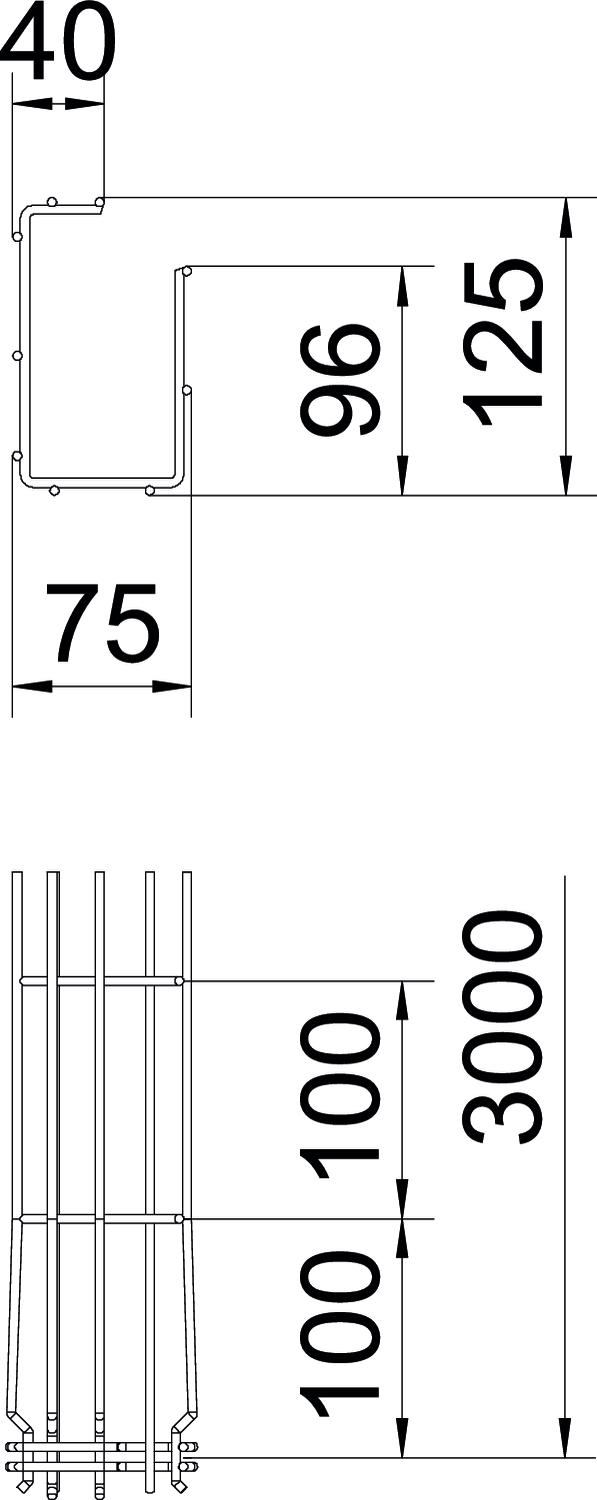

Connector version Integrated connector Dimension 125x75x3000 Dimension A 96 mm Dimension B 75 mm Dimension C 38 mm Dimension H 125 mm Height 4,92 in Height 125 mm Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Profile shape G-shaped Rustproof steel, pickled no Screwless connector yes Support spacing 1.0 m 0,6 kN/m Support spacing 1.5 m 0,35 kN/m Support spacing 2.0 m 0,3 kN/m Support spacing 2.5 m 0,25 kN/m Surface Hot-dip galvanised Type of connector, cable support system Click fastening Usable cross-section 6100 mm² Usable cross-section 61 cm² Wide-span version no Width 75 mm Width 2,95 in Wire diameter 3,9 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector FT
GSV 34 FT 6016634 20 piece
Wall clamp and central hanger FT
WB GR FT 6017160 20 piece - Downloads
-
