G mesh cable tray Magic® 150 A2
Item no. 6005559 | EAN 4012195686507
- Product description
-
Product description

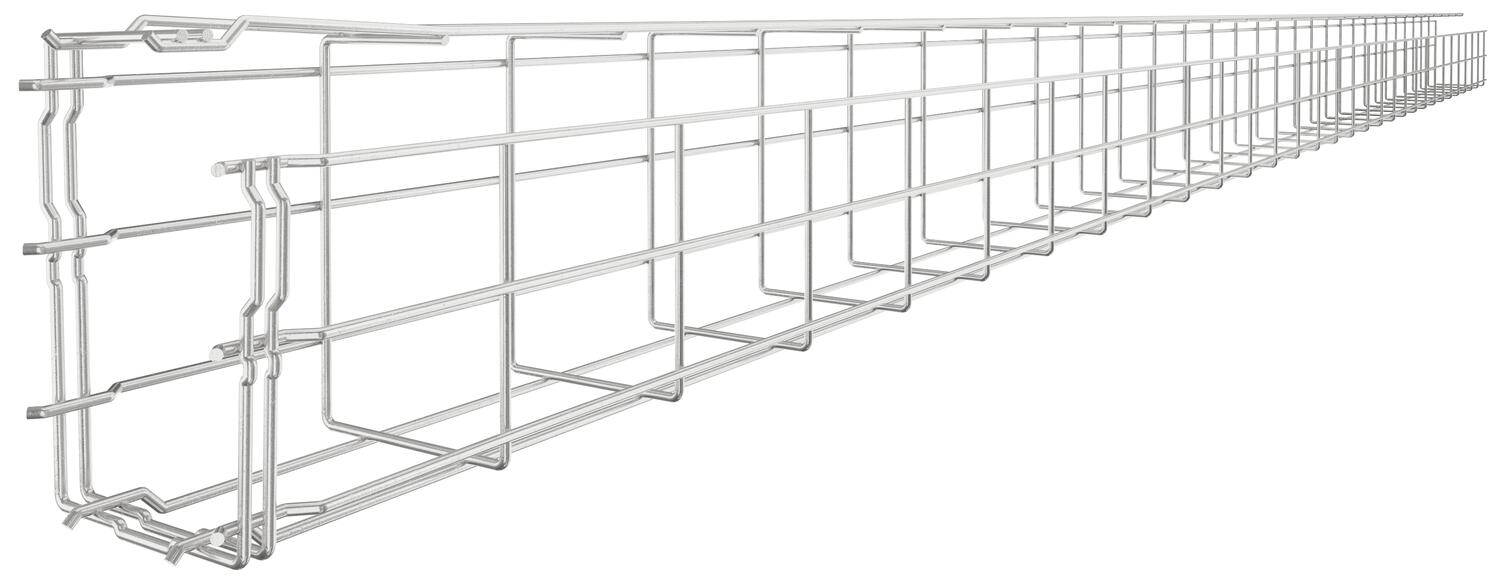

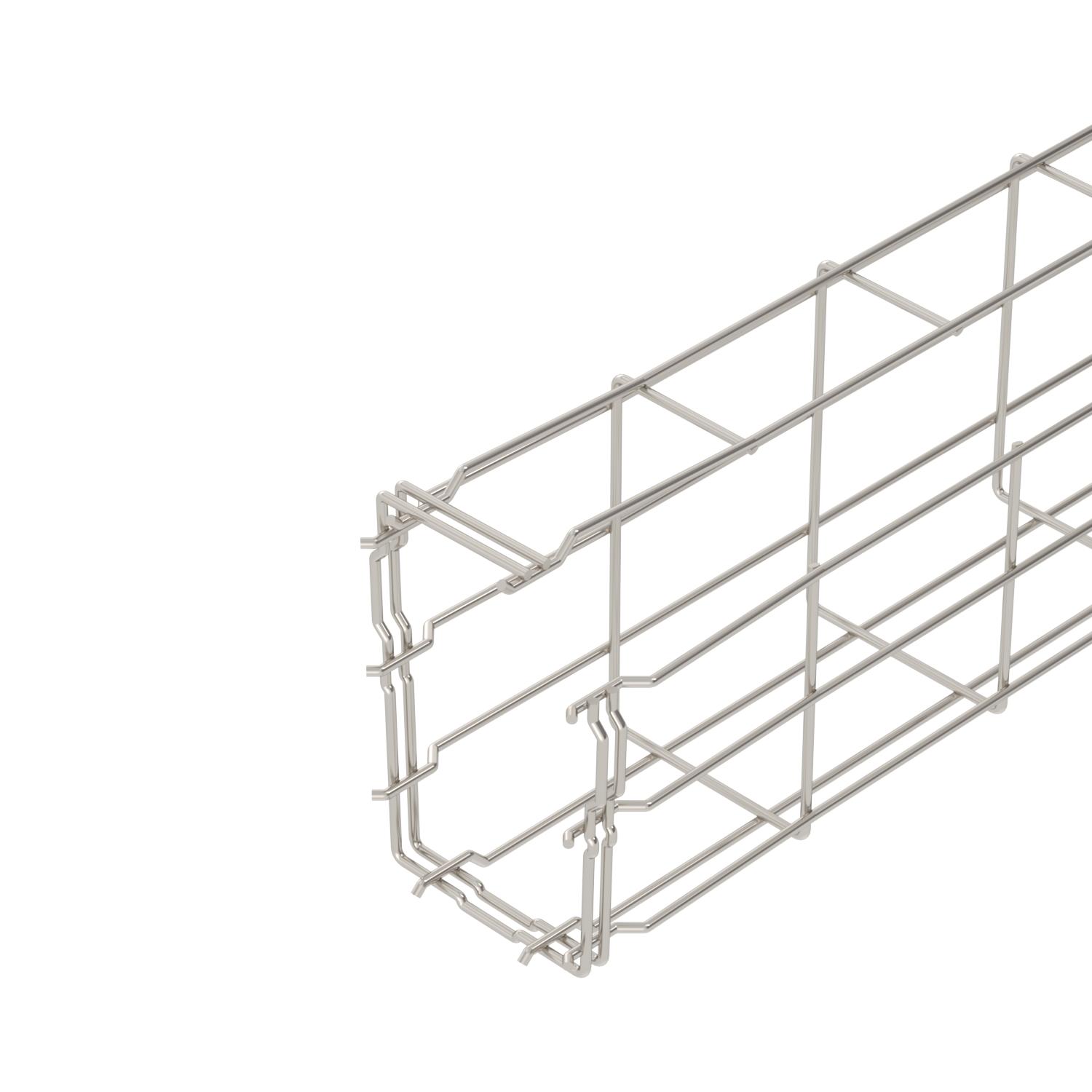

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data

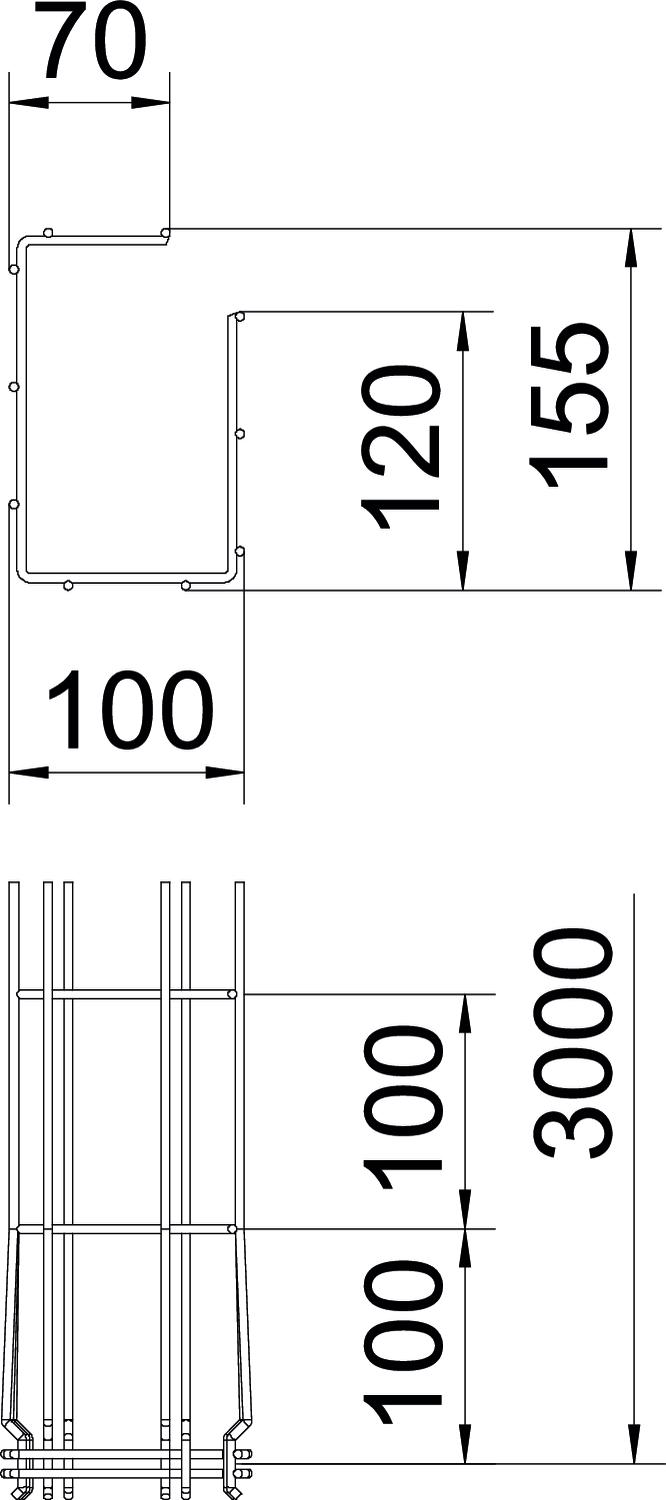

Connector version Integrated connector Dimension 150x100x3000 Dimension A 120 mm Dimension B 100 mm Dimension C 68 mm Dimension H 155 mm Height 5,91 in Height 150 mm Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Stainless steel Profile shape G-shaped Rustproof steel, pickled yes Screwless connector yes Support spacing 1.0 m 0,6 kN/m Support spacing 1.5 m 0,5 kN/m Support spacing 2.0 m 0,35 kN/m Support spacing 2.5 m 0,3 kN/m Surface Bright, treated Type of connector, cable support system Click fastening Usable cross-section 107 cm² Usable cross-section 10700 mm² Wide-span version no Width 100 mm Width 3,94 in Wire diameter 3,9 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector A2
GSV 34 A2 6016642 20 piece
Wall clamp and central hanger A4
WB GR A4 6017164 20 piece - Downloads
-
Data sheet G-GRM 150 100 A2 / 6005559 , 0.26MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity G-GRM 150 100 A2 / 6005559 , 0.13MB , pdfREACH Declaration of conformity G-GRM 150 100 A2 / 6005559 , 0.12MB , pdfRoHS Declaration of conformity G-GRM 150 100 A2 / 6005559 , 0.12MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfSelection aid GR-Magic® , 2.00MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfMounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf
