G mesh cable tray Magic® 50 A2
Item no. 6005550 | EAN 4012195686477
- Product description
-

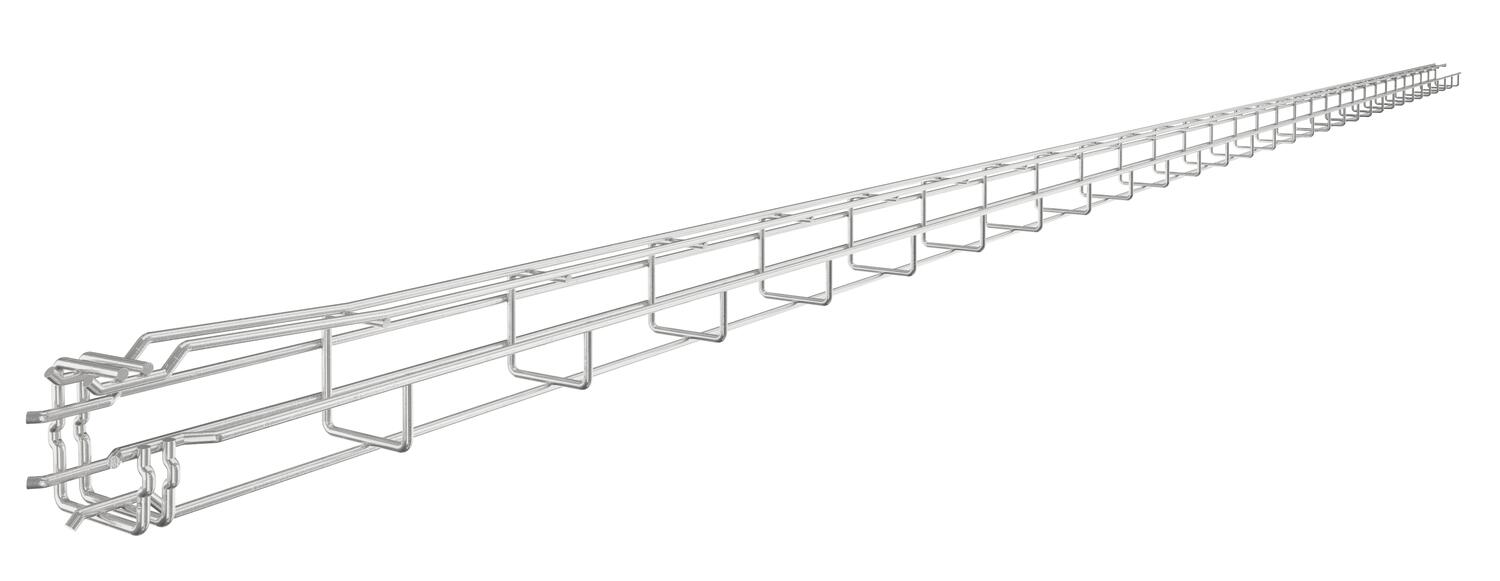

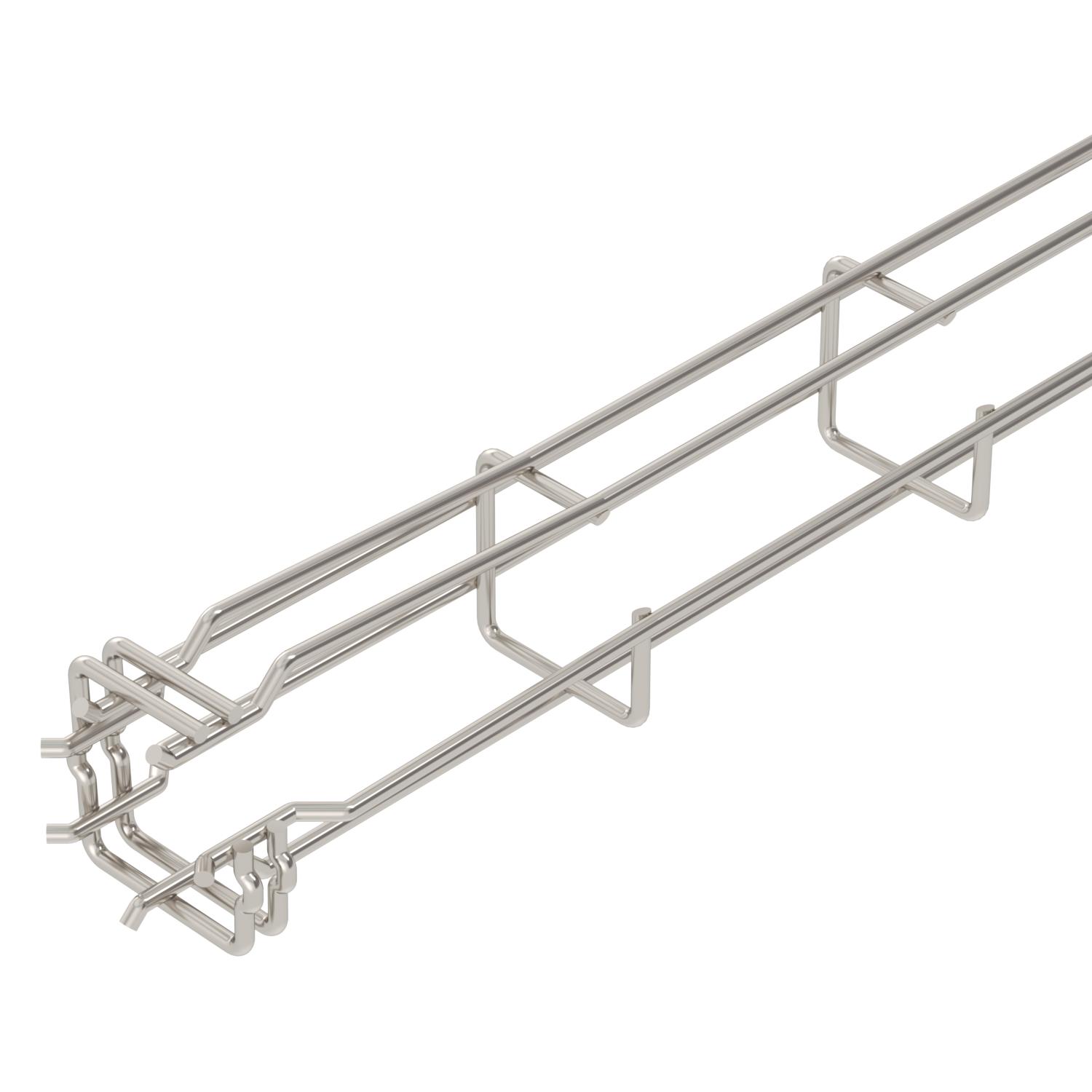

Product descriptionG-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.
Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.
Magnetic shield insulation 15 dB.
-
- Technical data
-
Technical data

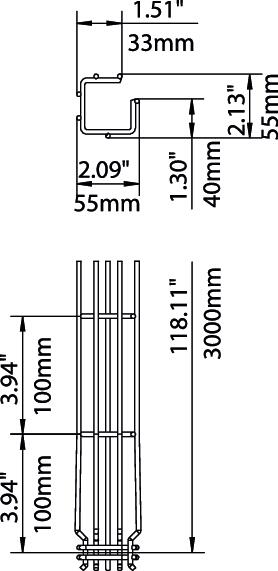

Colour stainless steel Connector version Integrated connector CO₂ Footprint (GWP) Cradle-to-Gate 3,4137 kg CO₂e / 1 Meter Dimension 50x50x3000 Dimension A 38 mm Dimension B 55 mm Dimension C 33 mm Dimension H 55 mm Height 1,97 in Height 50 mm Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Stainless steel Profile shape G-shaped Rustproof steel, pickled yes Screwless connector yes Surface Bright, treated Type of connector, cable support system Click fastening Usable cross-section 1700 mm² Usable cross-section 17 cm² Wide-span version no Width 50 mm Width 1,97 in Wire diameter 3,9 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Joint connector A2
GSV 34 A2 6016642 20 piece
Wall clamp and central hanger A4
WB GR A4 6017164 20 piece - Downloads
-
