G mesh cable tray Magic® 75 A4

Item no. 6005568 | EAN 4012195771609

6005568 / G-GRM 75 50 A4
3000 mm
50 mm
75 mm
3.9 mm
22 cm²
no
Product description
Product description

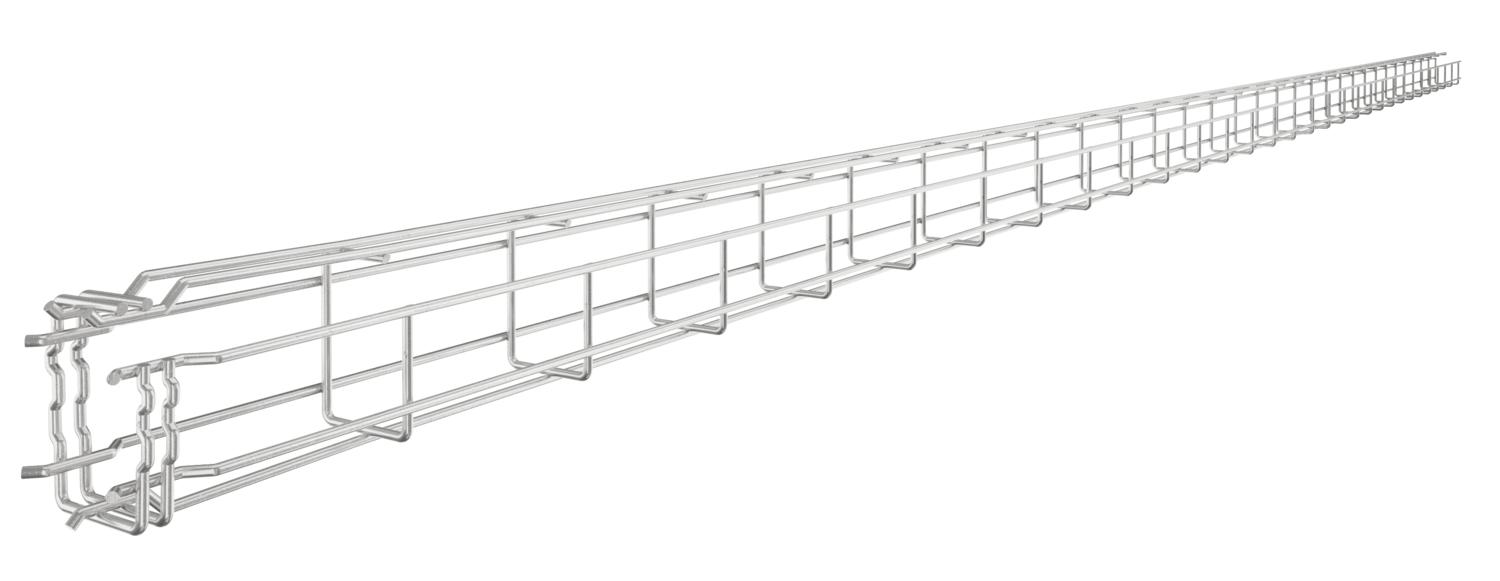

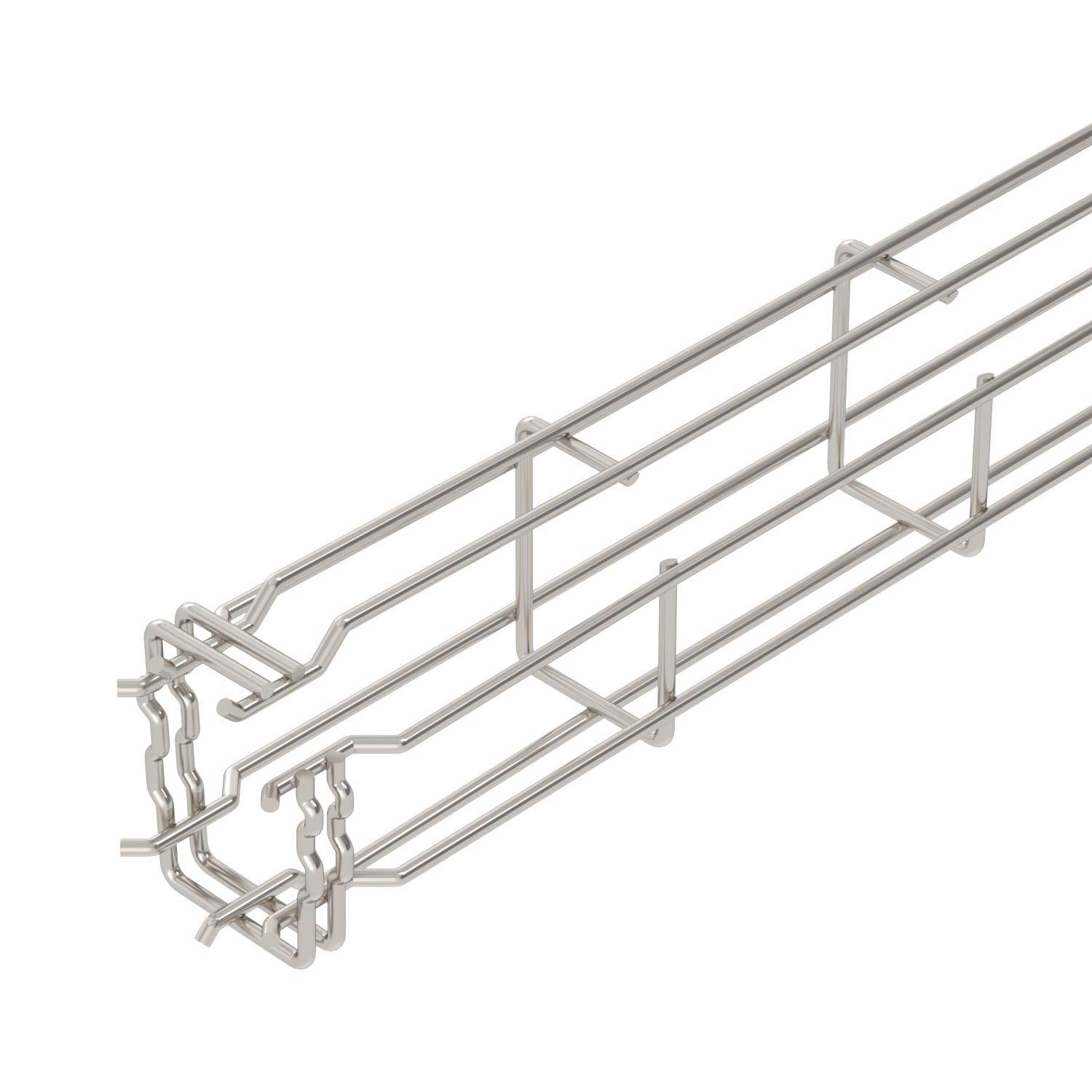

G-shaped mesh cable tray made of spot-welded steel wire with different side heights and widths.

Direct wall or ceiling mounting possible. Load capacity details regarding the different mounting methods are available upon request.


Magnetic shield insulation 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour stainless steel
Connector version Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate 4,0827 kg CO₂e / 1 Meter

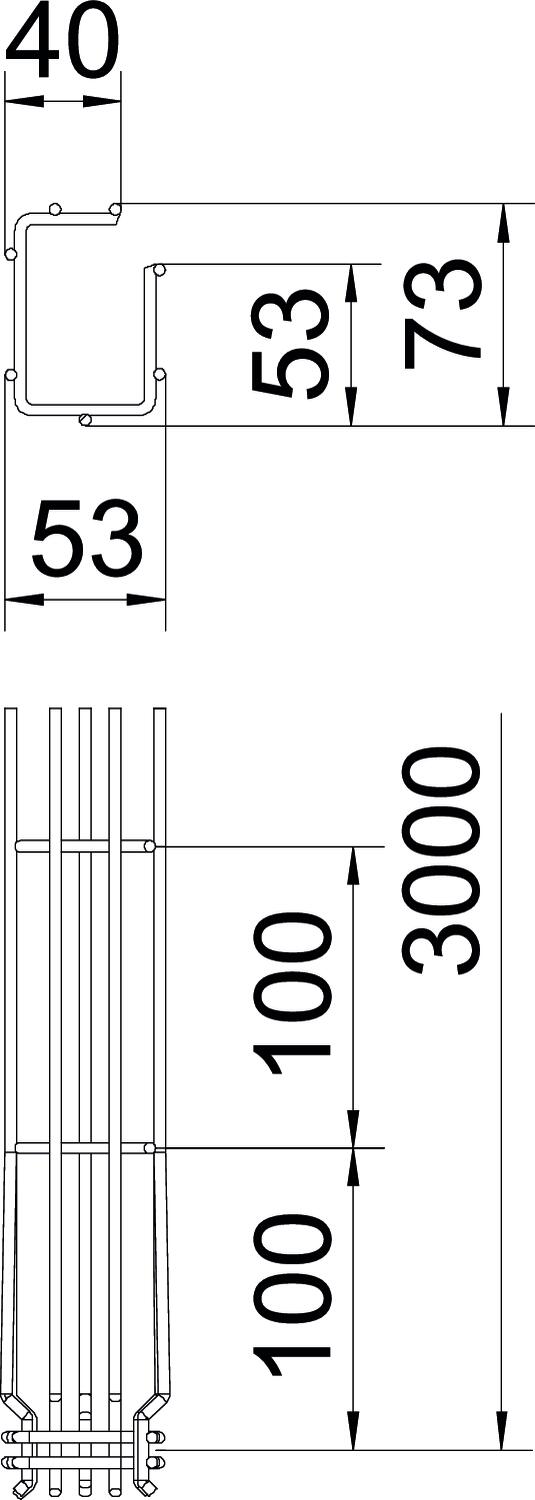

Dimension 75x50x3000
Dimension A 53 mm
Dimension B 53 mm
Dimension C 38 mm
Dimension H 73 mm
Height 2,95 in
Height 75 mm
Integrated partition Without
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions no
Material Stainless steel
Profile shape G-shaped
Rustproof steel, pickled yes
Screwless connector yes
Surface Bright, treated
Type of connector, cable support system Click fastening
Usable cross-section 2200 mm²
Usable cross-section 22 cm²
Wide-span version no
Width 1,97 in
Width 50 mm
Wire diameter 3,9 mm
All types

All types

Types Length Width Height Wire diameter Usable cross-section Maintain electrical functions Item no. Quantity SSU
G-GRM 75 50 A4 3000 mm 50 mm 75 mm 3.9 mm 22 cm² no 6005568
3 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Joint connector A4 Joint connector A4 GSV 34 A4 6016648
20 piece
Wall clamp and central hanger A4 Wall clamp and central hanger A4 WB GR A4 6017164
20 piece
