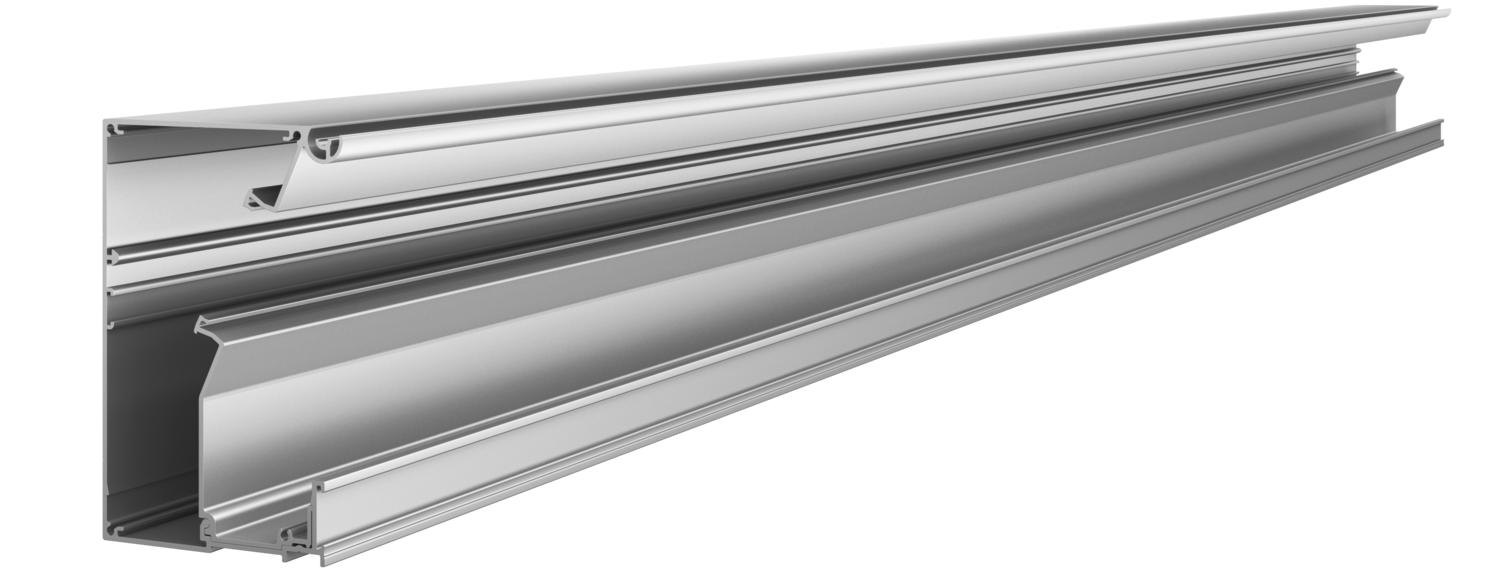

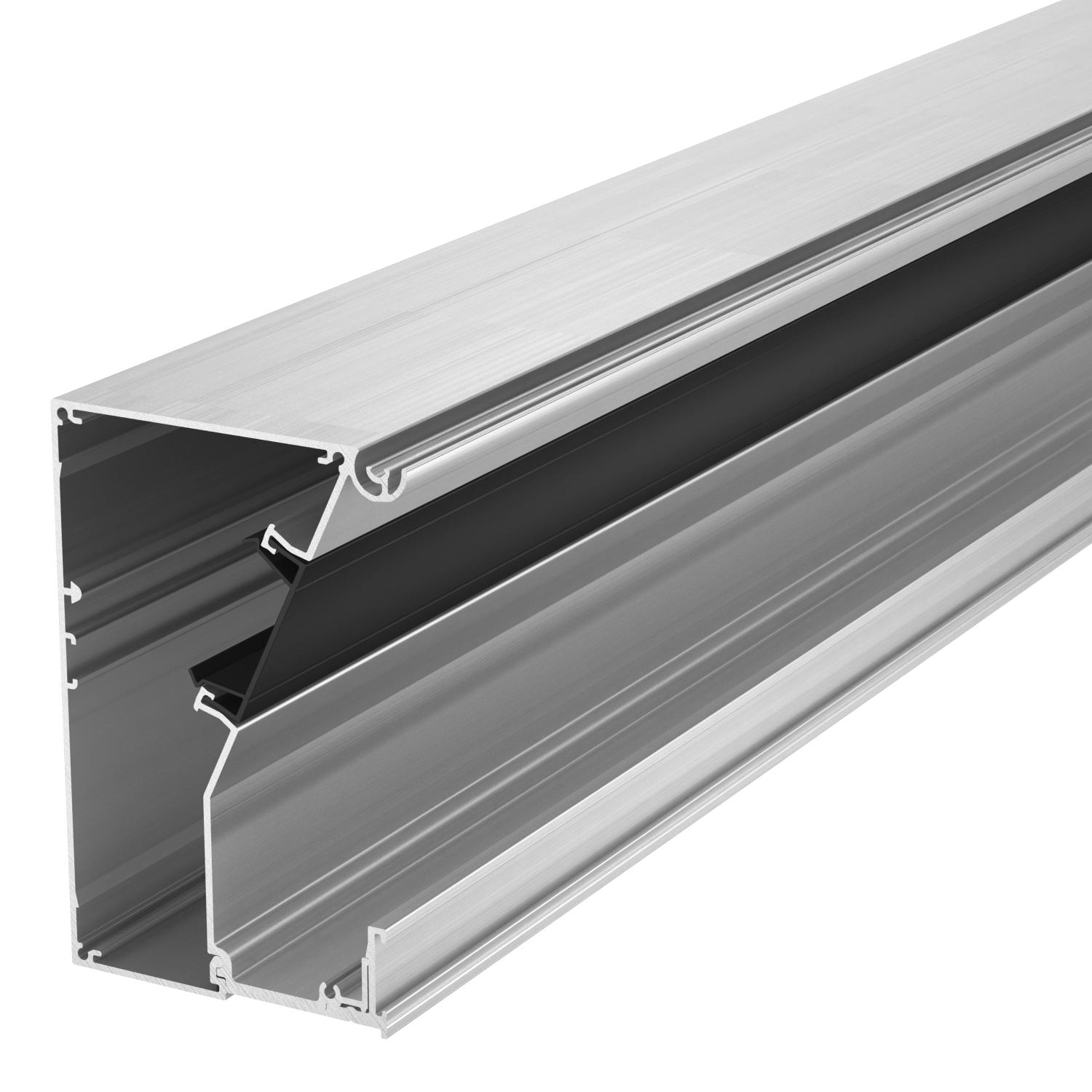

GAD design device installation trunking

Item no. 6115775 | EAN 4012195914075

6115775 / GAD UEL
2000 mm
Product description
Product description
Base to create design device installation trunking of the GAD series. 45 mm system opening for acceptance of Modul 45 switch and connection devices and appropriate PVC and aluminium covers of the Rapid 45 series. The trunking base can be completed with trunking covers in the "Swing", "Soft" or "Style" design. The GAD OTA cover adapters are essential and must be planned on the trunking section with a max. spacing of 50 cm. A GAD OTD spacer must be placed between the trunking covers. In the as-delivered state, the 45 mm system is closed off with a black trunking cover.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
Colour aluminium
Cover mounting type Internal
Cover supplied yes
Cover width 140 mm
CO₂ Footprint (GWP) Cradle-to-Gate 38,3439 kg CO₂e / 1 Meter

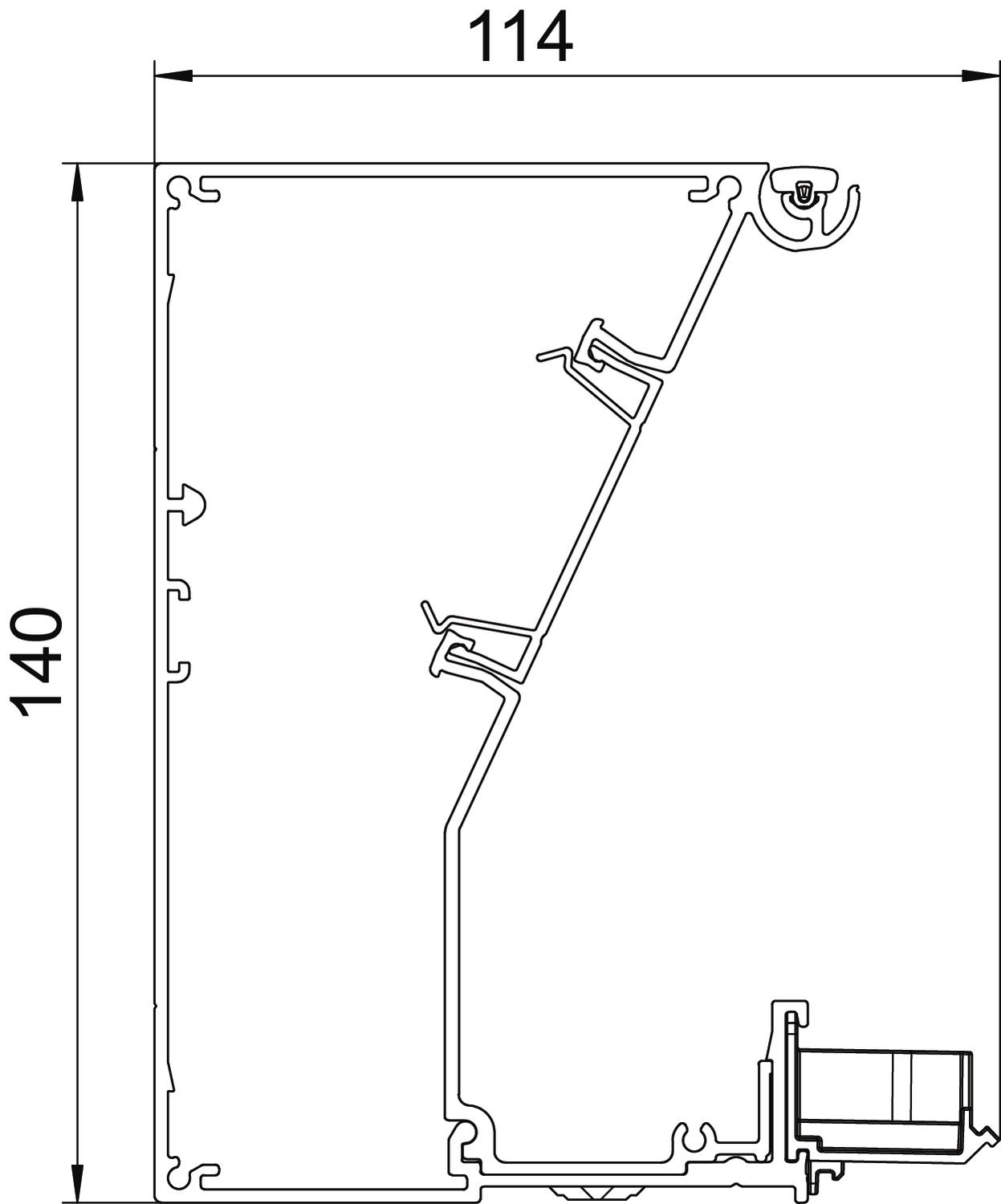

Dimension 114x140x2000
Duct connector no
Halogen-free yes
Height 114 mm
Length 2000 mm
Material Aluminium
Mounting perforation in base no
Number of covers 1
Number of insertable partitions 1
Protective film yes
Rear panel version (inner side) Continuous C profile
Rectangular shape no
Surface Anodised
Symmetrical no
Usable cross-section 5880 mm²
Width 140 mm
All types

All types

Types Length Item no. Quantity SSU
GAD UEL 2000 mm 6115775
2 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Partition for WDK trunking, trunking height 40 mm Partition for WDK trunking, trunking height 40 mm 2371 40 6023096
60 m

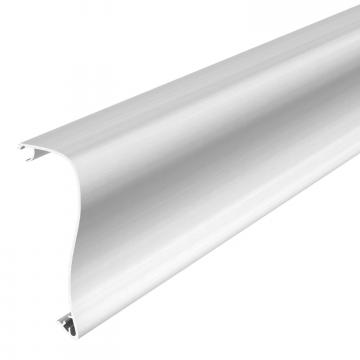

Swing trunking cover, design trunking Swing trunking cover, design trunking OT GAD Swing EL 6115825
1 piece

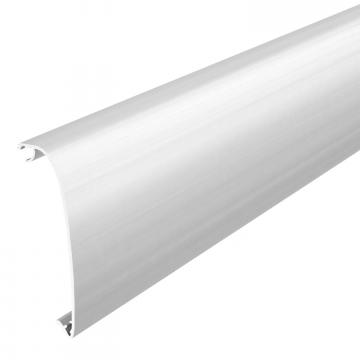

Soft trunking cover, design trunking Soft trunking cover, design trunking OT GAD Soft EL 6115835
1 piece

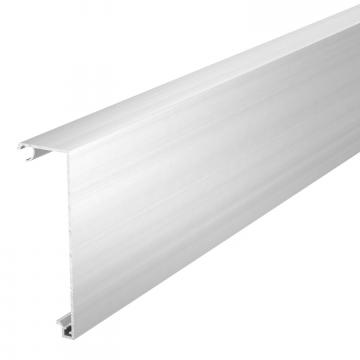

Style trunking cover, design trunking Style trunking cover, design trunking OT GAD Style EL 6115845
1 piece

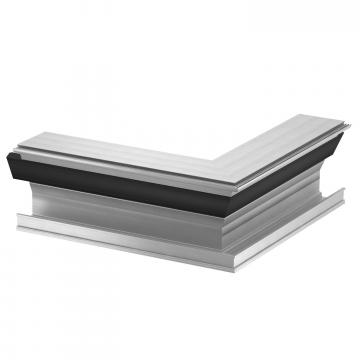

External corner, design trunking External corner, design trunking GAD AEL 6115789
1 piece

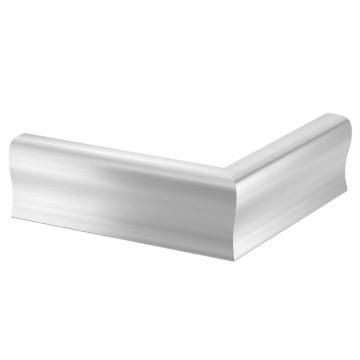

External corner cover, Swing External corner cover, Swing OT A Swing EL 6115851
1 piece

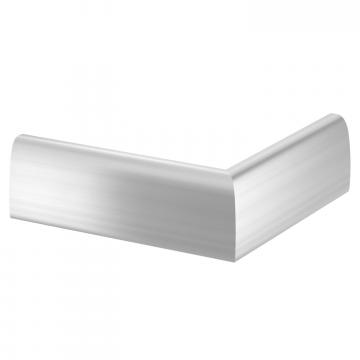

External corner cover, Soft External corner cover, Soft OT A Soft EL 6115855
1 piece

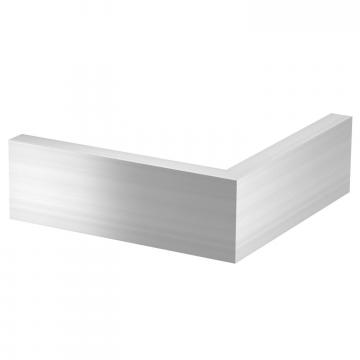

External corner cover, Style External corner cover, Style OT A Style EL 6115865
1 piece

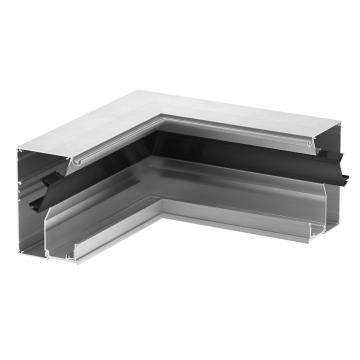

Internal corner, design trunking Internal corner, design trunking GAD IEL 6115795
1 piece

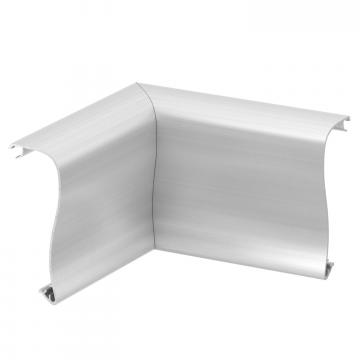

Internal corner cover, Swing Internal corner cover, Swing OT I Swing EL 6115875
1 piece

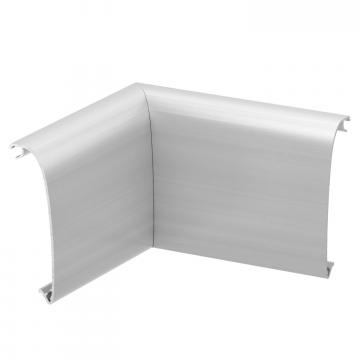

Internal corner cover, Soft Internal corner cover, Soft OT I Soft EL 6115885
1 piece

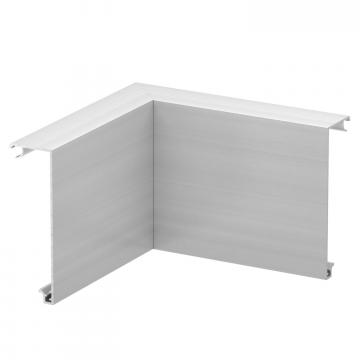

Internal corner cover, Style Internal corner cover, Style OT I Style EL 6115895
1 piece

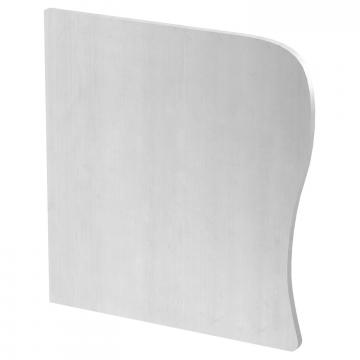

End piece, Swing, left End piece, Swing, left GAD EL Swing EL 6115915
1 piece

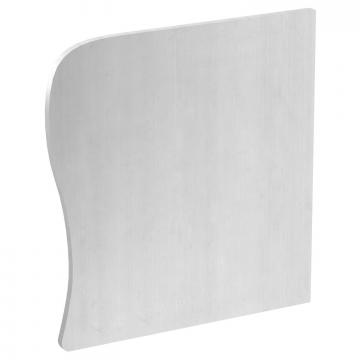

End piece, Swing, right End piece, Swing, right GAD ER Swing EL 6115925
1 piece

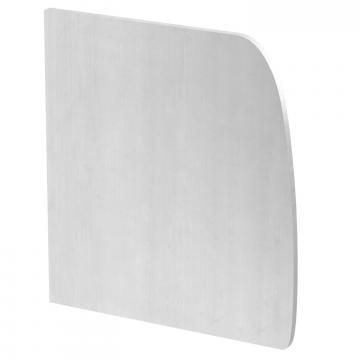

End piece, Soft, left End piece, Soft, left GAD EL Soft EL 6115935
1 piece

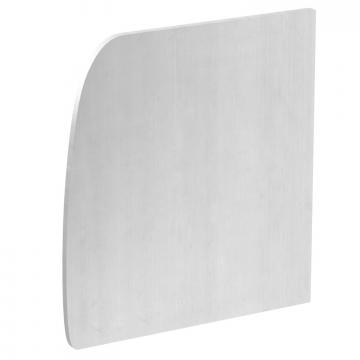

End piece, Soft, right End piece, Soft, right GAD ER Soft EL 6115945
1 piece

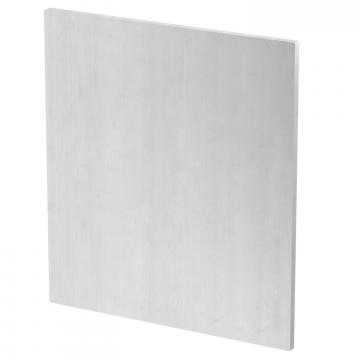

End piece, Style, left End piece, Style, left GAD EL Style EL 6115955
1 piece

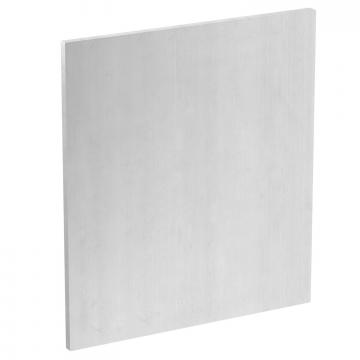

End piece, Style, right End piece, Style, right GAD ER Style EL 6115965
1 piece

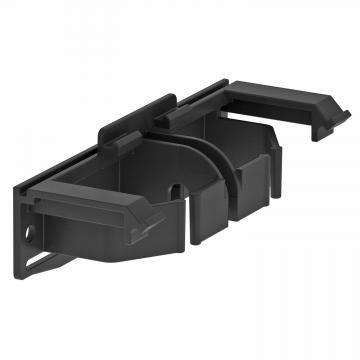

Cover adapter Cover adapter GAD OTA 6115975
5 piece
Spacer Spacer GAD OTD RW 6115980
10 piece
Spacer Spacer GAD OTD LGR 6115982
10 piece

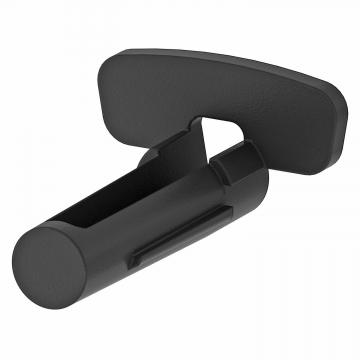

Spacer Spacer GAD OTD SW 6115985
10 piece

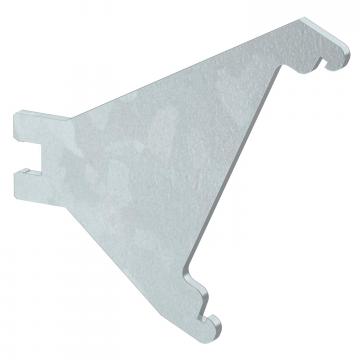

Stabiliser plate Stabiliser plate GAD SB 6115995
10 piece

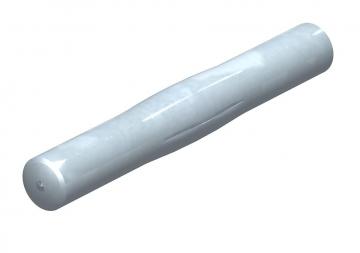

Joint connector Joint connector GEK-AKU45 6116752
10 piece
Protective conductor connection bracket Protective conductor connection bracket 8AWR 6288704
10 piece
Downloads

Download

Download

EU declaration of conformity GAD UEL / 6115775 , 0.13MB , pdf
Download
UK Declaration of Conformity GAD UEL / 6115775 , 0.14MB , pdf
Download

Download

No invitation to tender text is available for this product.
