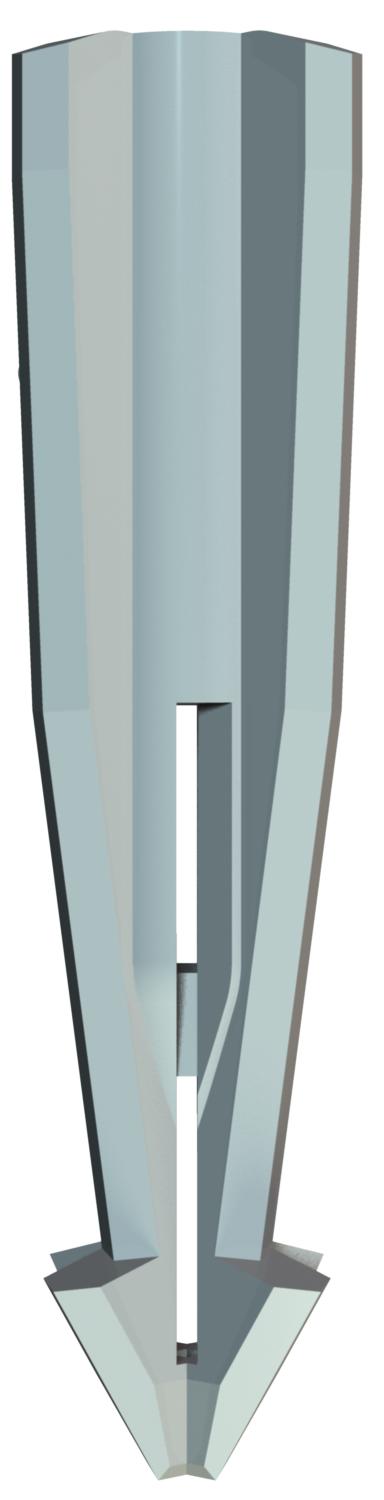

Gas concrete anchor 6
Item no. 2347229 | EAN 4012195828198
- Product description
-
Product descriptionThe anchor can be knocked directly into the porous concrete (gas concrete resistance class G2). With a resistance class of G4 or greater, a 5 or 6 mm hole should be pre-drilled.
Screw length: Component thickness + 40 mm (6 mm) / 55 mm (8 mm).
-
- Technical data
-
Technical data

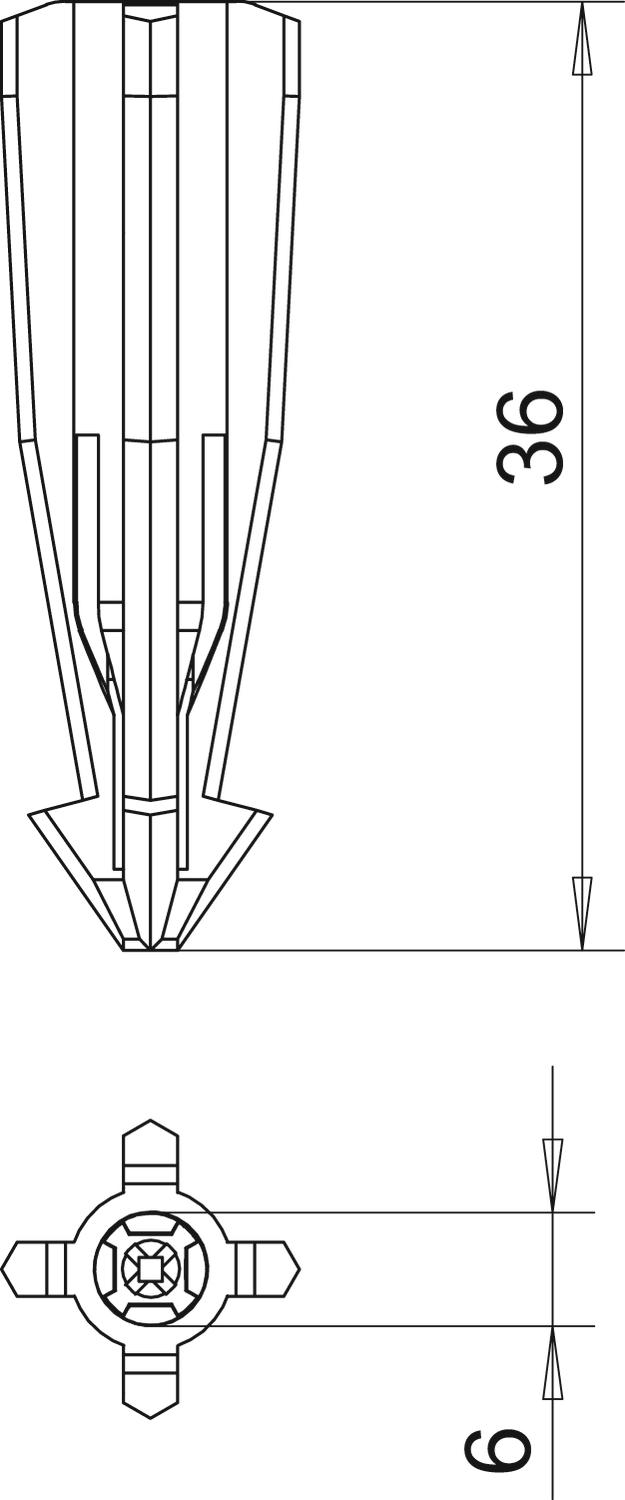

Colour Light grey Diameter 6 mm Dimension 6x35mm Dimension D 6 mm Dimension L 35 mm Drill hole depth 41 mm Drill hole diameter, min. 6 mm Halogen-free yes Length 35 mm Material Polyamide Suitable for fastening with cable ties no Suitable for hexagonal wood screw yes Suitable for screw diameter, max. 5 mm Suitable for screw diameter, min. 3,5 mm With bolts no - All types
- Downloads
-
Data sheet 910 GD 6x35 / 2347229 , 0.19MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 910 GD 6x35 / 2347229 , 0.06MB , pdf
