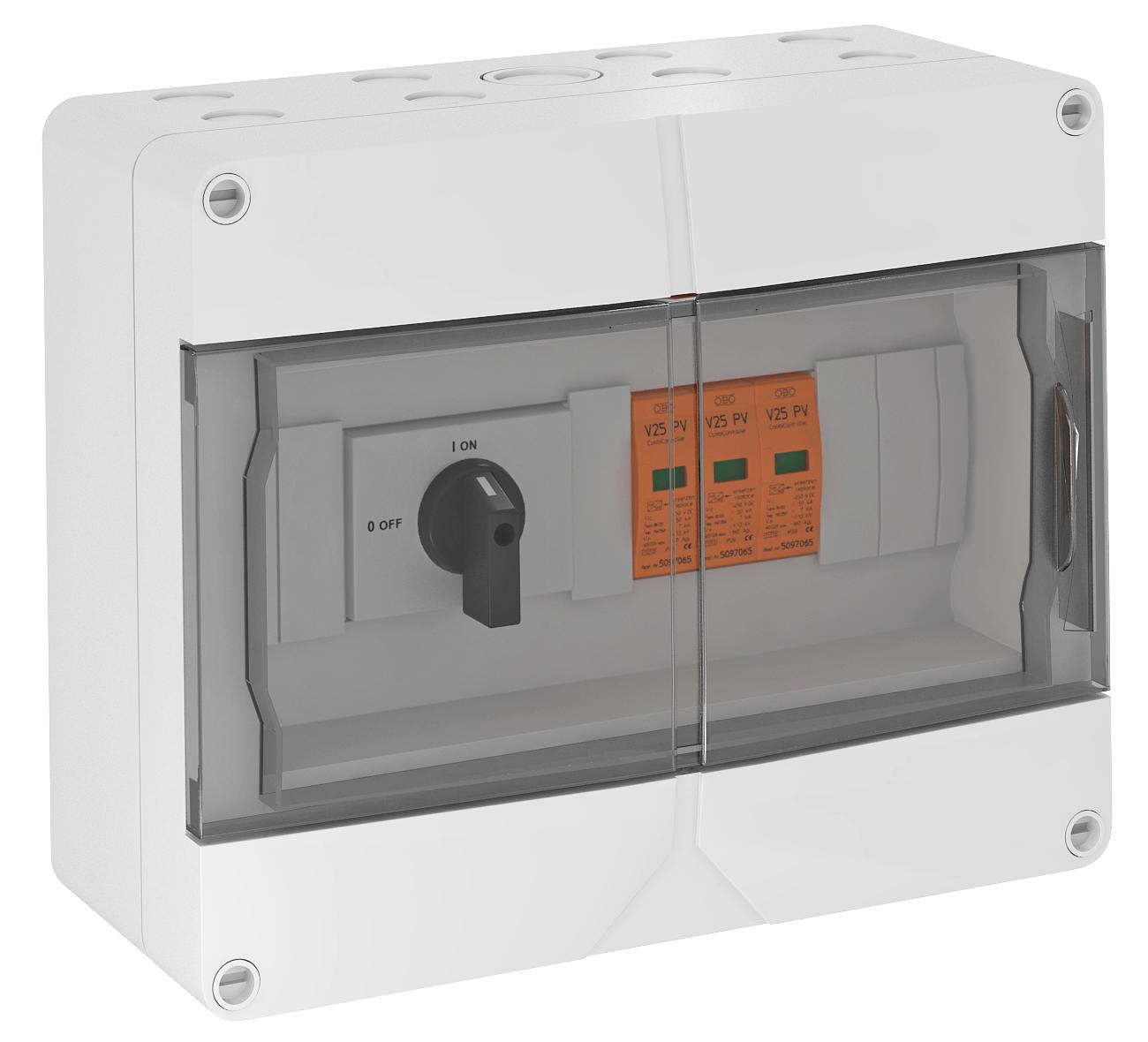

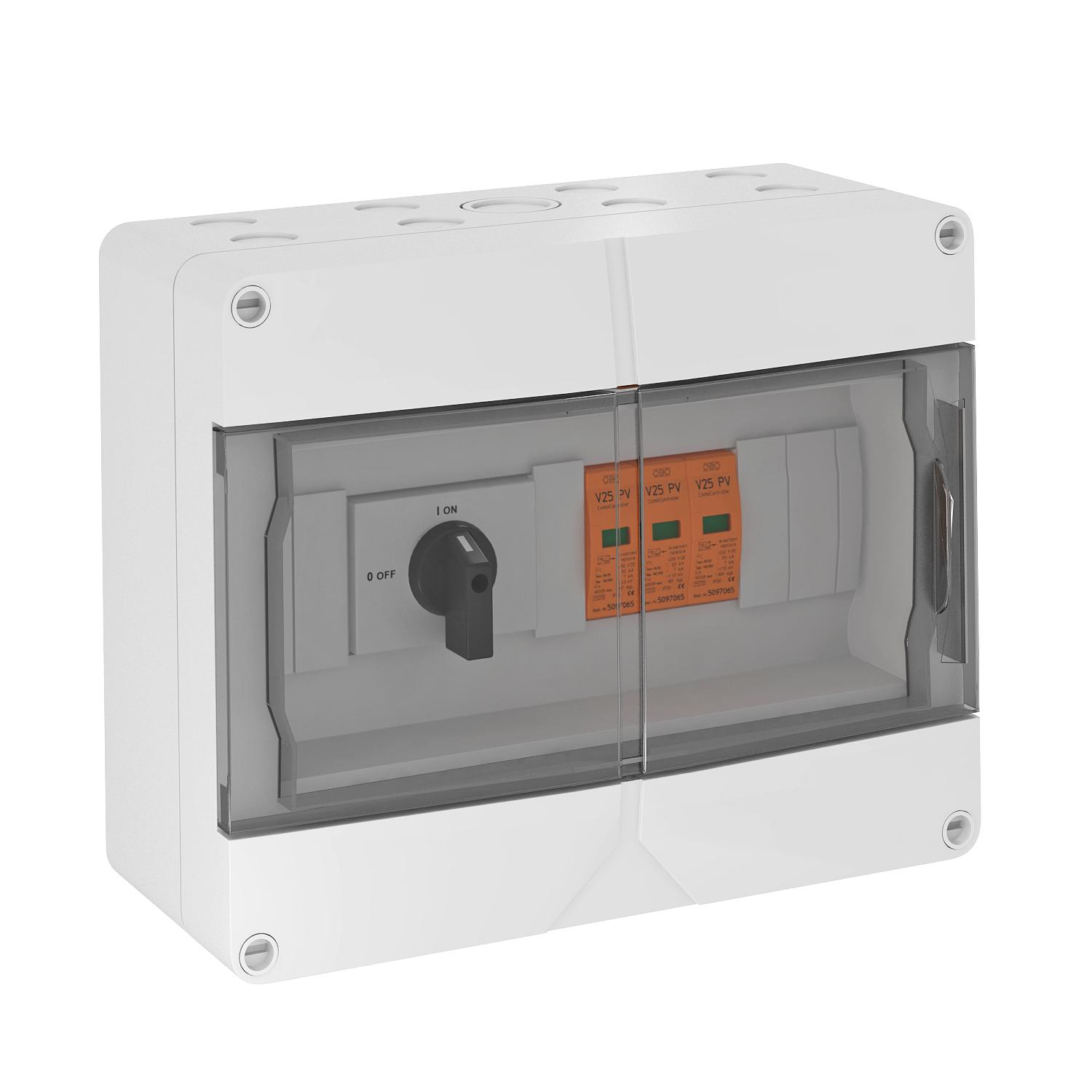

Generator connection box, type 1+2, to 900 V DC with disconnection switch (32 A) 1 x 1 string IP65

Generator connection box, type 1+2, to 900 V DC with disconnection switch (32 A) 1 x 1 string

Item no. 5088635 | EAN 4012195981176

Item no. / Types	5088635 / VG-BC DC-TS900

Protection rating	IP65

Product description

Product description

System solution for circuit breaker photovoltaic inverter with 1 MPP tracker

• Varistor arrester, connectable with cut-off unit in error-resistant Y circuit to VDE 0100-712 (50539-12)

• Low DC protection level: < 3.0 kV (Voc max = 900 V DC with V25-B+C/0-450PV)

• Circuit breaker (1,000 V; 32 A) for secure switch-off of the DC string cable

• Per protection device there is 1 terminal up to 6 mm² pre-mounted in the housing, up to 30 A DC per terminal

• Pre-mounted in polycarbonate housing (IP65), UV-resistant for use outside, including cable gland kit

For DC protection of the inverter in photovoltaic systems.

If there is a danger of condensation forming through wind, ice, temperature or sunlight, further measures may be necessary!

Technical data

Connectivity options

Anschlussart Generatoranschlusskasten	Tension spring terminal
Blow-out	no
Cable type for surge protection devices	Power cable DC (PV)
Colour	Light grey; RAL 7035
Conductor cross-section, rigid (single-wire/multiwire), max.	6 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	0,5 mm²
DC network form	yes
Depth	122 mm
Dimension	900V DC
Entries per MPPT	1
Equipped with load-break switch	yes
Exits per MPPT	1
Height	200 mm
Housing material surge protection components	PC
Installation type	Pre-mounted in the housing
IT network form	no
Lightning protection zone LPZ	0→2
Lightning surge current (10/350 μs)	7 kA
Max. Input current per string	30 A
Max. Input voltage DC	900 V
Max. mains-side overcurrent protection	160
Max. Output current	30 A
Maximum back-up fuse	160 A
Maximum continuous voltage DC	900
Maximum discharge current (8/20 μs)	50 kA
Monitoring function	no
Network form	DC
Nominal discharge current (8/20 µs)	30 kA

Number of cable entries	16
Number of inputs	1
Number of MPPTs	1
Number of string inputs	1
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Other network form	no
Permitted temperature range, max.	40 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP65
Protection rating IK code	IK07.
Remote signalling	no
Response time	<25 ns
Signalling on device	Visual
SPD to EN 61643-11	Type 1+2
SPD to IEC 61643-1	Class I+II
Test class, type 1	yes
Test class, type 2	yes
Test class, type 3	no
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Type of entry	Gland
Version for	Type 1+2 and Benedikt LS32-SMA-A4 DC isolator
Width	250 mm
