GES6-2 with UT3 45

Item no. 7429588 | EAN 4012196086672

Product description

Product description

Service outlet with all necessary system accessories for direct installation in screed floors in interior areas.

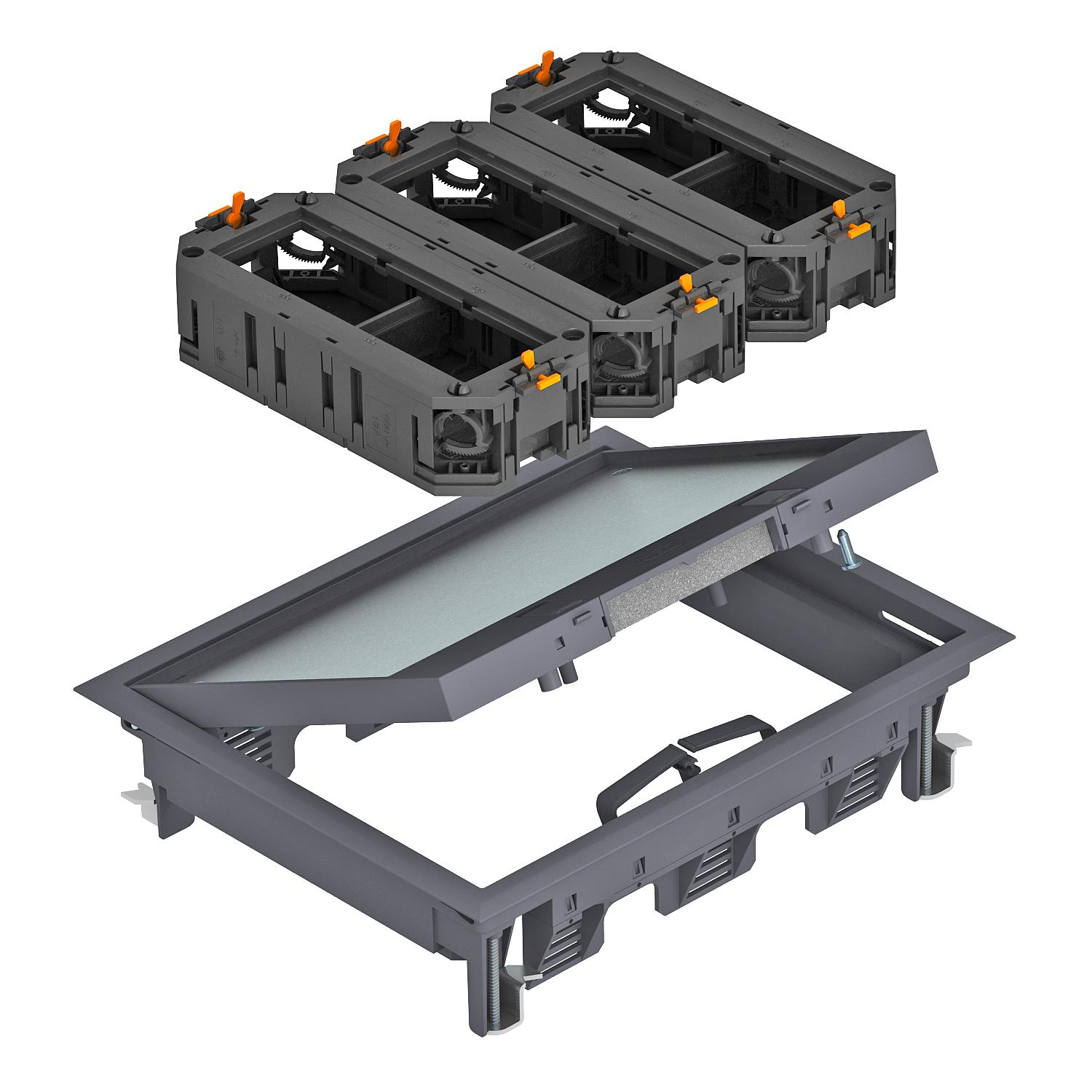

The scope of delivery contains a service outlet of nominal size 6 with universal fastening bracket and three universal supports, each for three Modul 45® devices.

Service outlet with carpet protection frame, hinged lid and cord outlet made of polyamide in the colour RAL 7011. 10 mm floor covering recess in the hinged lid (changeable to 3, 5 or 8 mm).
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Colour Iron grey; RAL 7011
Floor covering thickness 5 mm
Material Polyamide
Opening mechanism Locking slider
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK08
All types

All types

Types Item no. Quantity SSU
GES6-2 KU 7011 7429588
1 piece
Downloads

Download

Download

Download

No invitation to tender text is available for this product.
