GES9M-2 service outlet with handle clamp

Item no. 7405371 | EAN 4012196028740

7405371 / GES9M-2 10U
5 mm
Product description
Product description

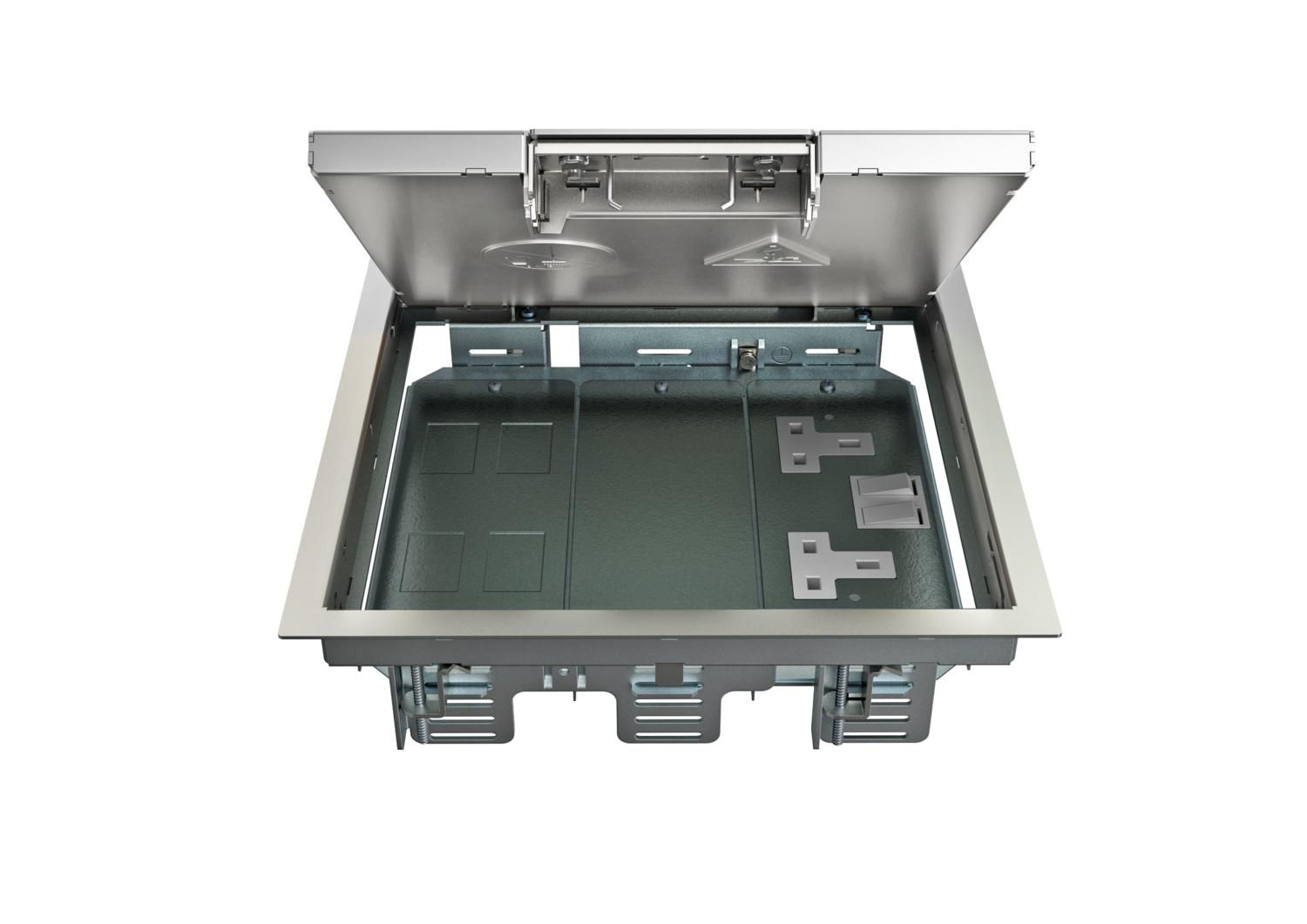

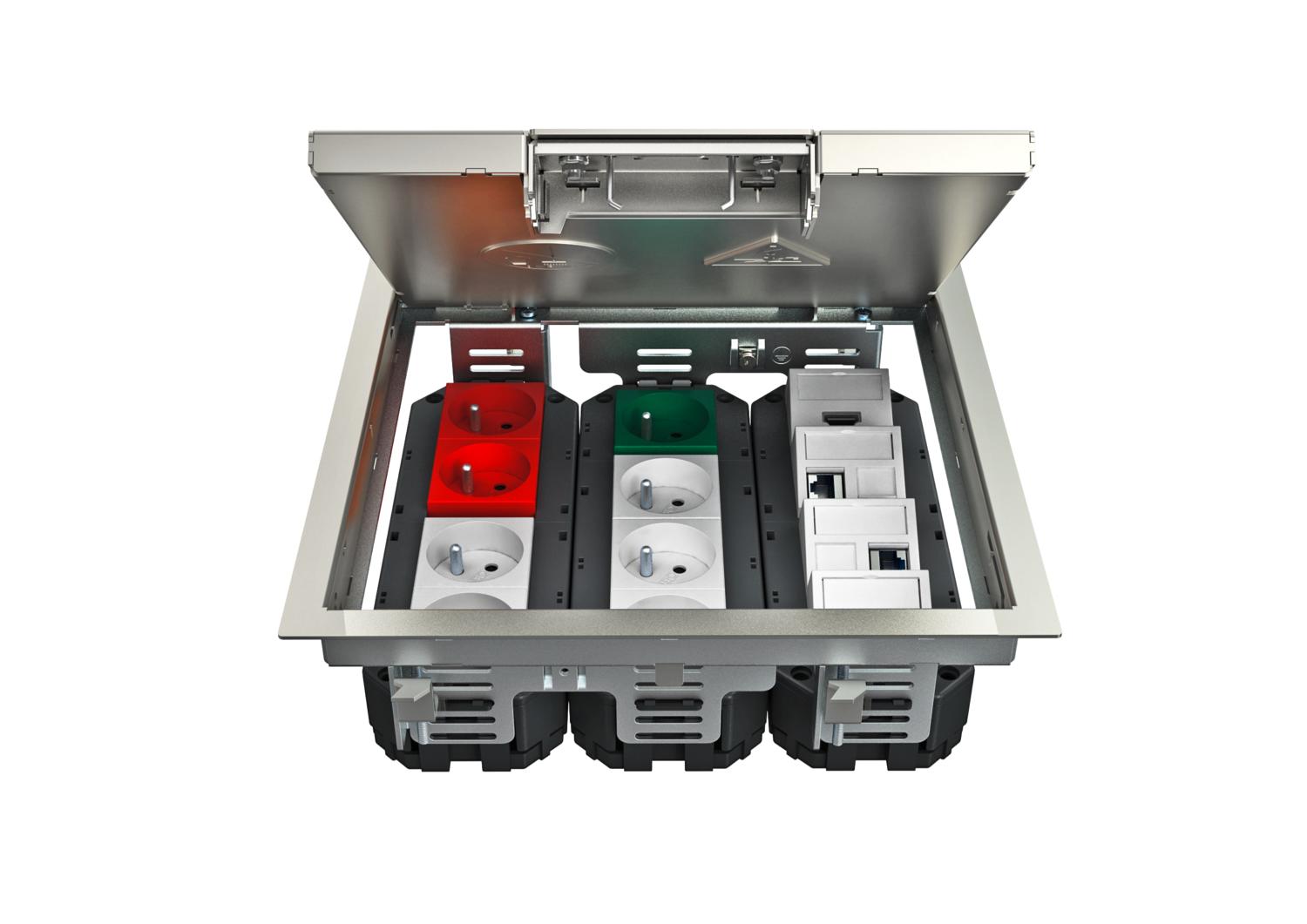

Service outlet with handle clamp for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in trunking systems and system floors for indoor use.

Locking ladder made of galvanised sheet steel. The floor covering thickness is set to 5 mm, adjustable to 10 mm if necessary.

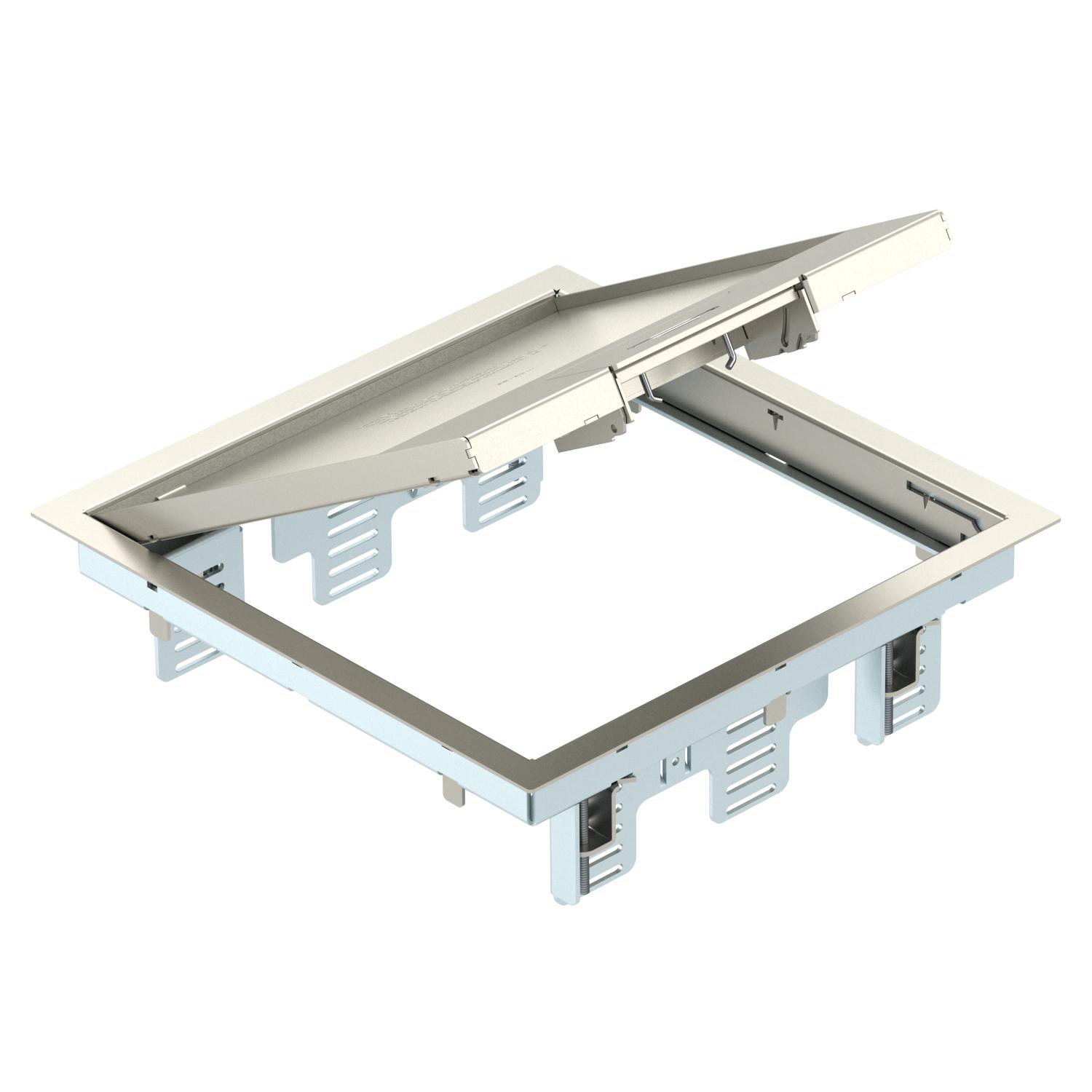

Service outlet with handle clamp, 3-compartment, for the installation of MT9 mounting support. 3 type APMT5 cover plates can be installed.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cable outlet version Swivellable cord outlet
Device support to accept mounting boxes yes

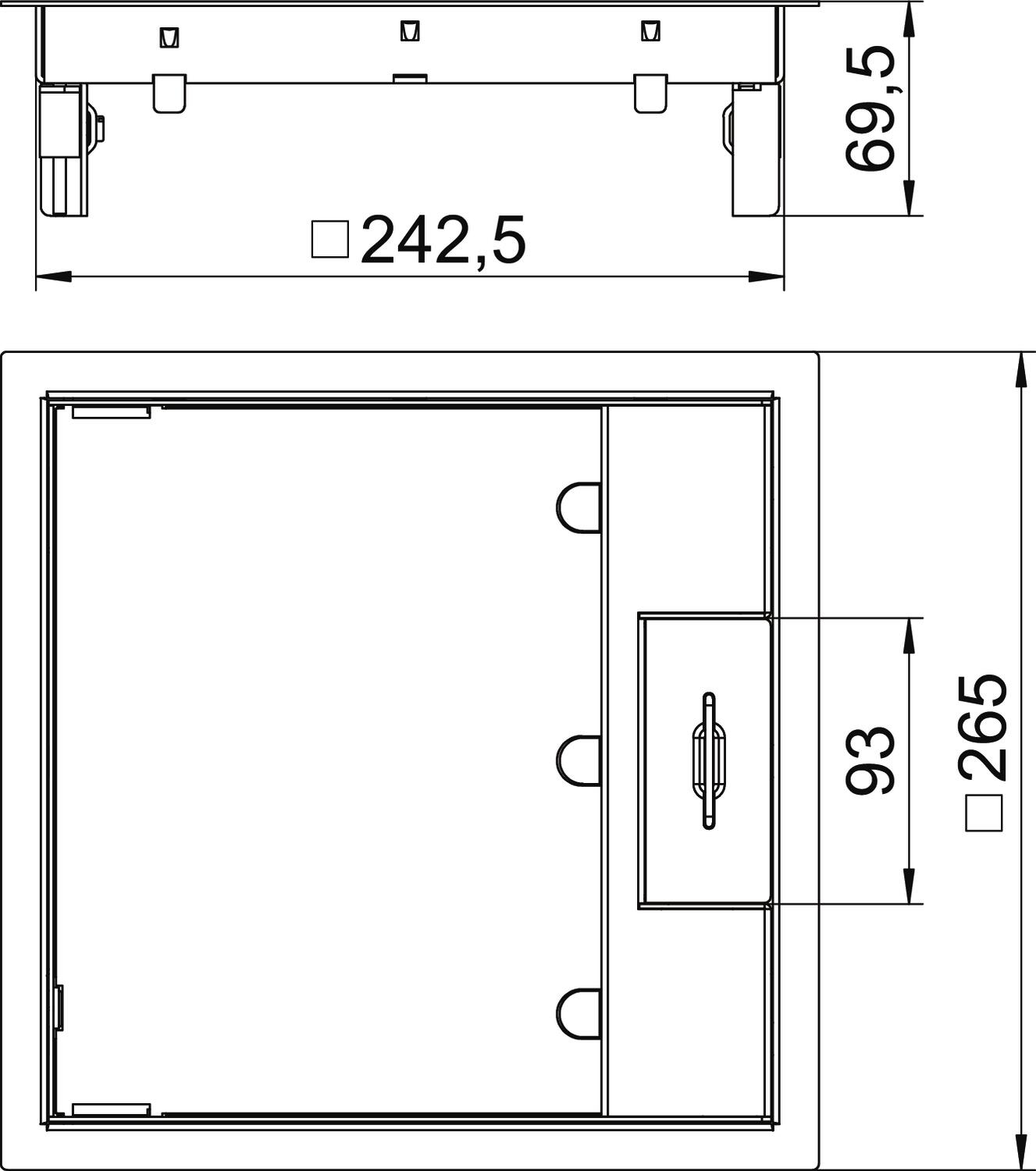

Dimension 266x266x69
Floor care Dry
Floor covering protection frame yes
Floor covering thickness 5 mm
Floor height, min. 78 mm
Frame version Carpet protection frame
Heavy-duty version no
Height 67 mm
Installation depth 78 mm
Installation system type MT4 / GB3
Length 265 mm
Length of external dimensions 265 mm
Length of installation dimensions 244 mm
Material Stainless steel
Nominal size for device installation units 9
Number of installable devices 12
Number of mounting boxes 3
Opening mechanism Handle
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Seal installation option no
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for screed-flush closed underfloor ducts no
Suitable for underfloor ducts yes
Suitable for wet care no
Version for Square
Vertical load, large area to 5,000 N
Vertical load, small area to 3,000 N
Wide external dimensions 265 mm
Wide installation dimensions 244 mm
Width 265 mm
With floor covering recess yes
All types

All types

Types Floor covering thickness Item no. Quantity SSU
GES9M-2 10U 5 mm 7405371
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Ladder extensions Ladder extensions GES RV 7407536
20 piece
Support plate 2 x type C for mounting support Support plate 2 x type C for mounting support MTM 2C 7407788
15 piece
Mounting support for data technology connection sockets, system length 208 mm Mounting support for data technology connection sockets, system length 208 mm MTU 3 7407840
10 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 45 4 7408727
5 piece
