GESRA9/10 service outlet with handle clamp

Item no. 7405580 | EAN 4012195104445

7405580 / GESRA9 10U
10 mm
Product description
Product description
Service outlet with handle clamp for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct systems and system floors for indoor use.


Service outlet with handle clamp, 3-compartment, for the installation of MT9 mounting support. Three type APMT5 cover plates can be installed.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Approvals VDE
Device support to accept mounting boxes yes

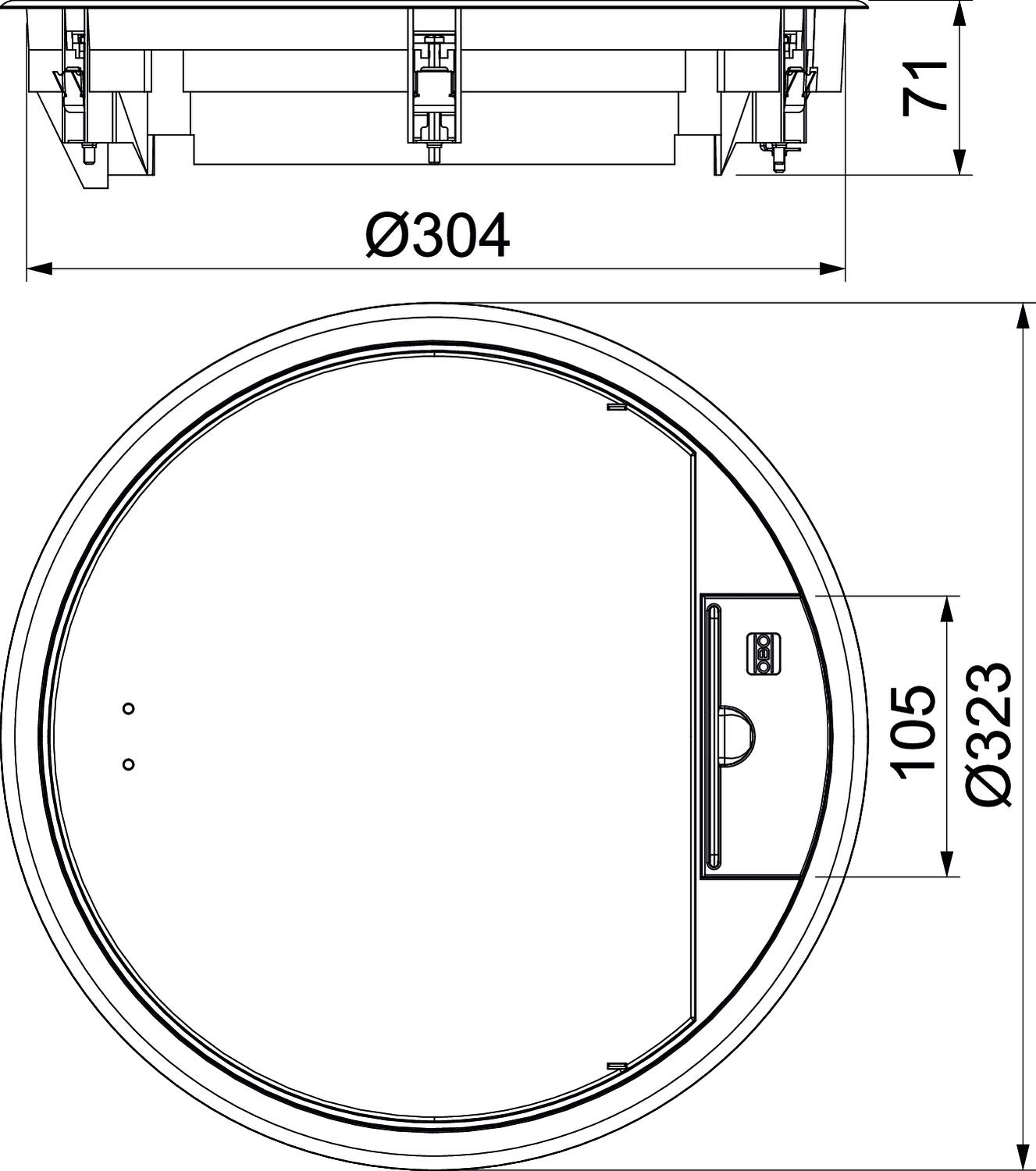

Dimension Ø323x70
External diameter 323 mm
Floor care Dry
Floor covering protection frame yes
Floor covering thickness 10 mm
Floor height, min. 78 mm
Heavy-duty version no
Installation depth 78 mm
Installation diameter 305
Installation system type UT4
Material Cast aluminium
Nominal size for device installation units R9
Number of installable devices 12
Number of mounting boxes 3
Opening mechanism Handle
Protection rating (IP) when unused IP40
Protection rating (IP) when used IP20
Protection rating IK code IK10
Seal installation option no
Suitable for cavity floor installation yes
Suitable for raised floor installation yes
Suitable for screed-covered underfloor ducts yes
Suitable for underfloor ducts yes
Suitable for wet care no
Version for Round
Vertical load, large area to 5,000 N
Vertical load, small area to 3,000 N
With floor covering recess yes
All types

All types

Types Floor covering thickness Item no. Quantity SSU
GESRA9 10U 10 mm 7405580
2 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Ladder extensions Ladder extensions GES RV 7407536
20 piece
Support plate 2 x type C for mounting support Support plate 2 x type C for mounting support MTM 2C 7407788
15 piece
Mounting support for data technology connection sockets, system length 165 mm Mounting support for data technology connection sockets, system length 165 mm MTU 2 7407836
10 piece
Mounting support for data technology connection sockets, system length 208 mm Mounting support for data technology connection sockets, system length 208 mm MTU 3 7407840
10 piece
UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm UT3 universal support, with cover plate for Modul 45® devices, system length 165 mm UT3 45 3 7408723
5 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm UT4 45 4 7408727
5 piece
Downloads

Download

EU declaration of conformity GESRA9 10U / 7405580 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
