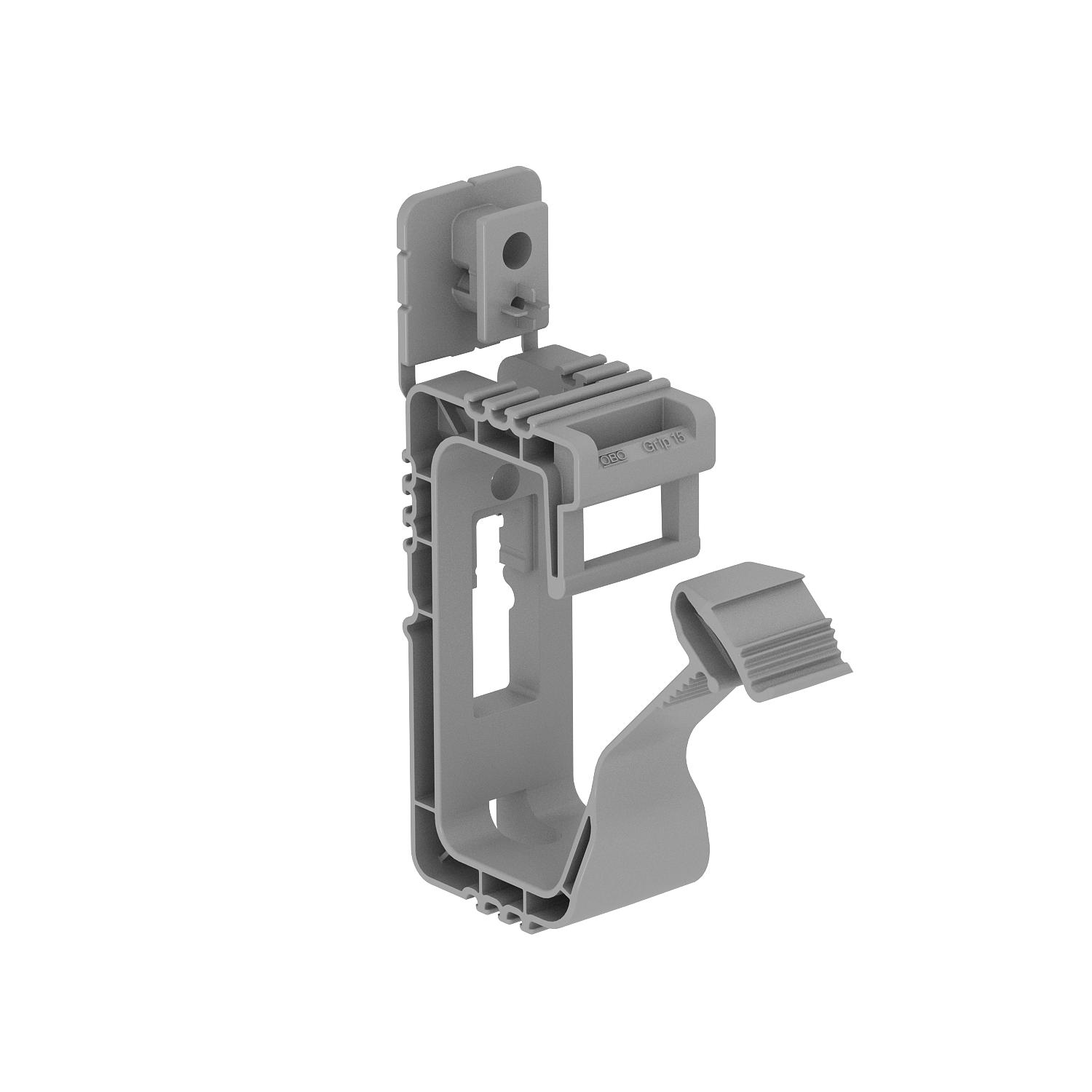

Grip 20 flame-resistant
Item no. 2205412 | EAN 4012195651659
- Product description
-
Product descriptionCable tidy for general use, suitable for wall and ceiling mounting. The moulded fastening element can be fastened using knock-in anchors or a gas pressure nail gun.
Flame-resistant version, stone grey, to DIN VDE 0471/DIN IEC 695 Part 2-1, test temperature 960°C. The recommended fastening spacing when assigned fully is 250–400 mm.
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
-
- Technical data
-
Technical data
Breaking load 0,32 kN Colour Stone grey; RAL 7030 Dimension 20x NYM3x1,5 Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 960 °C Flame-resistant version yes Halogen-free yes Maintain electrical functions no Material Polypropylene No. of conductors NYM 3 x 1.5 20 With anchor no - All types
- Downloads
-
Data sheet 2031 F 20 / 2205412 , 0.20MB , pdfEU declaration of conformity 2031 F 20 / 2205412 , 0.10MB , pdfREACH Declaration of conformity 2031 F 20 / 2205412 , 0.12MB , pdfRoHS Declaration of conformity 2031 F 20 / 2205412 , 0.12MB , pdfMounting instructions Grip M grouped support 2031 , 1.03MB , pdf
