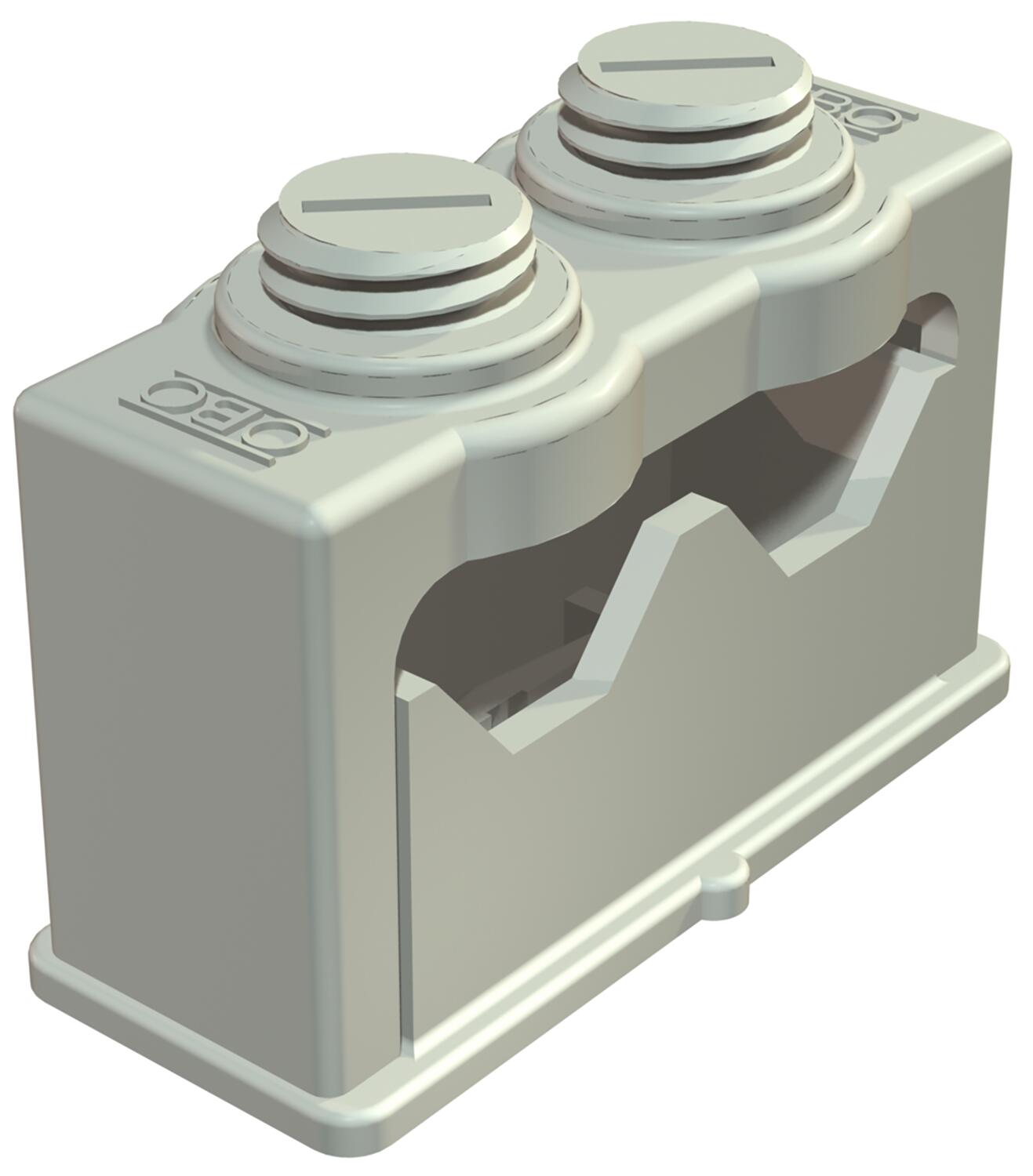

Grip ISO clip, double 16 | 24 | Light grey; RAL 7035

Grip ISO clip, double

Item no. 2107031 | EAN 4012195195672

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

Solid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.

Technical data

Technical data

Clamping range D, max.	24 mm
Clamping range D, min.	16 mm
Colour	Light grey; RAL 7035

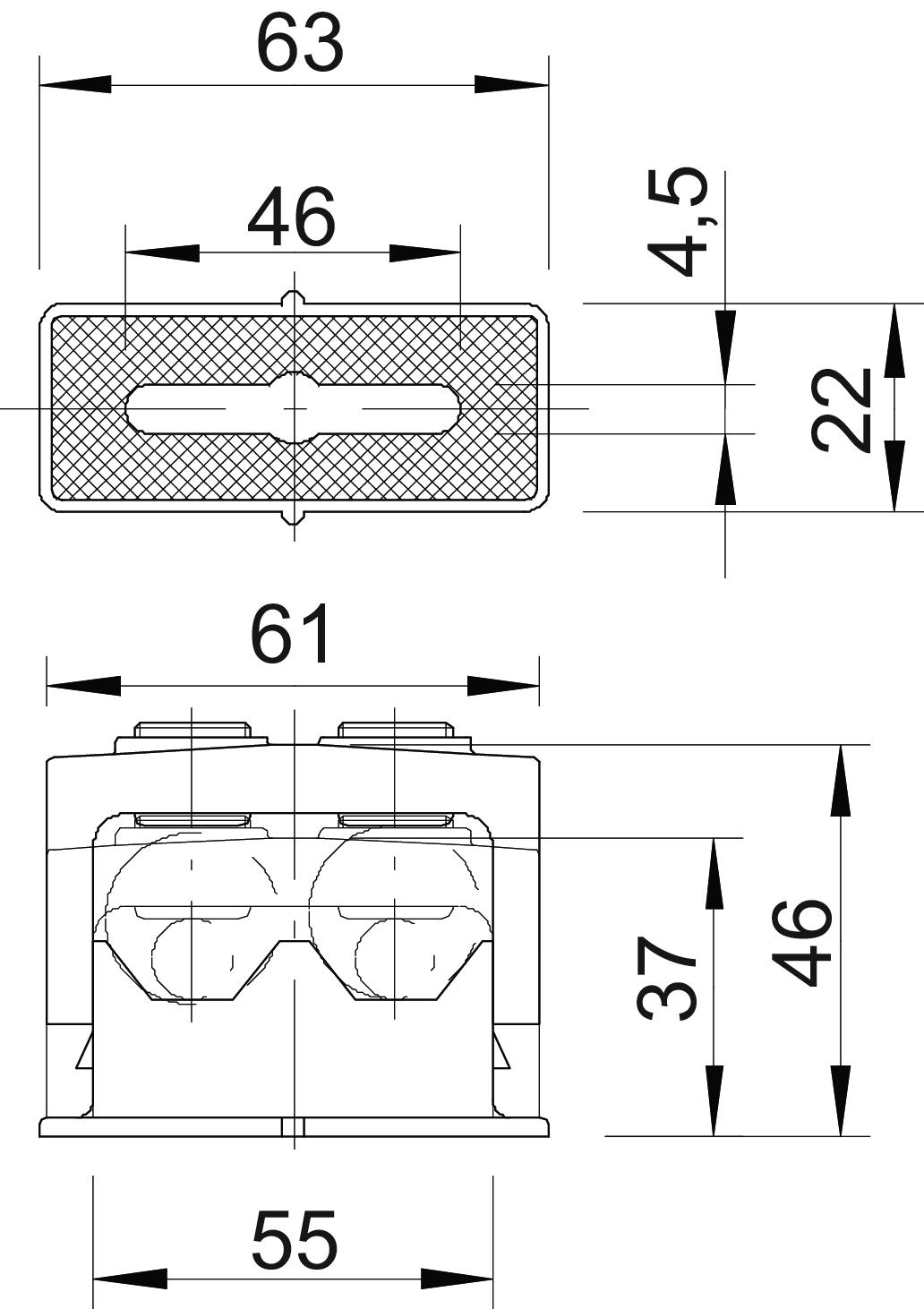

Dimension	16-24mm
Dimension a	63 mm
Dimension a1 (mm)	46 mm
Dimension b	22 mm
Dimension b1	4,5 mm
Dimension c	61 mm

Dimension d	37 mm
Dimension e	46 mm
Dimension f	55 mm
Expandable	no
Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Number of cables/pipes	2
