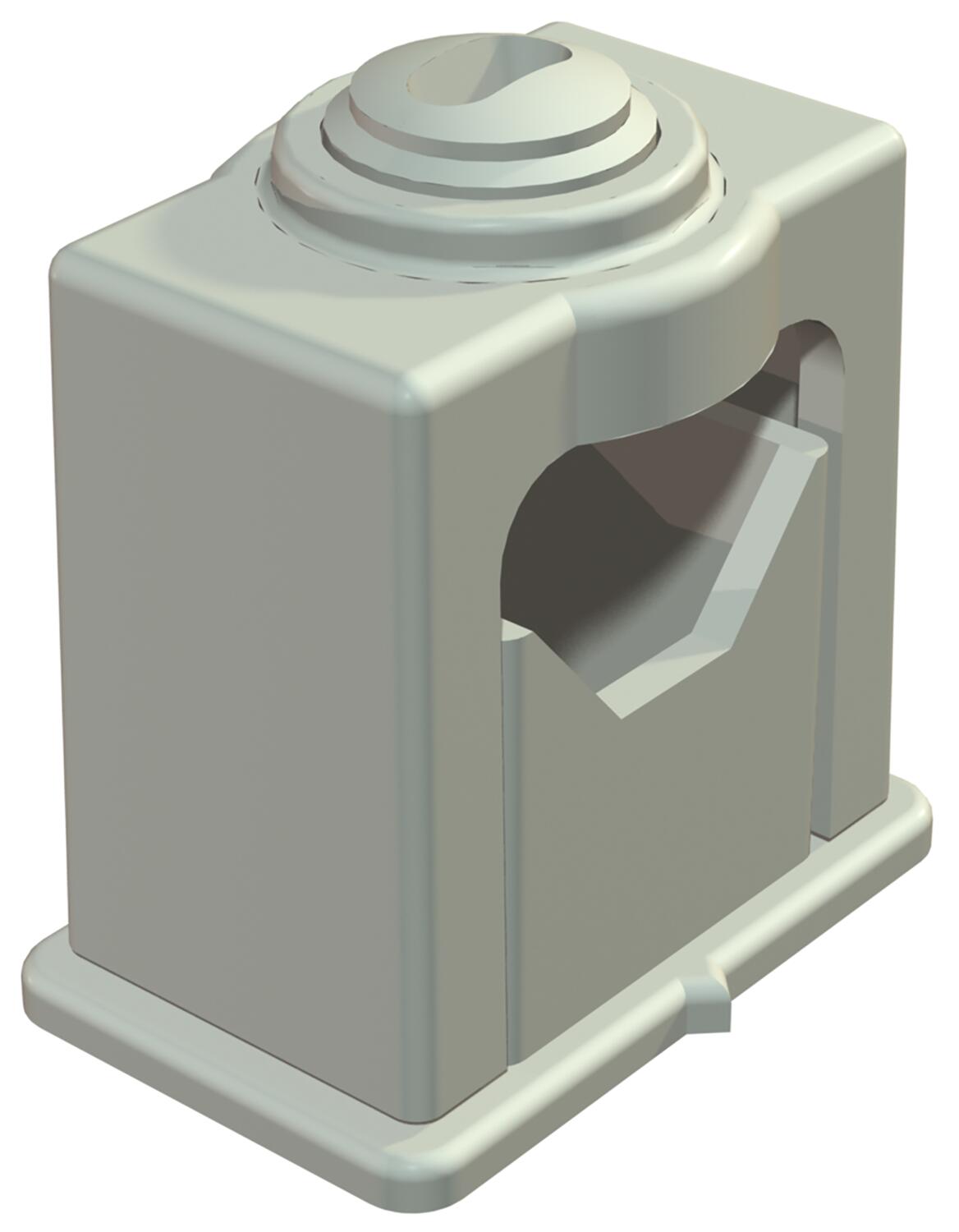

Grip ISO clip, single

Item no. 2105039 | EAN 4012195195498

Light grey; RAL 7035
Product description
Product description
Solid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Clamping range D, max. 24 mm
Clamping range D, min. 16 mm
Colour Light grey; RAL 7035
Dimension 16-24mm
Dimension a 35 mm
Dimension a1 (mm) 20 mm
Dimension b 22 mm
Dimension b1 4,2 mm
Dimension c 37 mm
Dimension d 36 mm
Dimension e 44 mm
Dimension f 31 mm
Expandable no
Fastening type Screw hole
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Number of cables/pipes 1
All types

All types

Types Clamping range D, min. Clamping range D, max. Colour Item no. Quantity SSU
3040 LGR 6 mm 16 mm Light grey; RAL 7035 2105012
100 piece
3041 LGR 16 mm 24 mm Light grey; RAL 7035 2105039
50 piece
3042 LGR 24 mm 34 mm Light grey; RAL 7035 2105055
25 piece
Downloads

Download

EU declaration of conformity 3041 LGR / 2105039 , 0.13MB , pdf
Download
REACH Declaration of conformity 3041 LGR / 2105039 , 0.12MB , pdf
RoHS Declaration of conformity 3041 LGR / 2105039 , 0.12MB , pdf

3041 LGR / 2105039
Download
