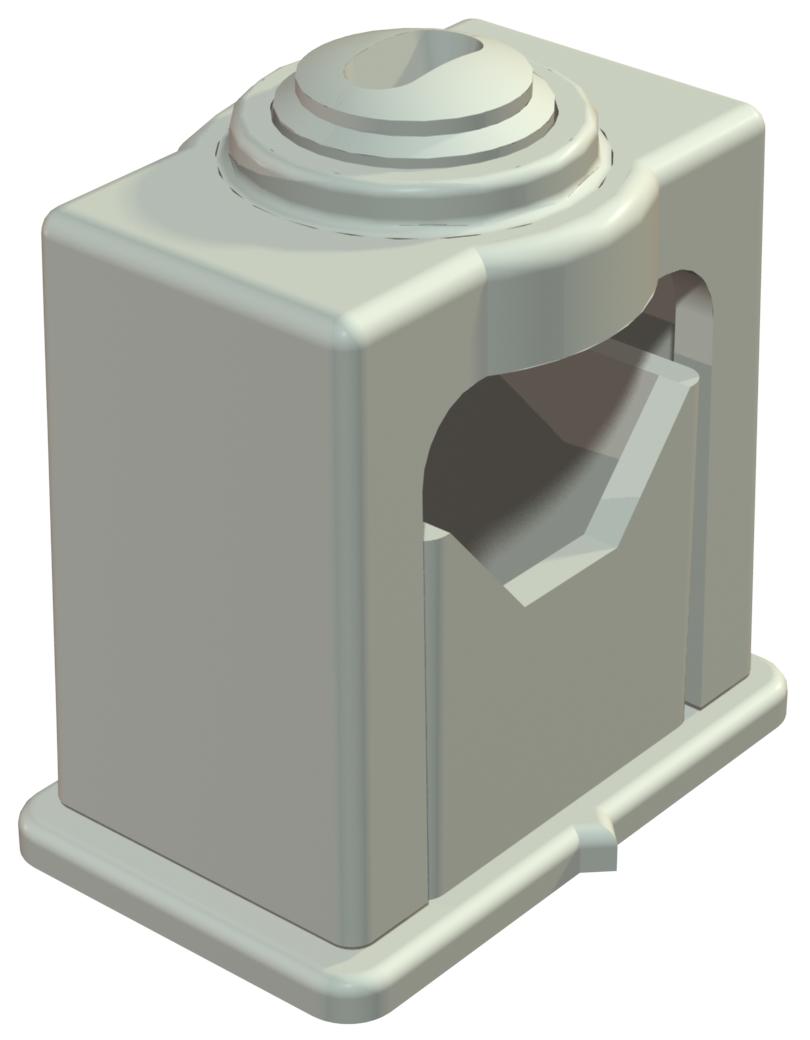

Grip ISO clip, single
Item no. 2105012 | EAN 4012195195436
- Product description
-
Product descriptionSolid cable fastening through clamping screws, with adhesive base, slot and for screwing to M6 thread.
Use the Impu-Fix ribbon conductor quick adhesive, type 509, to stick the polystyrene clips to masonry and concrete.
-
- Technical data
-
Technical data

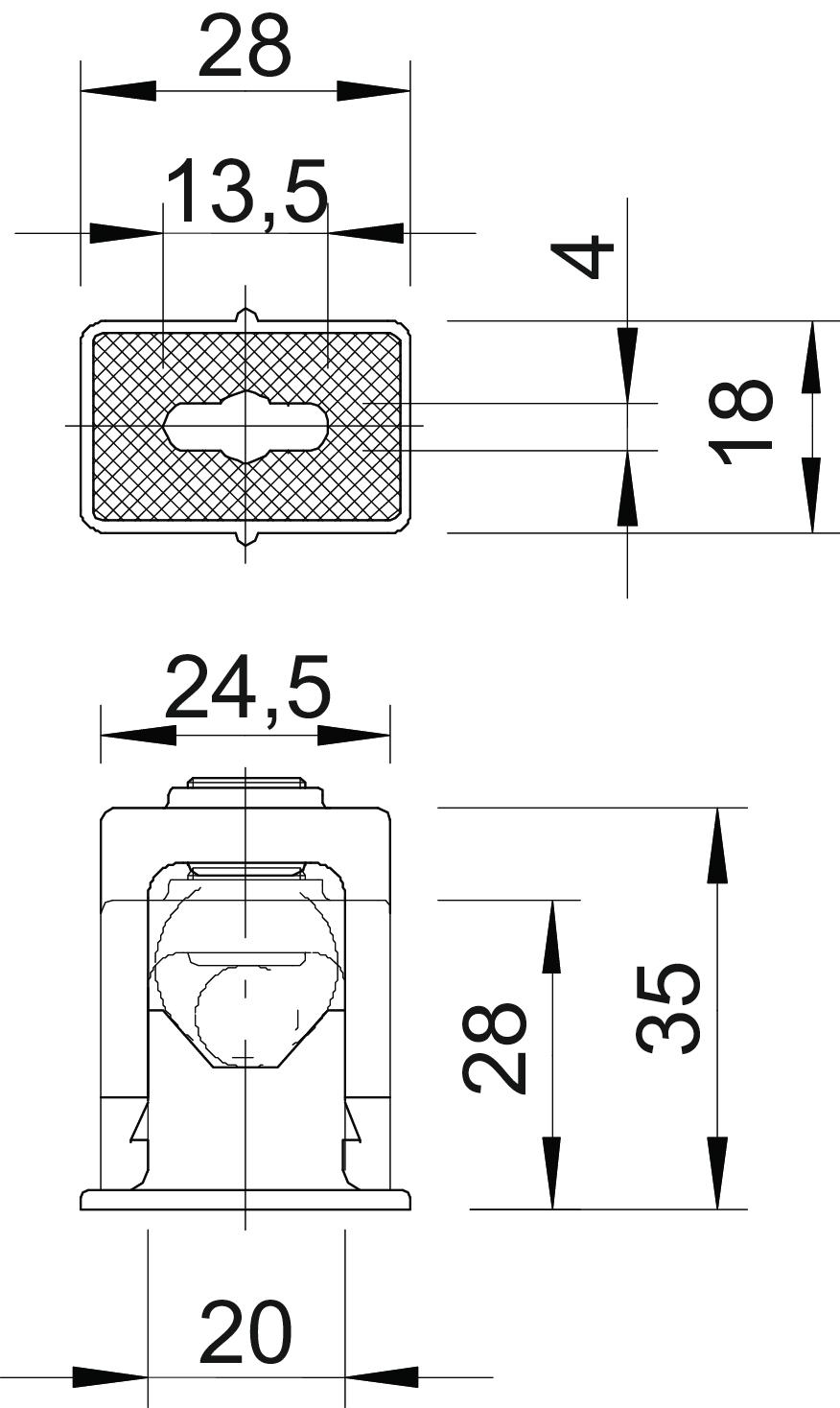

Clamping range D, max. 16 mm Clamping range D, min. 6 mm Colour Light grey; RAL 7035 Dimension 6-16mm Dimension a 28 mm Dimension a1 (mm) 13,5 mm Dimension b 18 mm Dimension b1 4 mm Dimension c 24,5 mm Dimension d 28 mm Dimension e 35 mm Dimension f 20 mm Expandable no Fastening type Screw hole Halogen-free yes Impact-resistant yes Material Polystyrene Number of cables/pipes 1 - All types
- Downloads
-
Data sheet 3040 LGR / 2105012 , 0.23MB , pdfEU declaration of conformity 3040 LGR / 2105012 , 0.13MB , pdfREACH Declaration of conformity 3040 LGR / 2105012 , 0.12MB , pdfRoHS Declaration of conformity 3040 LGR / 2105012 , 0.12MB , pdf
