Gutter clamp for bead thickness 15−22 mm Cu Rd 8-10 | 22 | 15
morepic-1 morepic-2 video-1

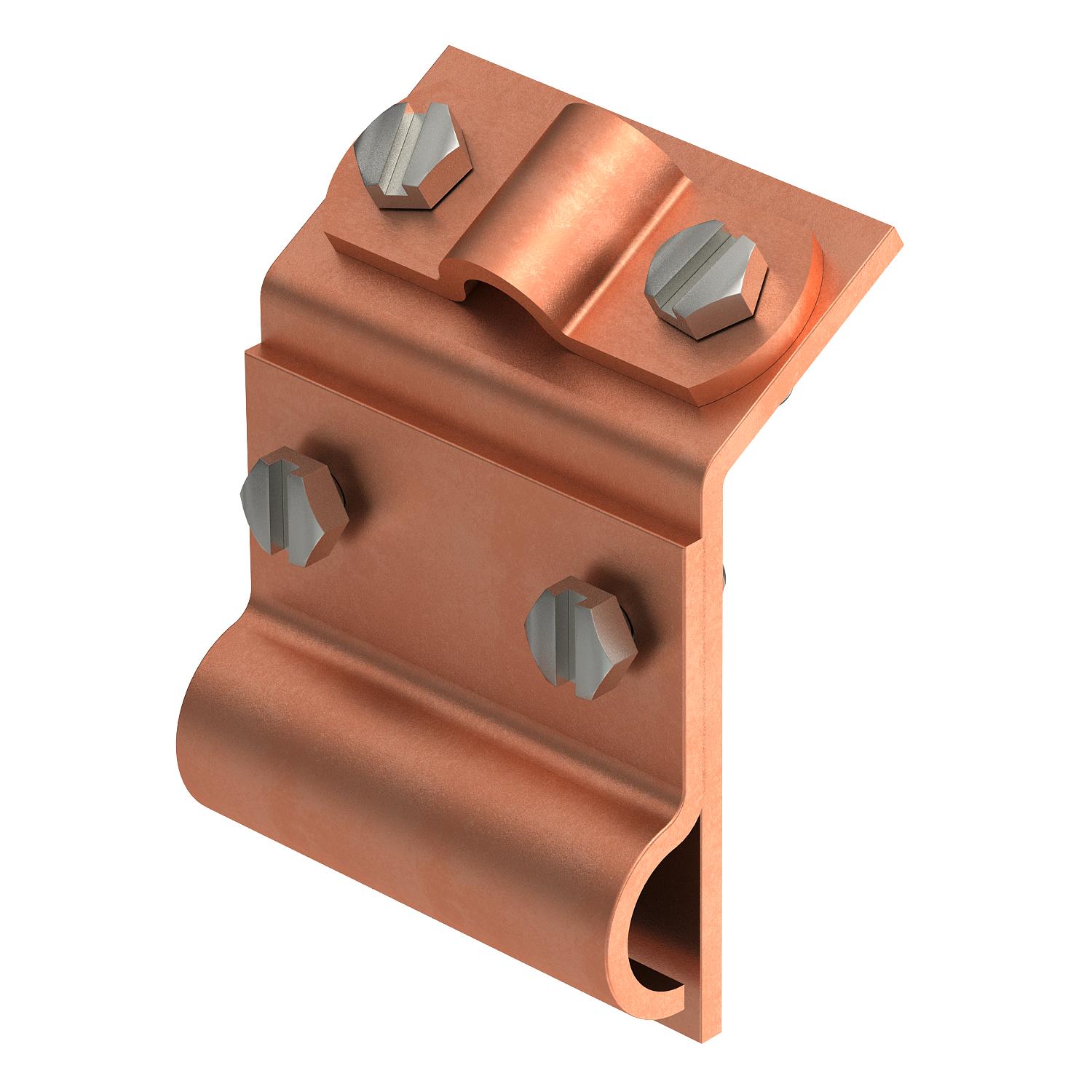

Gutter clamp for bead thickness 15−22 mm Cu

Item no. 5316251 | EAN 4012195420071

5316251 / 262 A-DIN CU
Rd 8-10 mm
22 mm
15 mm
Product description
Product description
• Suitable for bulge thickness 15−22 mm
• With 4 hexagonal bolts M6 x 16 (VA)
Technical data

Technical data

Clamping range, max. 22 mm
Clamping range, min. 15 mm
Dimension 8mm
Fit Rd 8-10 mm
Material Copper
Type of connector Roof gutter clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Clamping range, min. Item no. Quantity SSU
262 A-DIN CU Rd 8-10 mm 22 mm 15 mm 5316251
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 262 A-DIN CU / 5316251 , 0.06MB , pdf
Download
REACH Declaration of conformity 262 A-DIN CU / 5316251 , 0.12MB , pdf
Download
RoHS Declaration of conformity 262 A-DIN CU / 5316251 , 0.12MB , pdf
Download

262 A-DIN CU / 5316251
