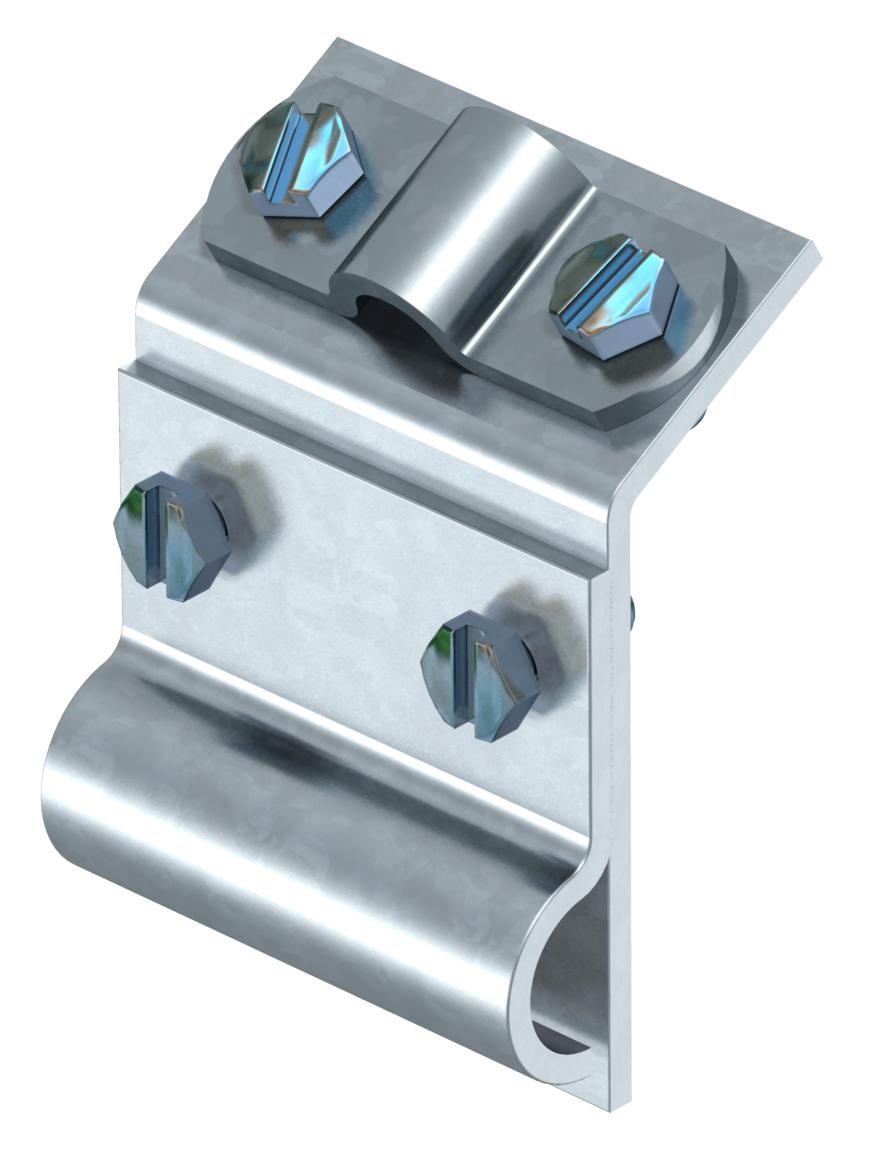

Gutter clamp for bead thickness 15−22 mm FT

Item no. 5316219 | EAN 4012195420019

5316219 / 262 A-DIN FT
Rd 8-10 mm
22 mm
15 mm
Product description

Product description

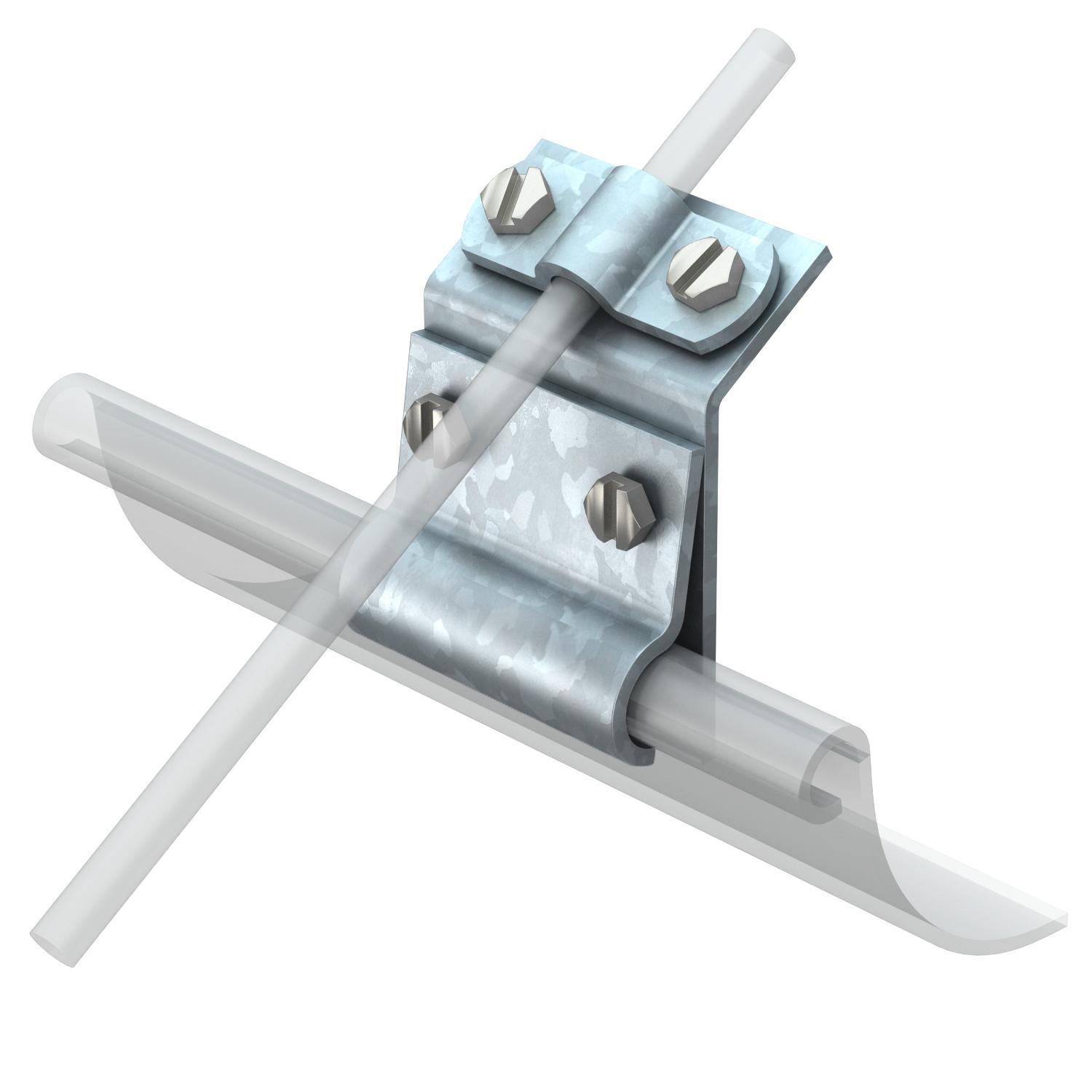

• Suitable for bulge thickness 15−22 mm
• With 4 hexagonal bolts M6 x 16 (VA)
Technical data

Technical data

Clamping range, max. 22 mm
Clamping range, min. 15 mm
Dimension 8mm
Fit Rd 8-10 mm
Material Steel
Surface Hot-dip galvanised
Type of connector Roof gutter clamp
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Clamping range, max. Clamping range, min. Item no. Quantity SSU
262 A-DIN FT Rd 8-10 mm 22 mm 15 mm 5316219
25 piece
