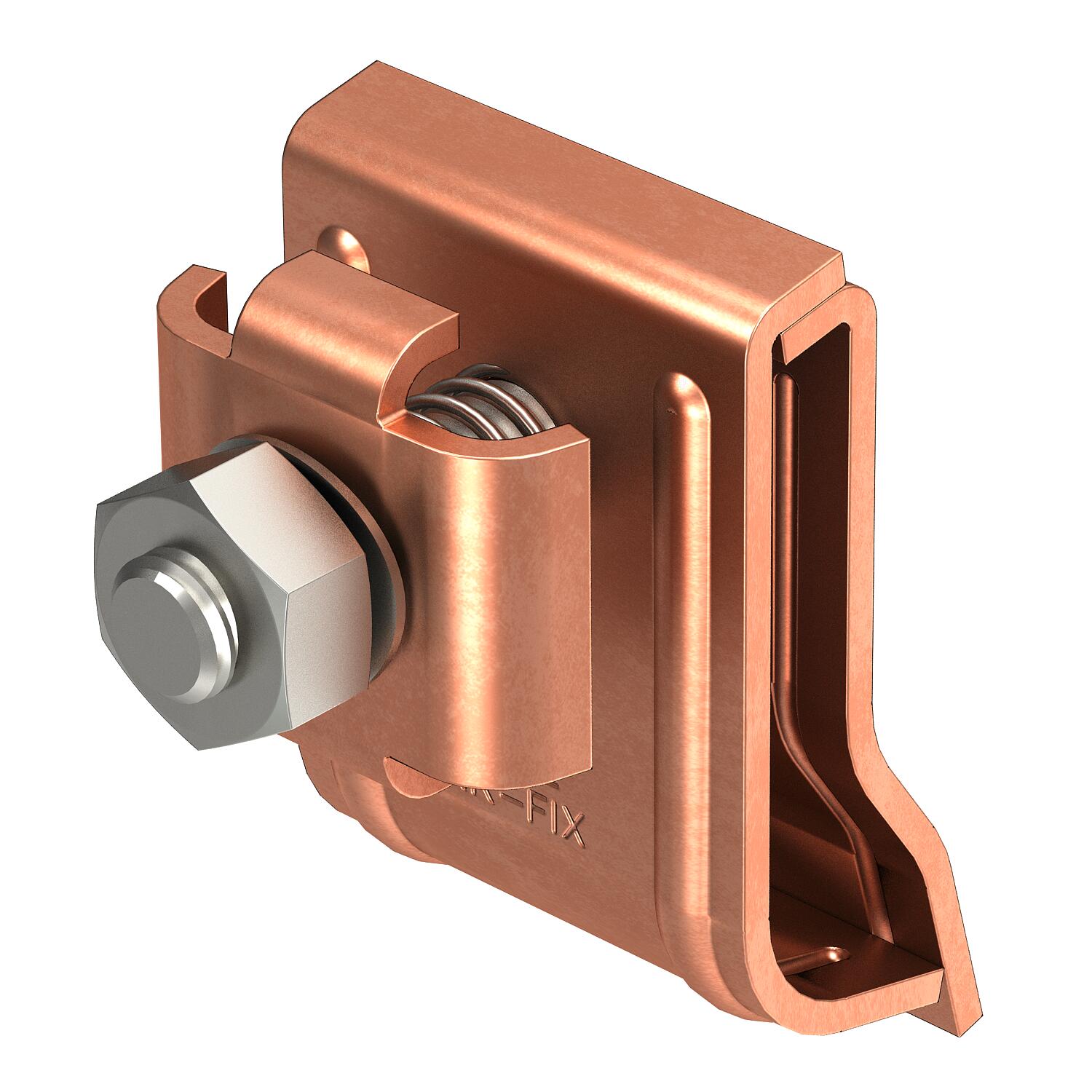

Gutter clamp RK-FIX Cu
Item no. 5316468 | EAN 4012195433736
- Product description
-
Product description• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45

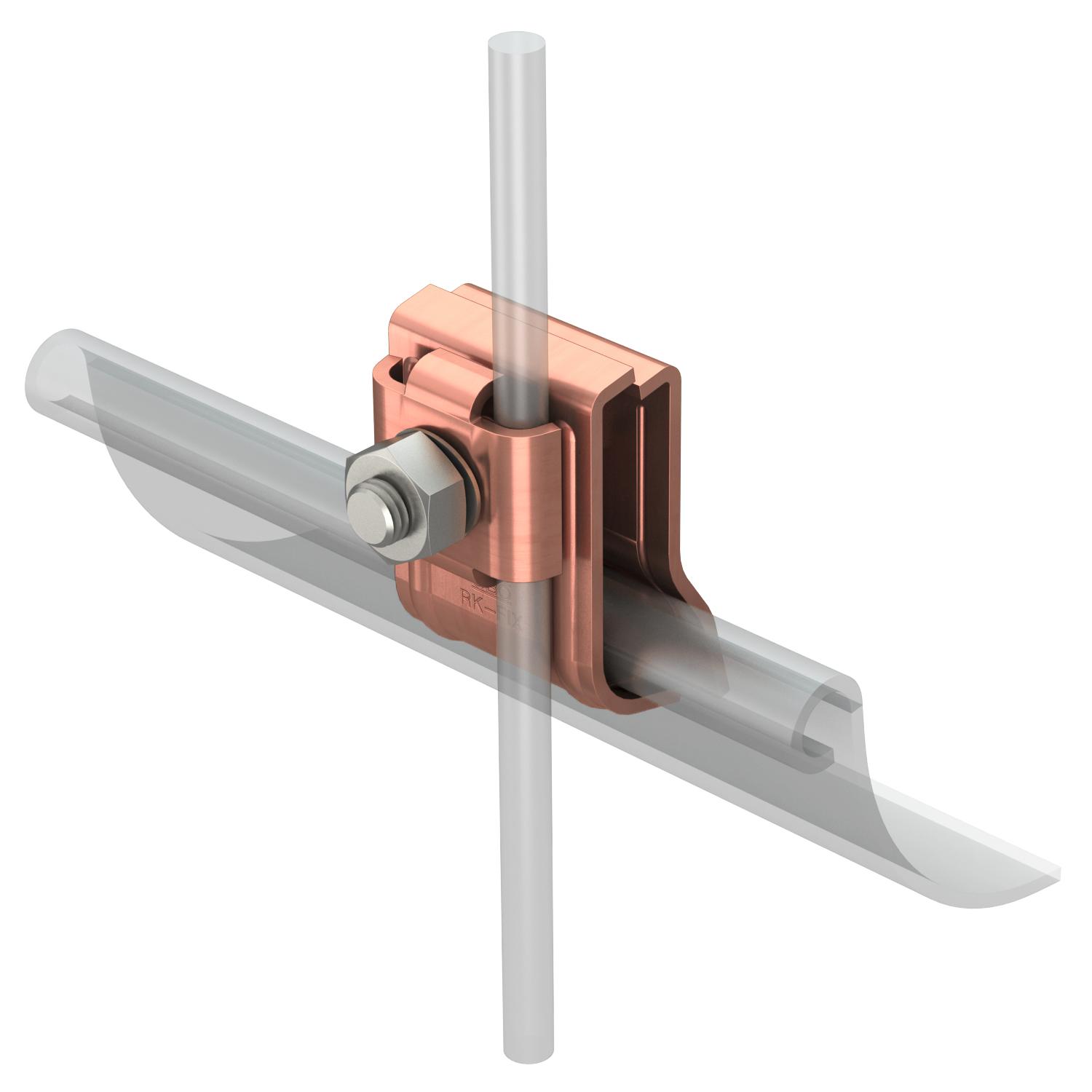

• With spring for prefixing on rain gutter
• Clamp body and crossbar made of rustproof stainless steel (V2A), copper-plated
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
-
- Technical data
-
Technical data
Clamping range, max. 25 mm Clamping range, min. 15 mm Dimension 2x8 / 2x6mm Fit 2 x Rd 8/ 2 x Rd 6 mm Lightning current carrying capacity H/100 kA Material Stainless steel Surface Copper-plated Type of connector Roof gutter clamp Type of fastening screw Gutter bolt - All types
- Downloads
-
Data sheet RK-FIX CU / 5316468 , 0.17MB , pdfEU declaration of conformity EU declaration of conformity ,EU declaration of conformity EU declaration of conformity ,REACH Declaration of conformity RK-FIX CU / 5316468 , 0.12MB , pdfRoHS Declaration of conformity RK-FIX CU / 5316468 , 0.12MB , pdf
