- Product description
-
Product description

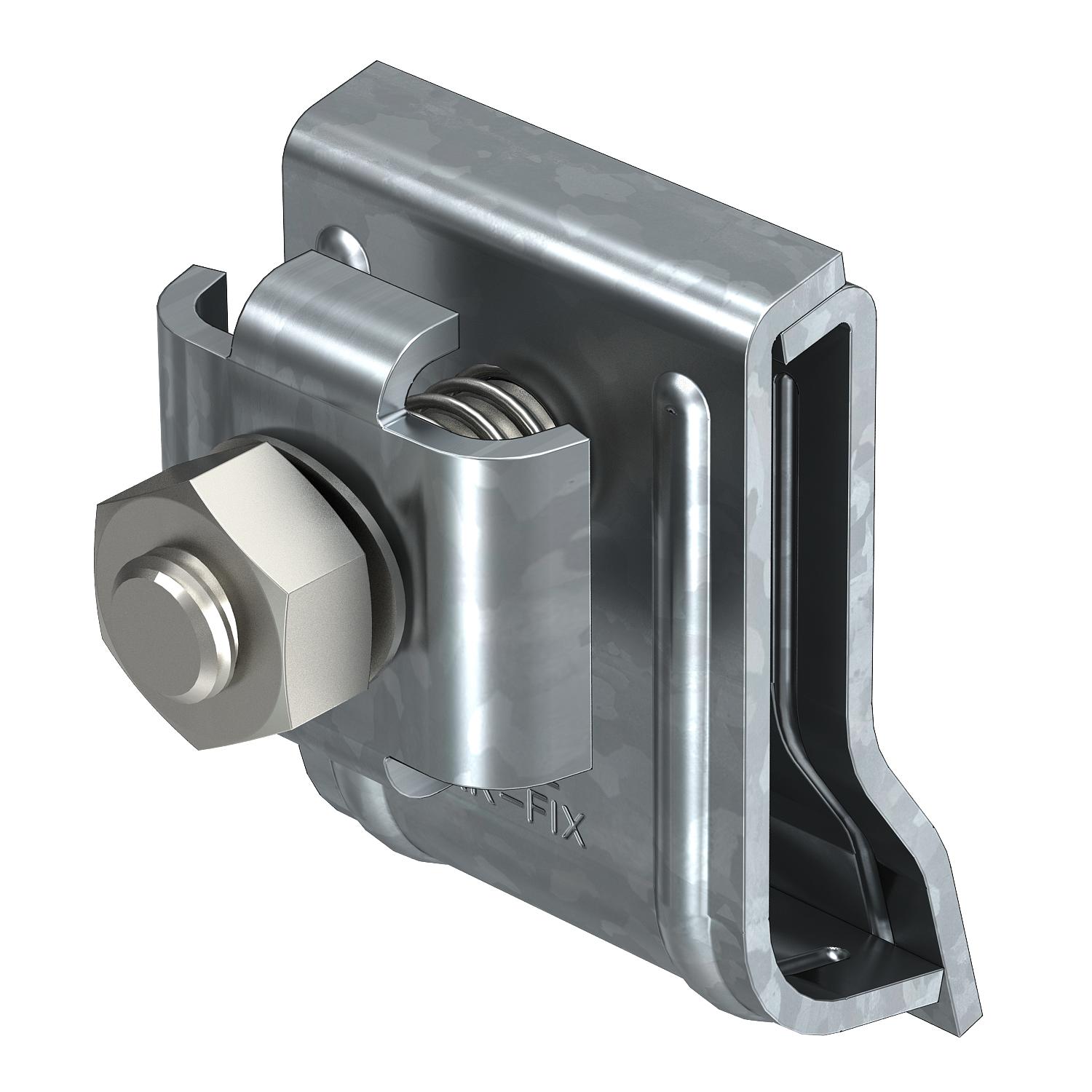

• For up to 2 round conductors Rd 6 or Rd 8
• Suitable for all bead thicknesses (15–25 mm)
• With 1 truss-head bolt M10 x 45

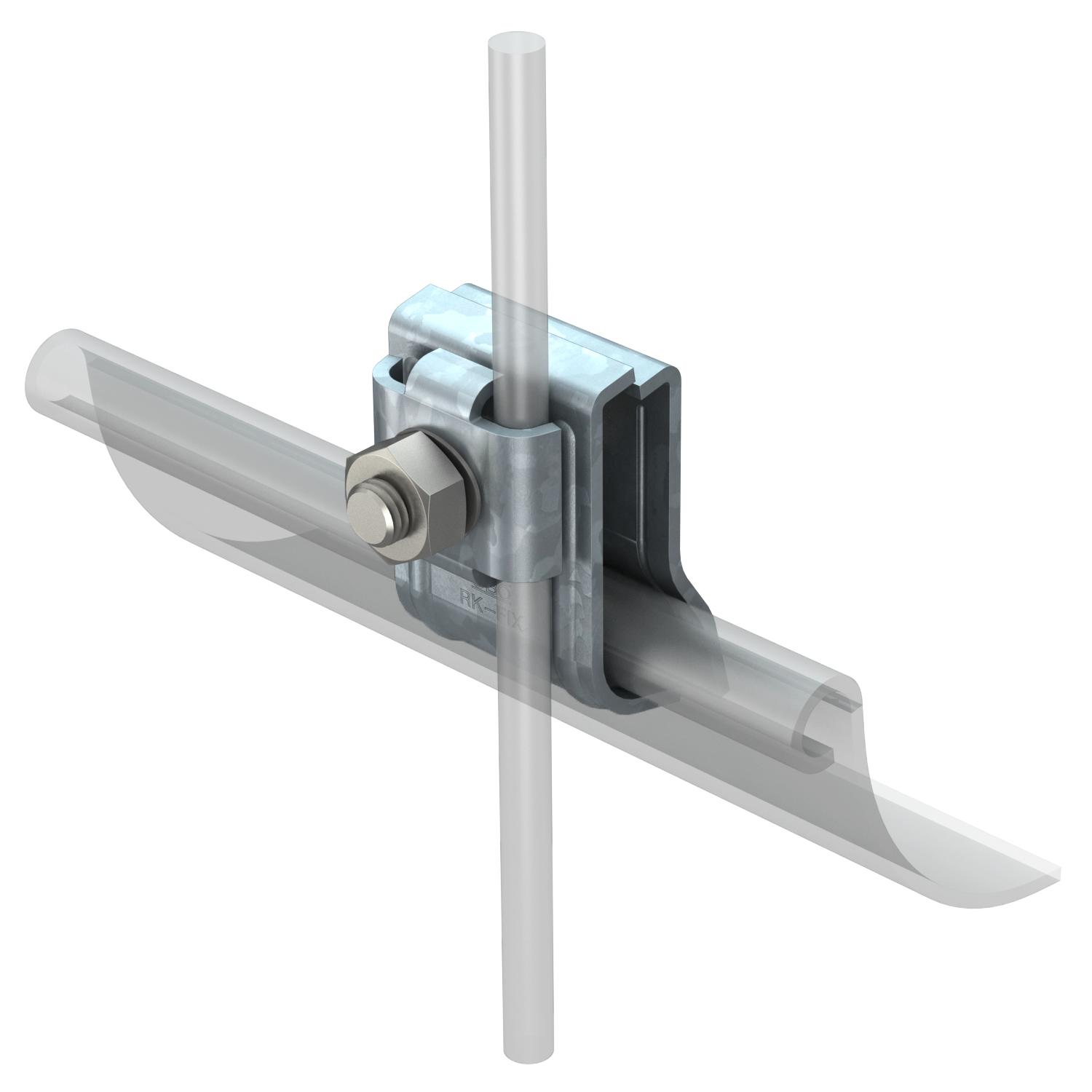

• With spring for prefixing on rain gutter
• Clamp body and crossbar made of hot-dip galvanised steel
• Nut, bolt and spring made of stainless steel (V2A)
• Tested to VDE 0185-561-1 (IEC/EN 62561-1)
- Technical data
-
Technical data
Clamping range, max. 25 mm Clamping range, min. 15 mm Dimension 2x8mm Fit 2 x Rd 8 mm Lightning current carrying capacity H/100 kA Material Steel Surface Hot-dip galvanised Type of connector Roof gutter clamp Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet RK-FIX / 5316450 , 0.16MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,REACH Declaration of conformity RK-FIX / 5316450 , 0.27MB , pdfRoHS Declaration of conformity RK-FIX / 5316450 , 0.12MB , pdf
