Hammer-head bolt 21.1 | 10.5 | 4 | M 8 x 25mm
morepic-1 morepic-2

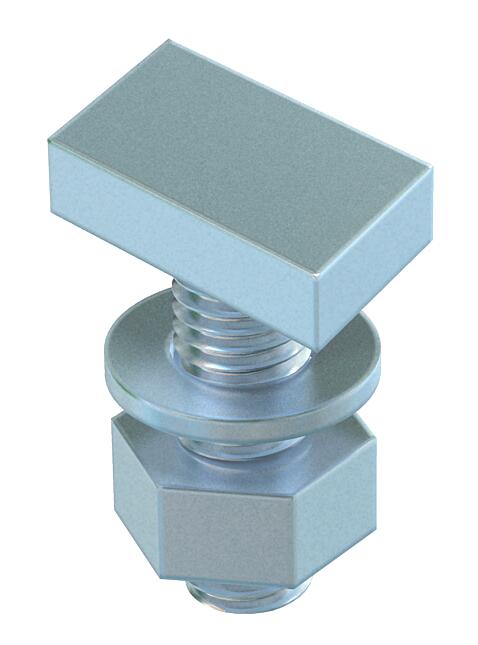

Hammer-head bolt

Item no. 1148016 | EAN 4012196488742

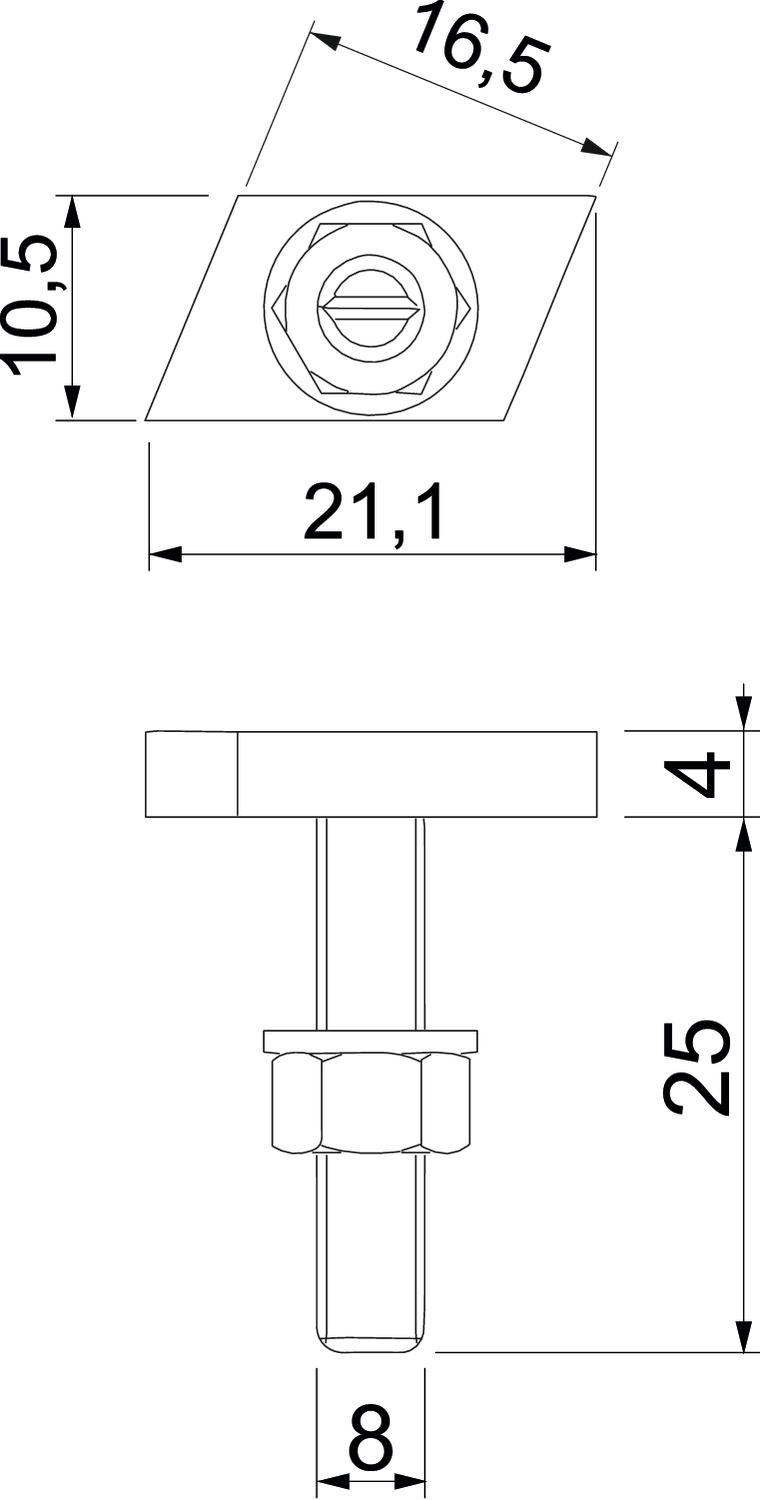

21.1 mm
10.5 mm
4 mm
Product description
Product description
Hammer-head bolt for use with CL2008 profile rail
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11 mm for C profile
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,003 kg CO₂e / 1 Piece
Dimension M8x25mm
Dimension L 25 mm
Height 4 mm
Length 21,1 mm
Material Steel
Suitable for mounting rail yes
Surface Zinc slat
Thread M 8 x 25mm
Thread metric 8
Width 10,5 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
CL20HB M5x25 ZL 21.1 mm 10.5 mm 4 mm M 5 x 25mm 1148008
50 piece
CL20HB M6x25 ZL 21.1 mm 10.5 mm 4 mm M 6 x 25mm 1148012
50 piece
CL20HB M8x25 ZL 21.1 mm 10.5 mm 4 mm M 8 x 25mm 1148016
50 piece
Downloads

Download

Download

REACH Declaration of conformity CL20HB M8x25 ZL / 1148016 , 0.12MB , pdf
Download
RoHS Declaration of conformity CL20HB M8x25 ZL / 1148016 , 0.12MB , pdf
Download

CL20HB M8x25 ZL / 1148016
