Hammer-head bolt 23 | 10.1 | 4 | M 6 x 25mm
morepic-1 morepic-2

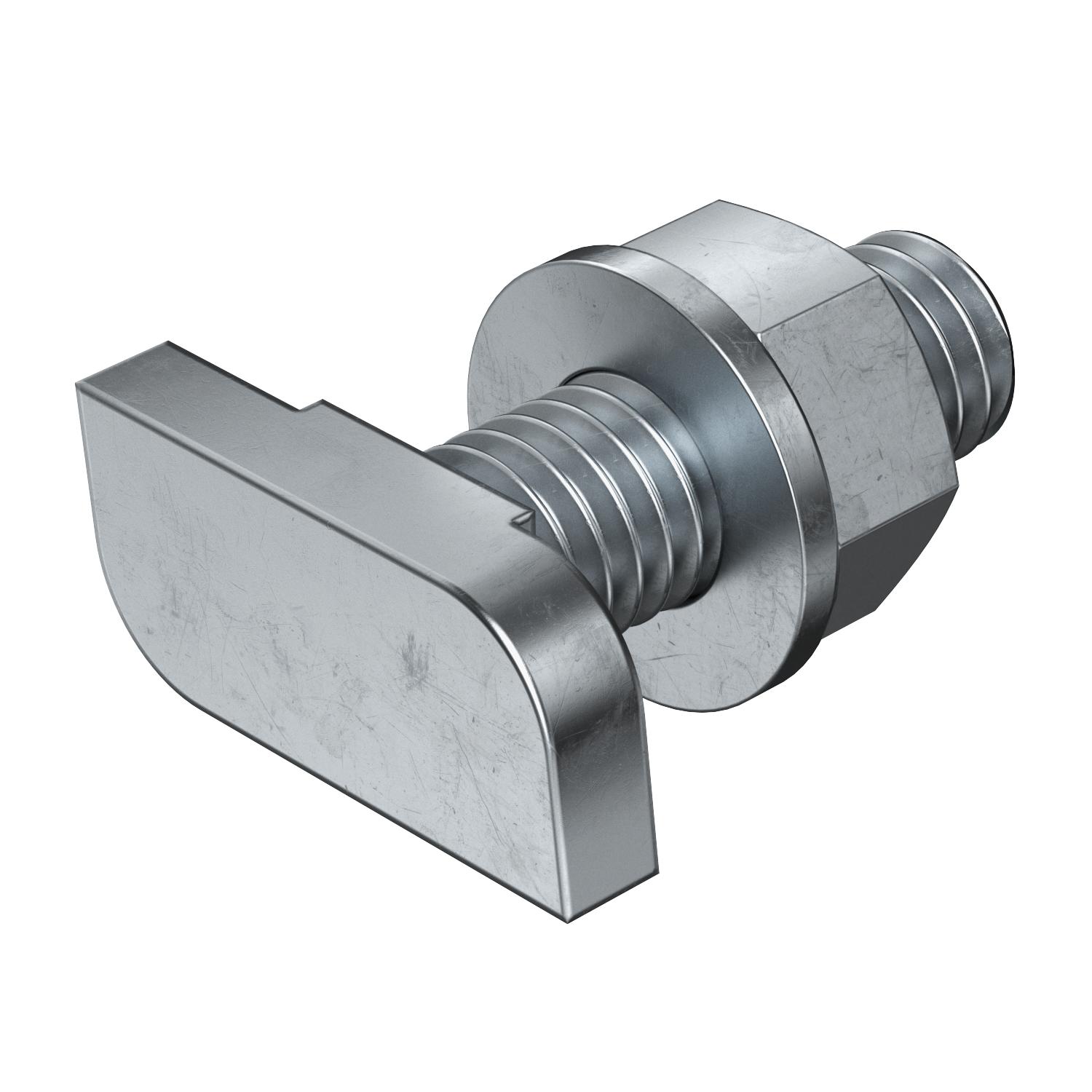

Hammer-head bolt

Item no. 1148024 | EAN 4012196488766

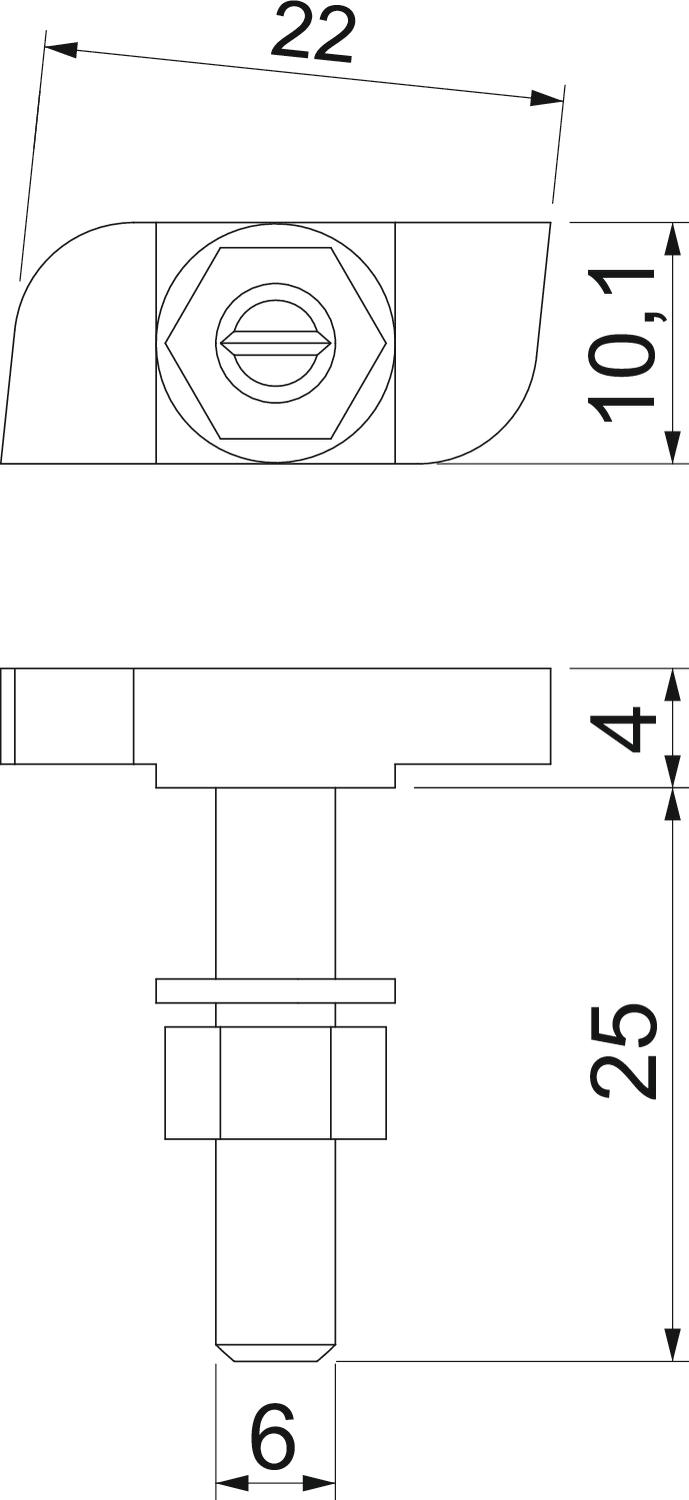

23 mm
10.1 mm
4 mm
Product description
Product description
Hammer-head bolt for use with CL2712 profile rail

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11 mm for C profile
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,003 kg CO₂e / 1 Piece
Dimension M6x25mm
Height 4 mm
Length 23 mm
Material Steel
Suitable for mounting rail yes
Surface Zinc slat
Thread M 6 x 25mm
Thread metric 6
Width 10,1 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
CL27HB M5x25 ZL 23 mm 10.1 mm 4 mm M 5 x 25mm 1148020
50 piece
CL27HB M6x25 ZL 23 mm 10.1 mm 4 mm M 6 x 25mm 1148024
50 piece
CL27HB M8x25 ZL 23 mm 10.1 mm 4 mm M 8 x 25mm 1148028
50 piece
