Hammer-head bolt A4 33.5 | 16 | 5 | M 8 x 60mm
morepic-1 morepic-2

Hammer-head bolt A4

Item no. 1148084 | EAN 4012196488971

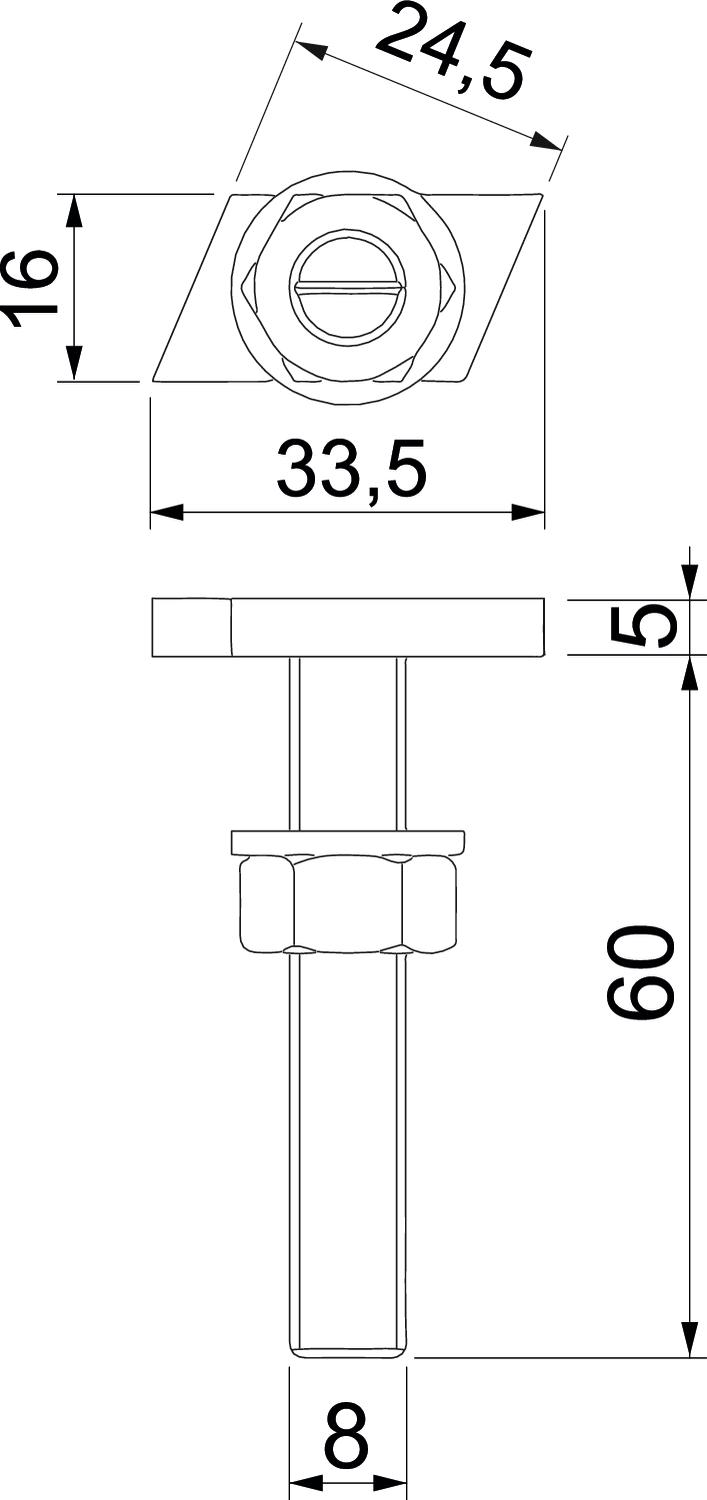

33.5 mm
16 mm
Product description
Product description
Hammer-head bolt for use with CM3015, CM3518 and AM3518 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,2231 kg CO₂e / 1 Piece
Dimension M8x60mm
Dimension L 60 mm
Height 5 mm
Length 33,5 mm
Material Stainless steel
Suitable for mounting rail yes
Surface Bright, treated
Thread M 8 x 60mm
Thread metric 8
Width 16 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
ACMHB M6x30 A4 33.5 mm 16 mm 5 mm M 6 x 30mm 1148076
50 piece
ACMHB M8x30 A4 33.5 mm 16 mm 5 mm M 8 x 30mm 1148080
50 piece
ACMHB M8x60 A4 33.5 mm 16 mm 5 mm M 8 x 60mm 1148084
25 piece
ACMHB M10x30 A4 33.5 mm 16 mm 6 mm M 10 x 30mm 1148088
50 piece
ACMHB M10x60 A4 33.5 mm 16 mm 6 mm M 10 x 60mm 1148092
25 piece
