Hammer-head bolt A4 34.5 | 20 | 8 | M 10 x 100

morepic-1

morepic-2

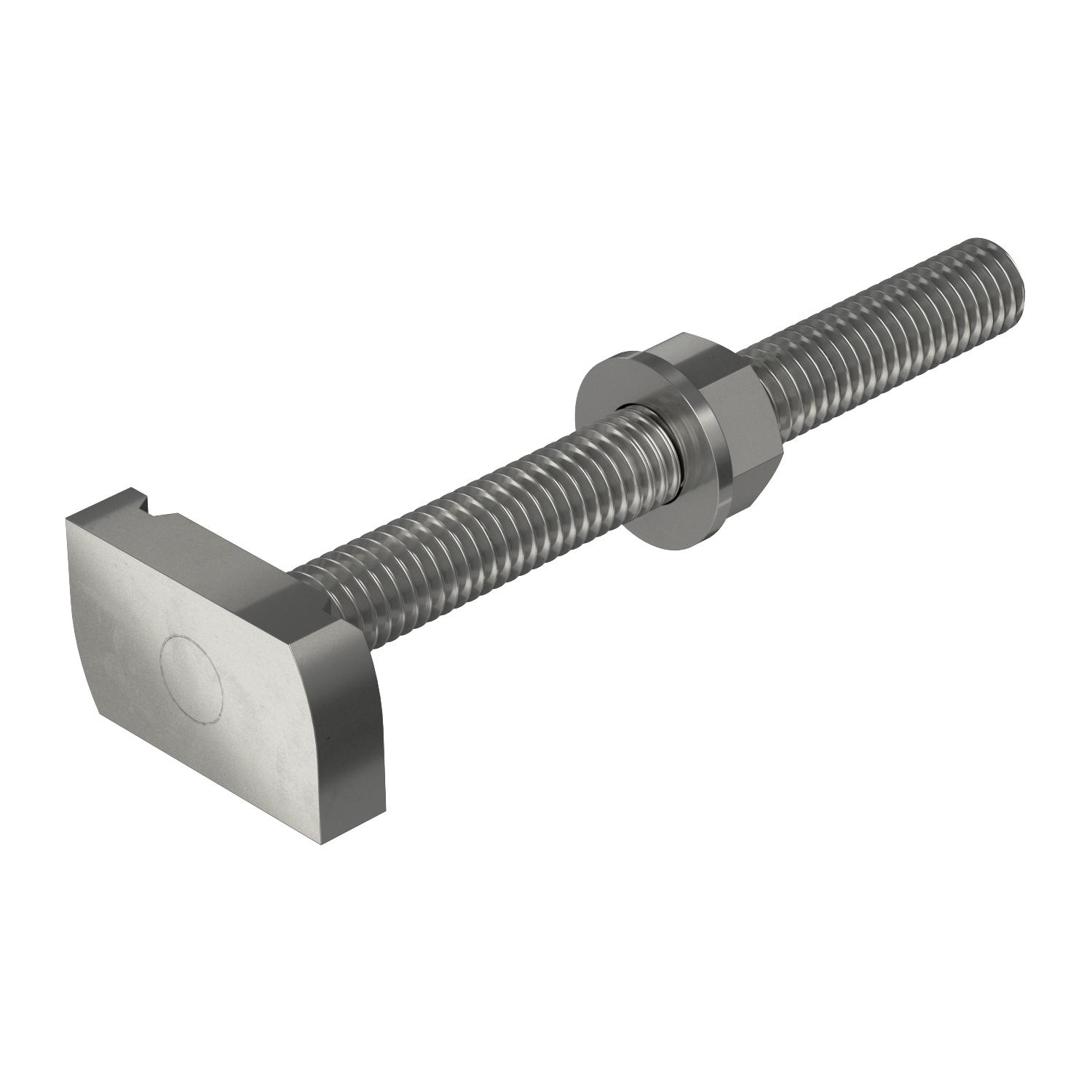

Hammer-head bolt A4

Item no. 1148430 | EAN 4012196490370

Item no. / Types

Length	34.5 mm

Width	20 mm

Height

Thread

Product description

Product description

Hammer-head bolt for use with MS4121 and MS4141 profile rails

Technical data

Technical data

Dimension	M10x100mm
Dimension H	8 mm
Dimension L	100 mm
Height	8 mm
Length	34,5 mm
Material	Stainless steel

Suitable for mounting rail	yes
Surface	Bright, treated
Thread	M 10 x 100
Torque	9,9 Nm
Washer Ø	20 mm
Width	20 mm

All types

All types

Types	Length	Width	Height	Thread	Item no.	Quantity	SSU
MS41HB M6x30 A4	34.5 mm	20 mm	6 mm	M 6 x 30	1148406	piece	50 piece
MS41HB M8x30 A4	34.5 mm	20 mm	6 mm	M 8 x 30	1148410	piece	50 piece
MS41HB M8x60 A4	34.5 mm	20 mm	6 mm	M 8 x 60	1148414	piece	25 piece
MS41HB M8x100 A4	34.5 mm	20 mm	6 mm	M 8 x 100	1148418	piece	20 piece
MS41HB M10x30 A4	34.5 mm	20 mm	8 mm	M 10 x 30	1148422	piece	50 piece
MS41HB M10x60 A4	34.5 mm	20 mm	8 mm	M 10 x 60	1148426	piece	25 piece
MS41HB M10x100A4	34.5 mm	20 mm	8 mm	M 10 x 100	1148430	piece	20 piece
MS41HB M12x30 A4	34.5 mm	20 mm	9 mm	M 12 x 30	1148434	piece	50 piece
MS41HB M12x60 A4	34.5 mm	20 mm	9 mm	M 12 x 60	1148438	piece	25 piece
MS41HB M12x100A4	34.5 mm	20 mm	9 mm	M 12 x 100	1148442	piece	20 piece

Downloads

Data sheet MS41HB M10x100A4 / 1148430 , 0.17MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity MS41HB M10x100A4 / 1148430 , 0.04MB , pdf

Download

Product graphic MS41HB M10x100A4 / 1148430, 67.16 kB, jpg

Scale drawing MS41HB M10x100A4 / 1148430, 47.69 kB, jpg
