Hammer-head bolt with spring A4 34.5 | 20 | 8 | M 10 x 60
morepic-1 morepic-2

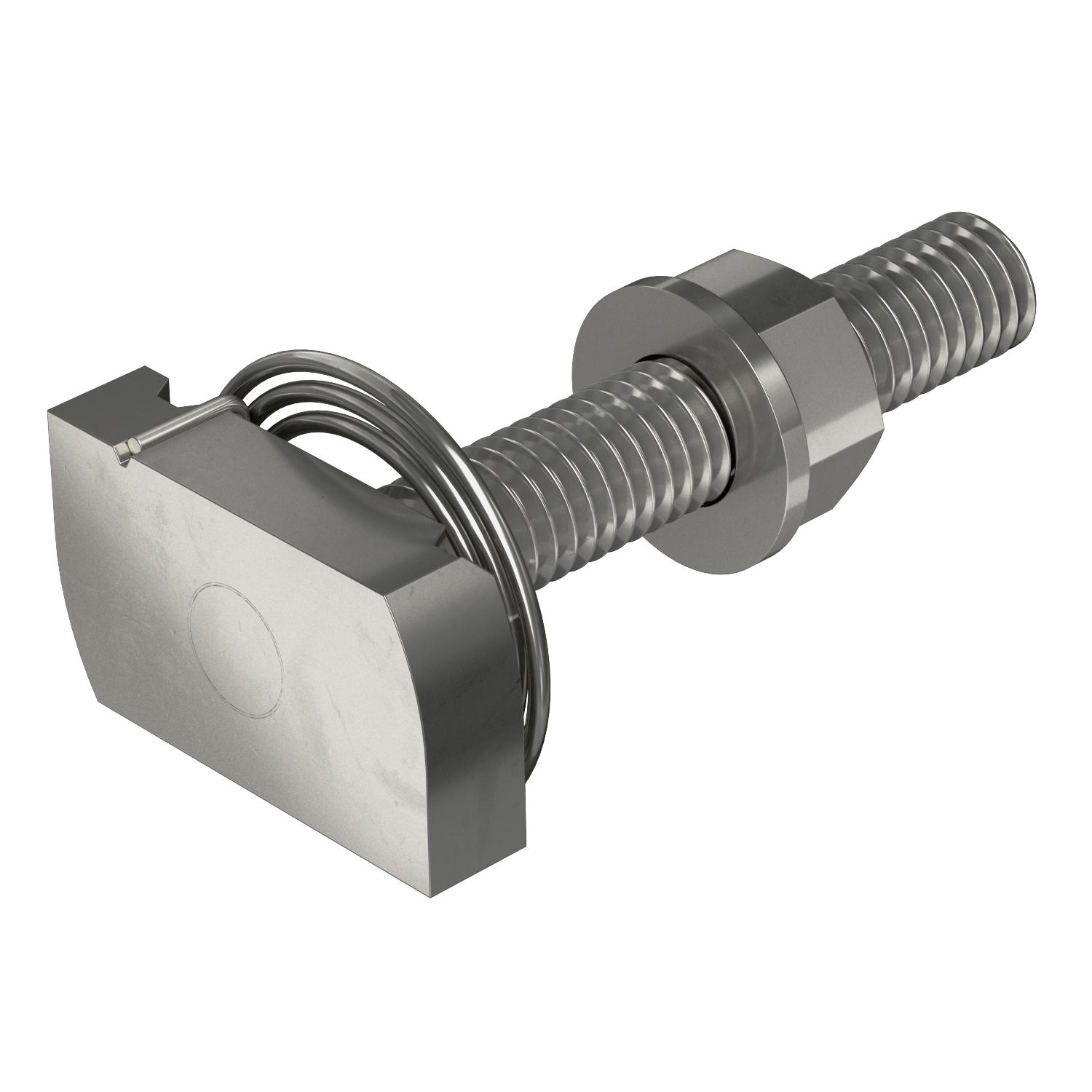

Hammer-head bolt with spring A4

Item no. 1148488 | EAN 4012196490509

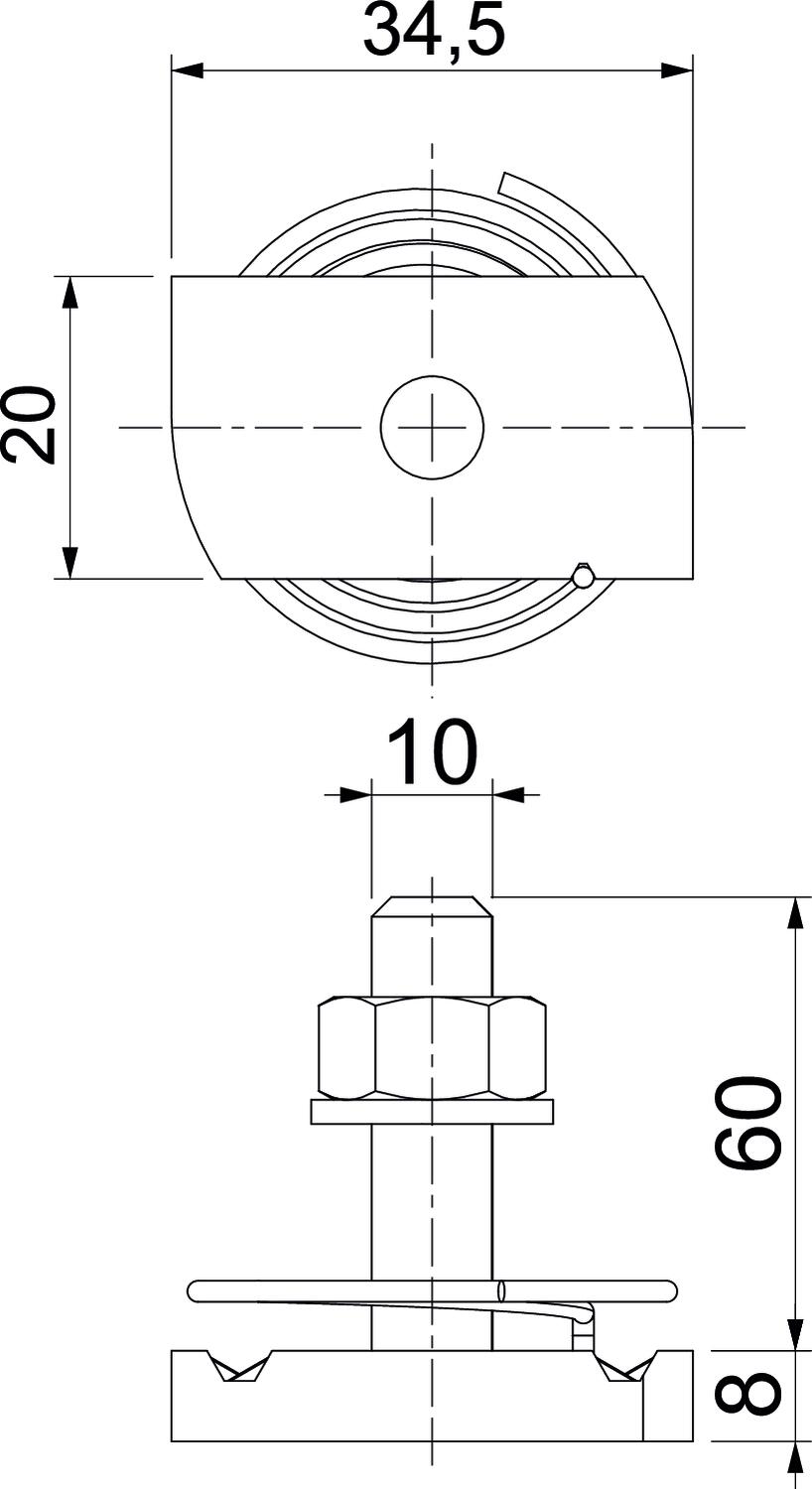

34.5 mm
20 mm
Product description
Product description
Hammer-head bolt with spring for use with MS4121 and MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,4622 kg CO₂e / 1 Piece
Dimension M10x60mm
Dimension H 8 mm
Dimension L 60 mm
Height 8 mm
Length 34,5 mm
Material Stainless steel
Suitable for mounting rail yes
Surface Bright, treated
Thread M 10 x 60
Torque 9,9 Nm
Washer Ø 20 mm
Width 20 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41HBF M8x30 A4 34.5 mm 20 mm 6 mm M 8 x 30 1148476
50 piece
MS41HBF M8x60 A4 34.5 mm 20 mm 6 mm M 8 x 60 1148480
25 piece
MS41HBF M10x30A4 34.5 mm 20 mm 8 mm M 10 x 30 1148484
50 piece
MS41HBF M10x60A4 34.5 mm 20 mm 8 mm M 10 x 60 1148488
25 piece
MS41HBF M12x30A4 34.5 mm 20 mm 9 mm M 12 x 30 1148492
50 piece
MS41HBF M12x60A4 34.5 mm 20 mm 9 mm M 12 x 60 1148496
25 piece
