Hammer-head bolt with spring A4 34.5 | 20 | 9 | M 12 x 60
morepic-1 morepic-2

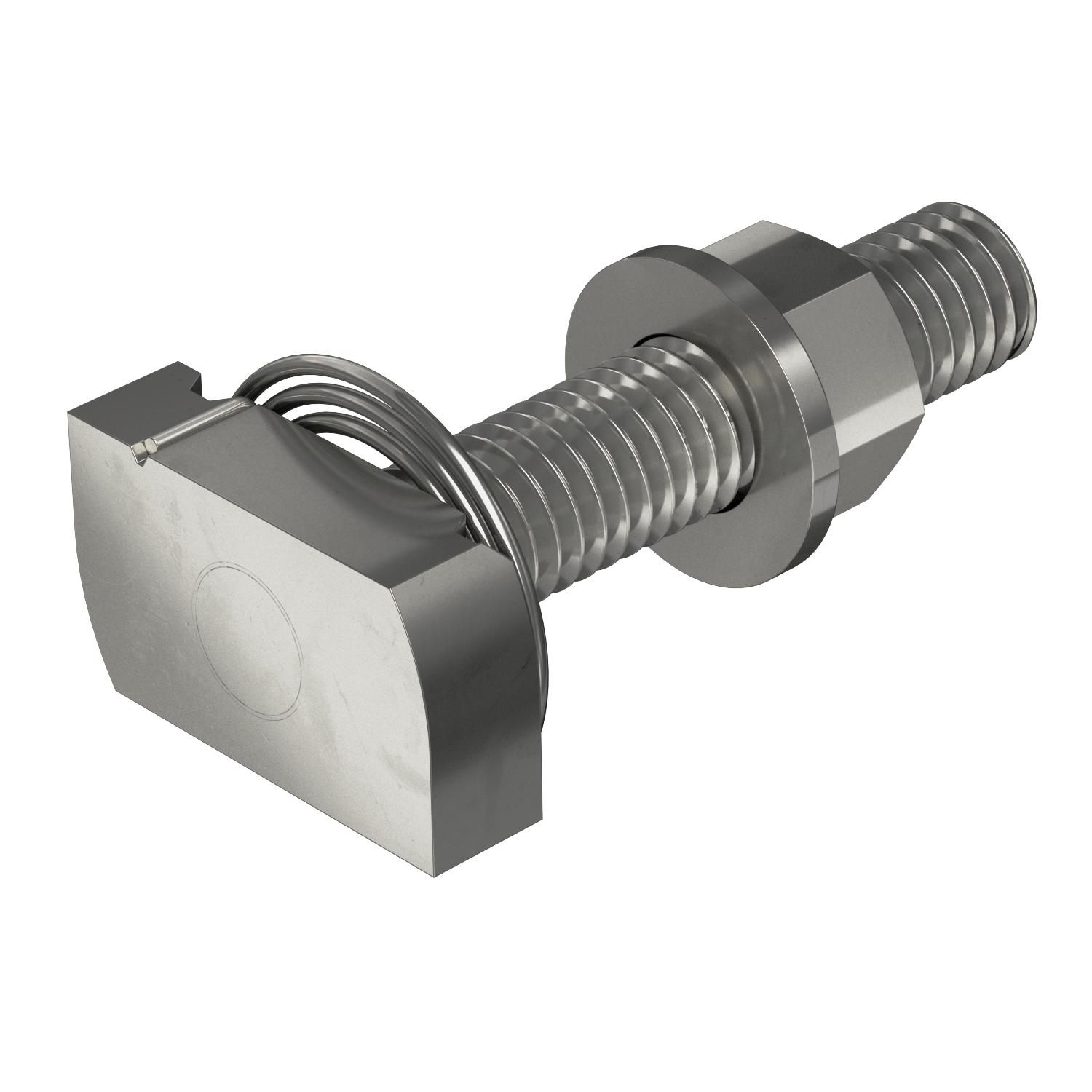

Hammer-head bolt with spring A4

Item no. 1148496 | EAN 4012196490554

34.5 mm
20 mm
Product description
Product description
Hammer-head bolt with spring for use with MS4121 and MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,61 kg CO₂e / 1 Piece

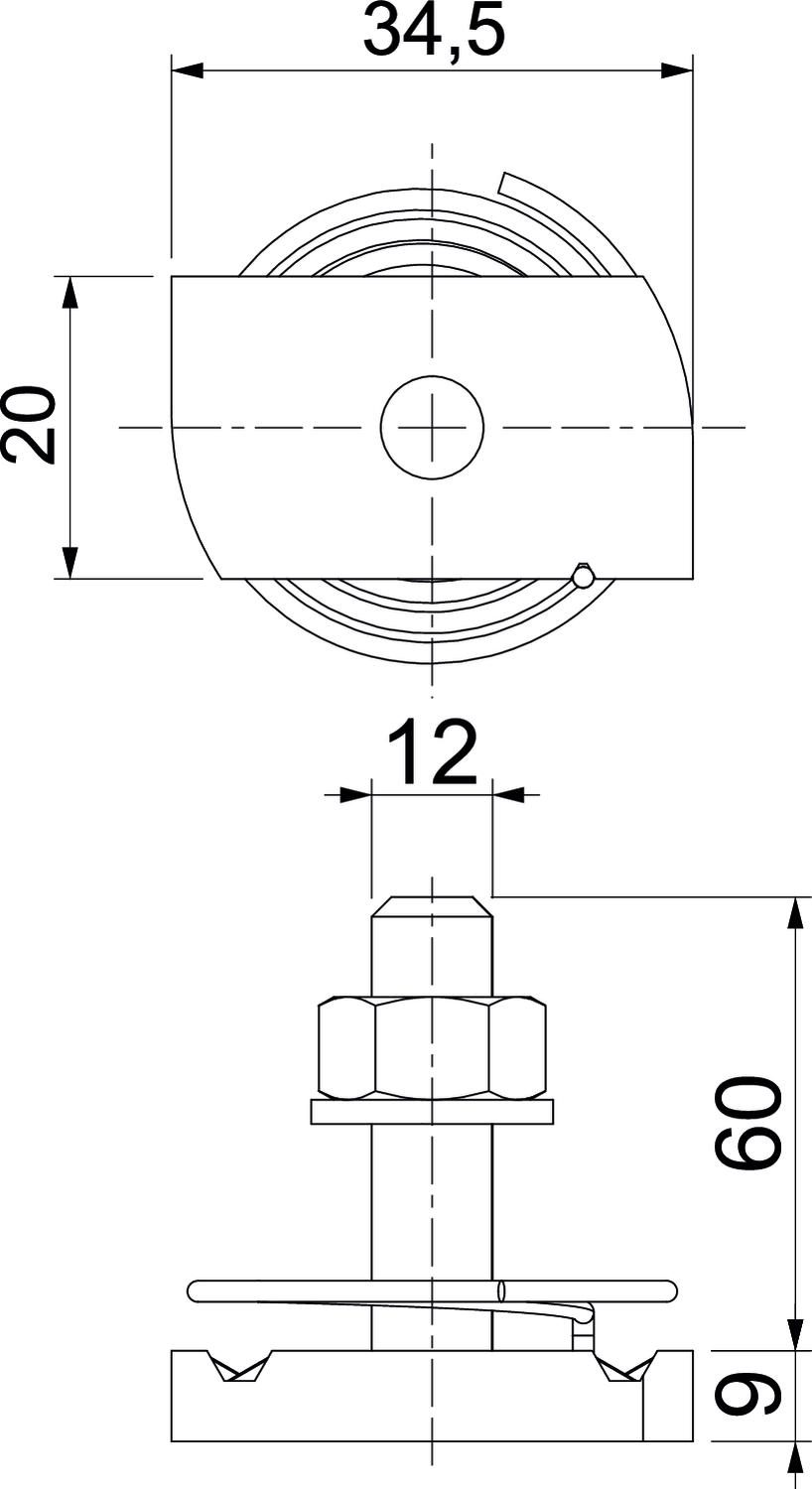

Dimension M12x60mm
Dimension H 9 mm
Dimension L 60 mm
Height 9 mm
Length 34,5 mm
Material Stainless steel
Suitable for mounting rail yes
Surface Bright, treated
Thread M 12 x 60
Torque 14,4 Nm
Washer Ø 24 mm
Width 20 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41HBF M8x30 A4 34.5 mm 20 mm 6 mm M 8 x 30 1148476
50 piece
MS41HBF M8x60 A4 34.5 mm 20 mm 6 mm M 8 x 60 1148480
25 piece
MS41HBF M10x30A4 34.5 mm 20 mm 8 mm M 10 x 30 1148484
50 piece
MS41HBF M10x60A4 34.5 mm 20 mm 8 mm M 10 x 60 1148488
25 piece
MS41HBF M12x30A4 34.5 mm 20 mm 9 mm M 12 x 30 1148492
50 piece
MS41HBF M12x60A4 34.5 mm 20 mm 9 mm M 12 x 60 1148496
25 piece
Downloads

Download

Download

EU declaration of conformity MS41HBF M12x60A4 / 1148496 , 0.04MB , pdf
Download
REACH Declaration of conformity MS41HBF M12x60A4 / 1148496 , 0.12MB , pdf
Download
RoHS Declaration of conformity MS41HBF M12x60A4 / 1148496 , 0.12MB , pdf
Download

MS41HBF M12x60A4 / 1148496
Download
