Hammer-head bolt ZL 33.5 | 16 | 6 | M 10 x 60mm
morepic-1 morepic-2

Hammer-head bolt ZL

Item no. 1148072 | EAN 4012196488926

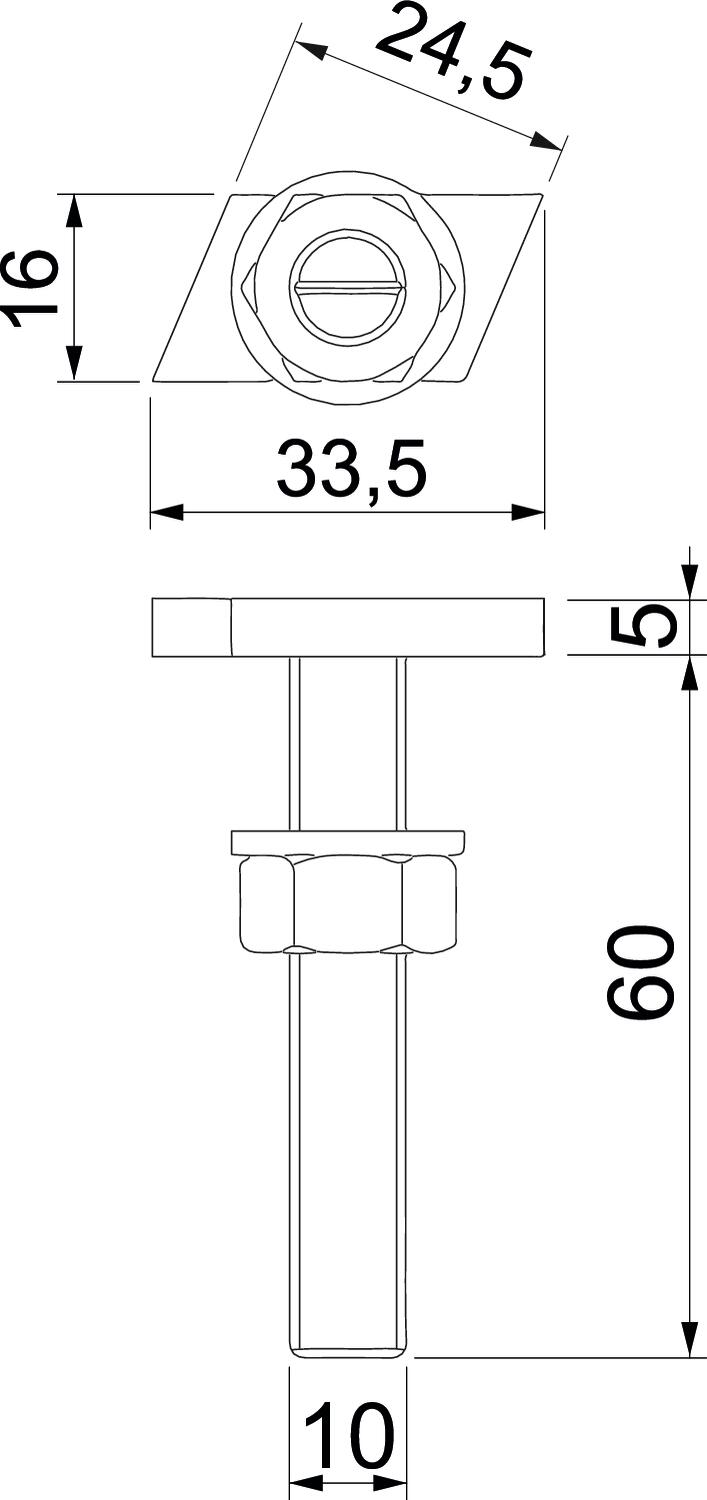

33.5 mm
16 mm
Product description
Product description
Hammer-head bolt for use with CM3015, CM3518 and AM3518 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 17 mm
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,007 kg CO₂e / 1 Piece
Dimension M10x60mm
Dimension L 60 mm
Height 6 mm
Length 33,5 mm
Material Steel
Suitable for mounting rail yes
Surface Zinc slat
Thread M 10 x 60mm
Thread metric 10
Width 16 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
ACMHB M6x30 ZL 33.5 mm 16 mm 5 mm M 6 x 30mm 1148056
50 piece
ACMHB M8x30 ZL 33.5 mm 16 mm 5 mm M 8 x 30mm 1148060
50 piece
ACMHB M8x60 ZL 33.5 mm 16 mm 5 mm M 8 x 60mm 1148064
25 piece
ACMHB M10x30 ZL 33.5 mm 16 mm 6 mm M 10 x 30mm 1148068
50 piece
ACMHB M10x60 ZL 33.5 mm 16 mm 6 mm M 10 x 60mm 1148072
25 piece
Downloads

Download

Download

REACH Declaration of conformity ACMHB M10x60 ZL / 1148072 , 0.12MB , pdf
Download
RoHS Declaration of conformity ACMHB M10x60 ZL / 1148072 , 0.12MB , pdf
Download

ACMHB M10x60 ZL / 1148072
Download
