- Product description
-

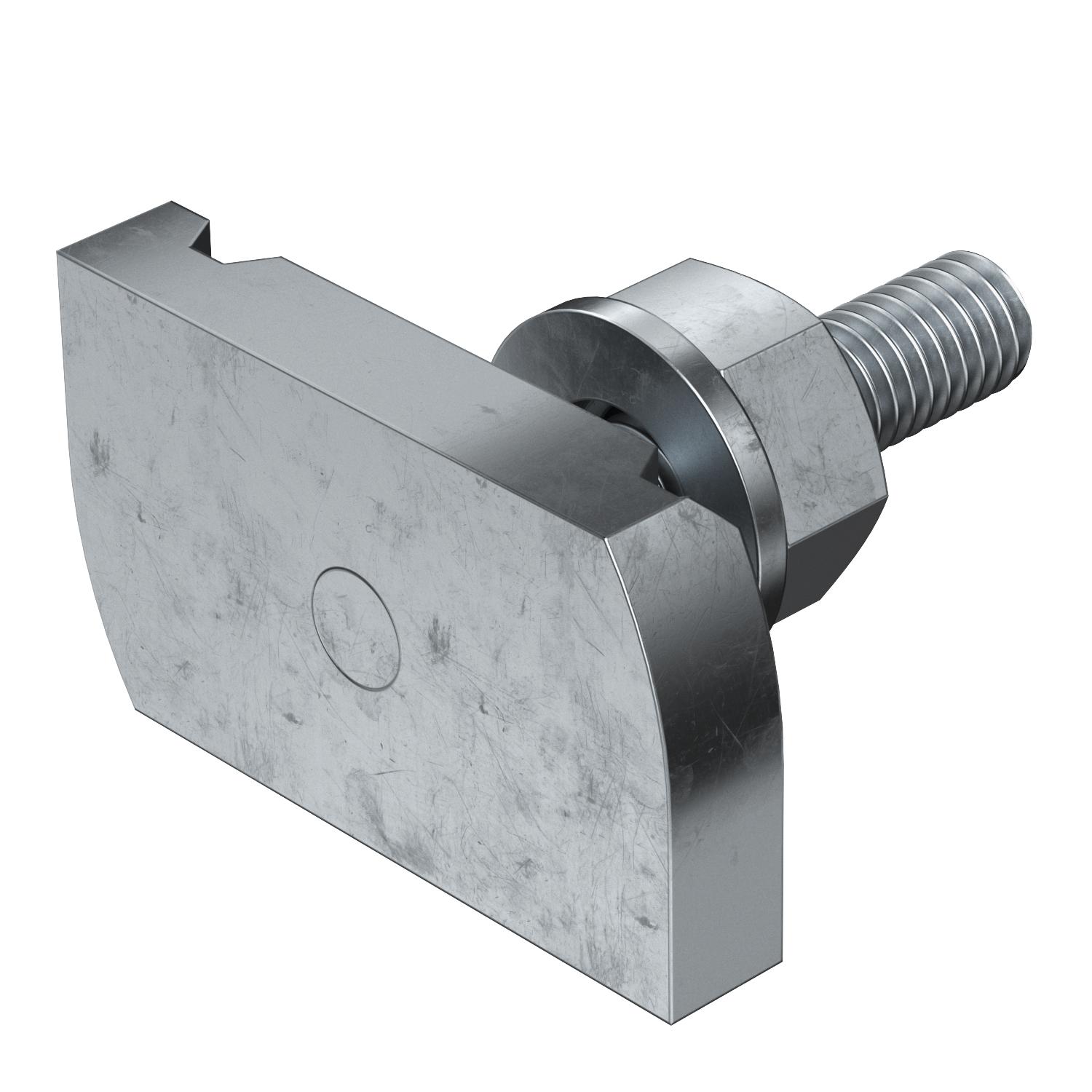

Product descriptionHammer-head bolt for use with MS4121 and MS4141 profile rails
- Technical data
-
Technical data

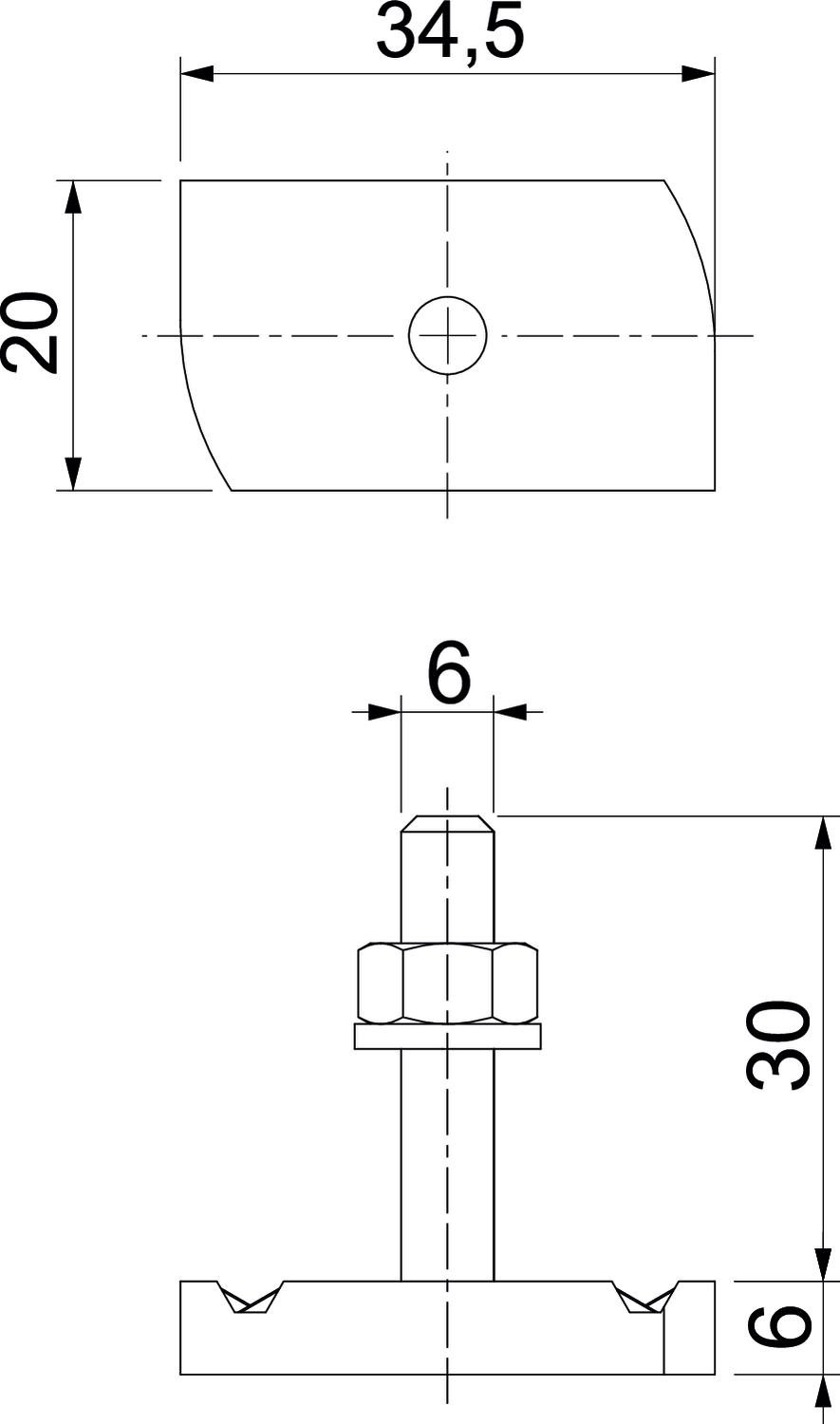

CO₂ Footprint (GWP) Cradle-to-Gate 0,004 kg CO₂e / 1 Piece Dimension M6x30mm Dimension H 6 mm Dimension L 30 mm Height 6 mm Length 34,5 mm Material Steel Suitable for mounting rail yes Surface Zinc slat Thread M 6 x 30 Torque 3,3 Nm Washer Ø 12 mm Width 20 mm - All types
-
All types
- Downloads
-
Data sheet MS41HB M6x30 ZL / 1148306 , 0.17MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity MS41HB M6x30 ZL / 1148306 , 0.04MB , pdf
