- Product description
-
Product description

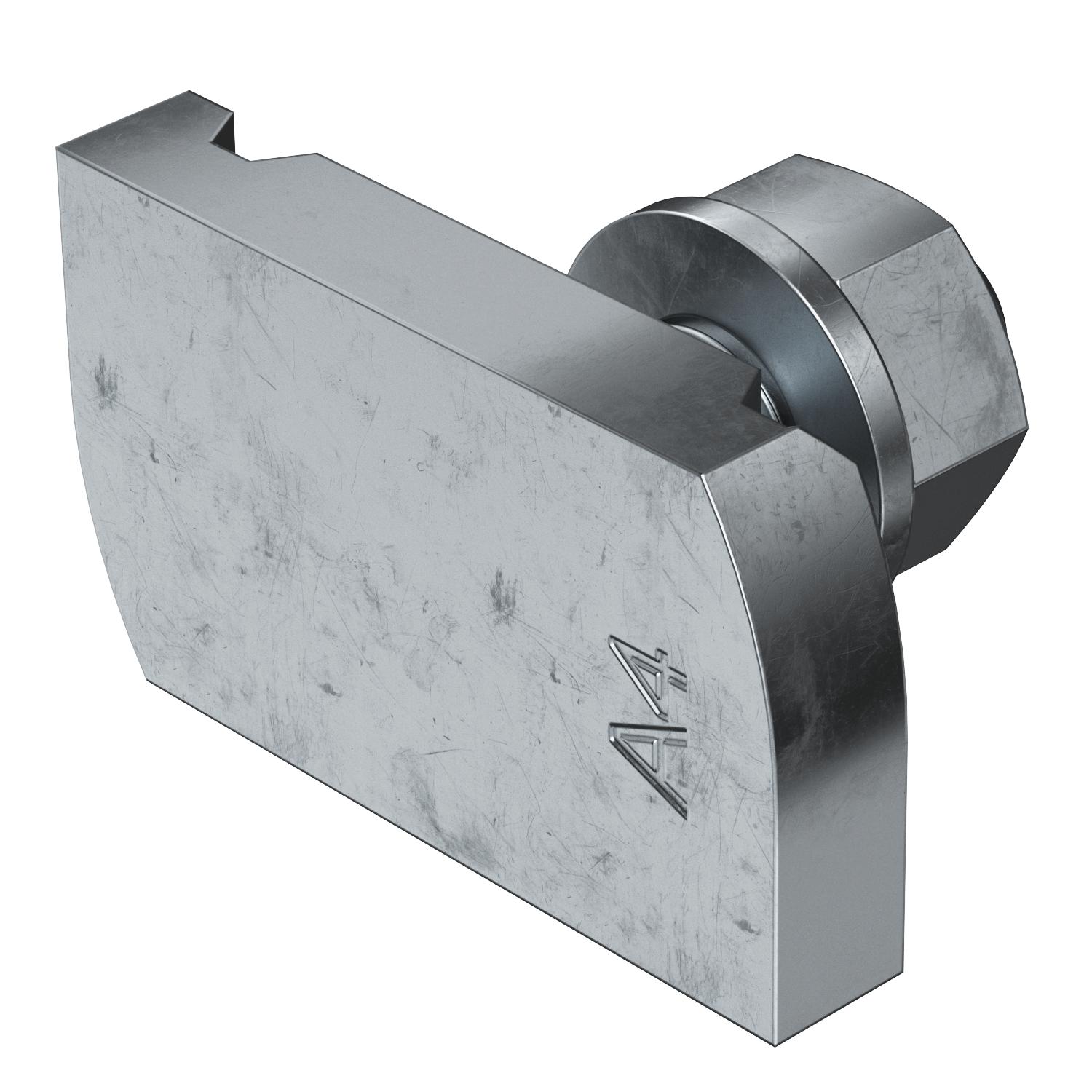

Hammer-head bolt for use with MS4121 and MS4141 profile rails
- Technical data
-

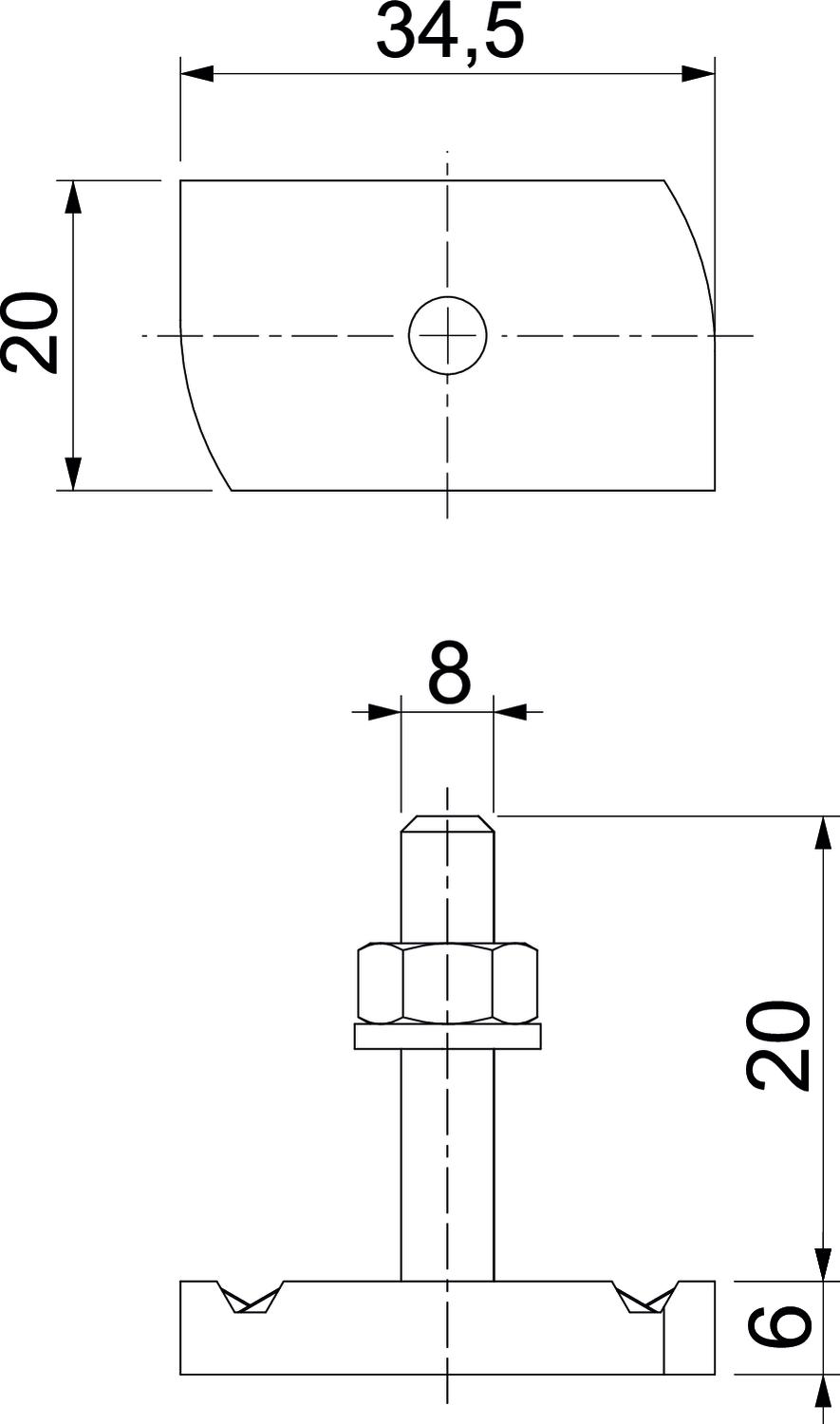

Dimensions
Dimension H 6 mm Dimension L 20 mm Height 6 mm Length 34,5 mm Material Steel Suitable for mounting rail yes Surface Zinc slat Thread M8x20 Torque 8 Nm Washer Ø 16 mm Width 20 mm - All types
-
All types
- Downloads
-
Brochure Rail systems , 2.10MB , pdfDeclaration of conformity MS41HB M8x20 ZL / 1148350 , 0.04MB , pdf
