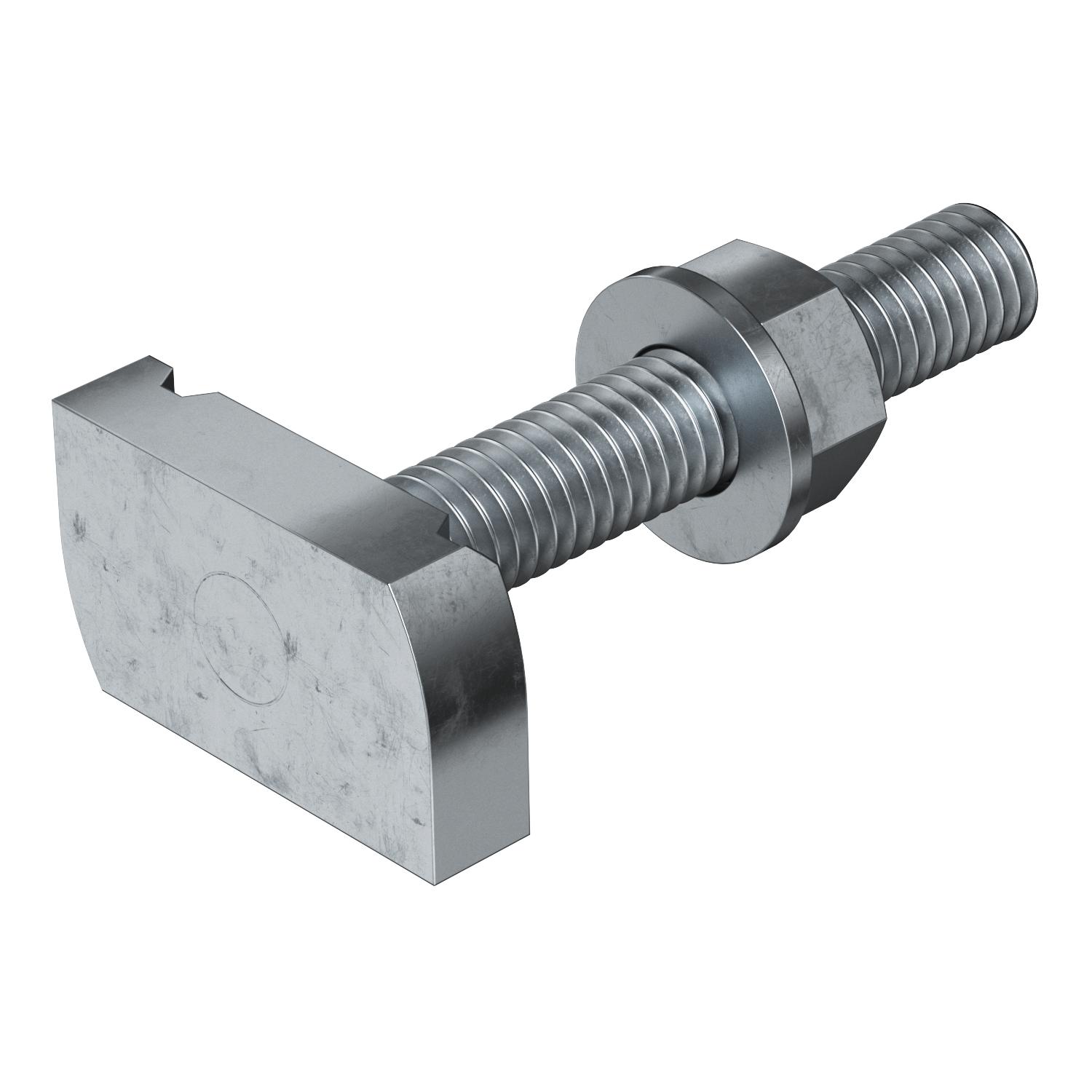

Hammer-head bolt ZL

Item no. 1148326 | EAN 4012196490127

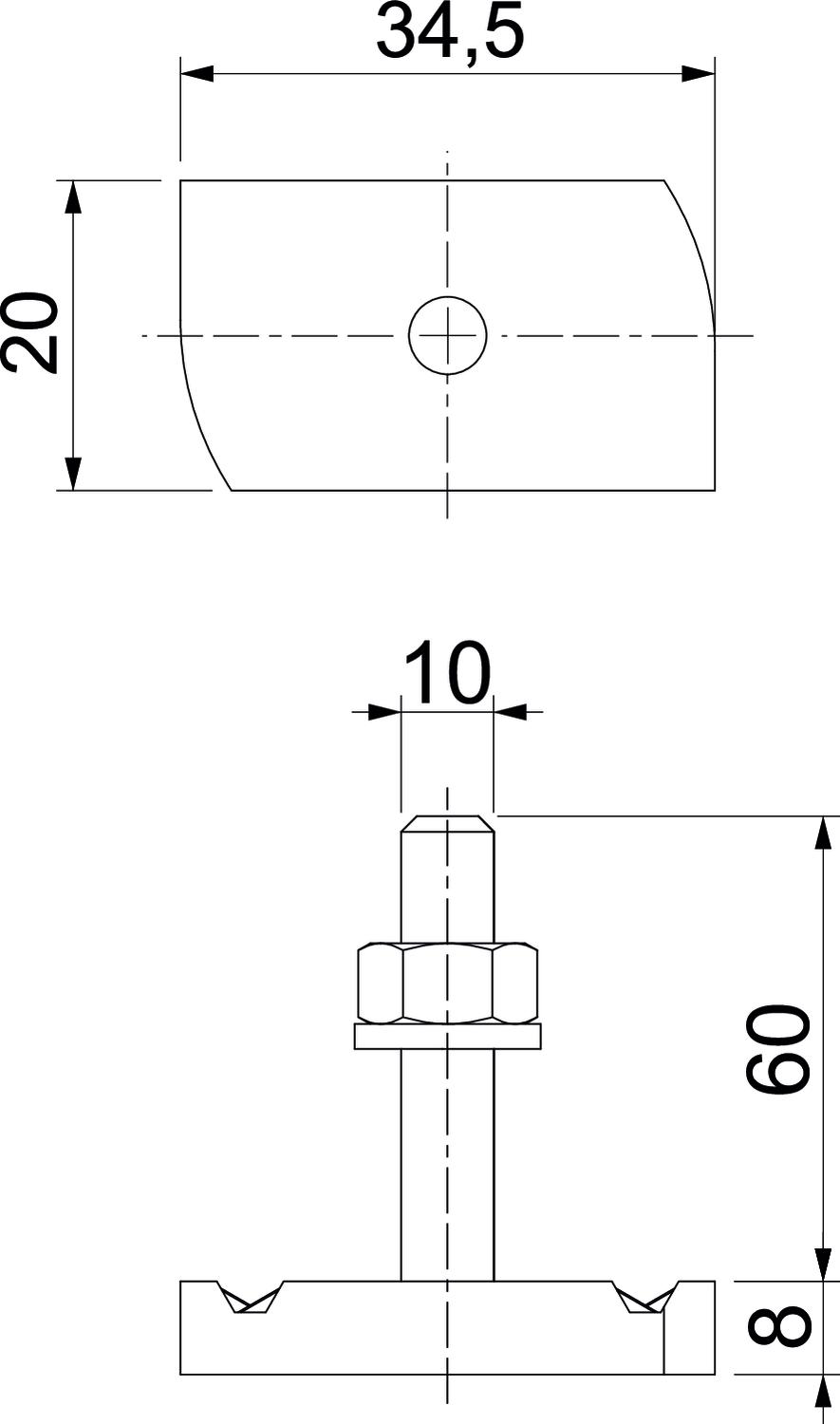

34.5 mm
20 mm
Product description

Product description

Hammer-head bolt for use with MS4121 and MS4141 profile rails
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 22 mm
Technical data

Technical data

Dimension M10x60mm
Dimension H 8 mm
Dimension L 60 mm
Height 8 mm
Length 34,5 mm
Material Steel
Suitable for mounting rail yes
Surface Zinc slat
Thread M 10 x 60
Torque 16 Nm
Washer Ø 20 mm
Width 20 mm
All types

All types

Types Length Width Height Thread Item no. Quantity SSU
MS41HB M6x30 ZL 34.5 mm 20 mm 6 mm M 6 x 30 1148306
50 piece
MS41HB M8x30 ZL 34.5 mm 20 mm 6 mm M 8 x 30 1148310
50 piece
MS41HB M8x60 ZL 34.5 mm 20 mm 6 mm M 8 x 60 1148314
25 piece
MS41HB M8x100 ZL 34.5 mm 20 mm 6 mm M 8 x 100 1148318
20 piece
MS41HB M10x30 ZL 34.5 mm 20 mm 8 mm M 10 x 30 1148322
50 piece
MS41HB M10x60 ZL 34.5 mm 20 mm 8 mm M 10 x 60 1148326
25 piece
MS41HB M10x100ZL 34.5 mm 20 mm 8 mm M 10 x 100 1148330
20 piece
MS41HB M12x30 ZL 34.5 mm 20 mm 9 mm M 12 x 30 1148334
50 piece
MS41HB M12x60 ZL 34.5 mm 20 mm 9 mm M 12 x 60 1148338
25 piece
MS41HB M12x100ZL 34.5 mm 20 mm 9 mm M 12 x 100 1148342
20 piece
MS41HB M8x20 ZL 34.5 mm 20 mm 6 mm M8x20 1148350
25 piece
