- Product description
-
Product description

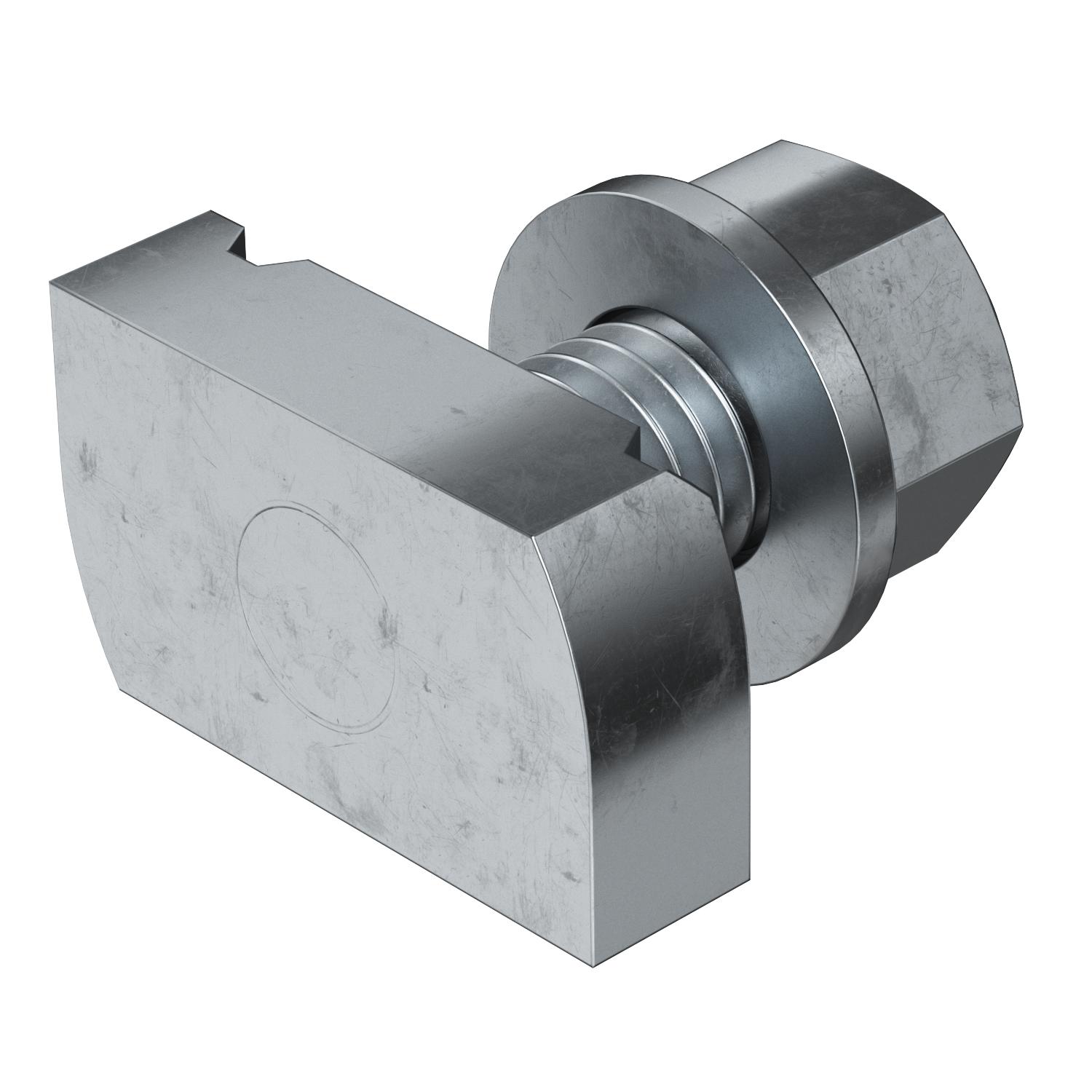

Hammer-head bolt for use with MS4121 and MS4141 profile rails
- Technical data
-
Technical data

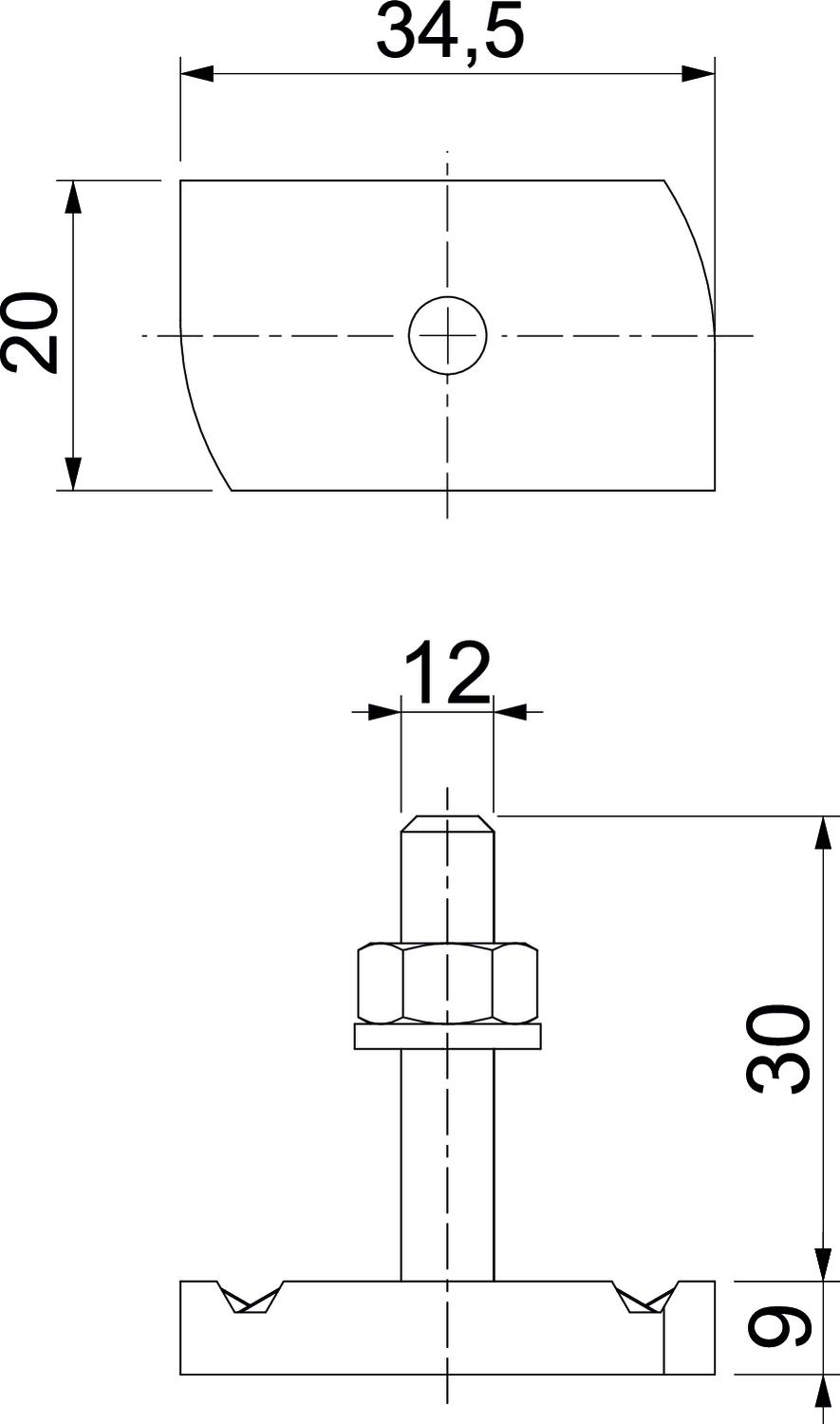

Dimension M12x30mm Dimension H 9 mm Dimension L 30 mm Height 9 mm Length 34,5 mm Material Steel Suitable for mounting rail yes Surface Zinc slat Thread M 12 x 30 Torque 27 Nm Washer Ø 24 mm Width 20 mm - All types
-
All types
- Downloads
-
Data sheet MS41HB M12x30 ZL / 1148334 , 0.17MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity Declaration of conformity ,Declaration of conformity Declaration of conformity ,
