Hammer insert, type 2530, for earth rod | 25

morepic-1

morepic-2

Hammer insert, type 2530, for earth rod

Item no. 3043452 | EAN 4012195243618

Item no. / Types

for earth rods

Product description

Product description

• Manufactured by Bosch USH 10, HSH 10

• Fits earth rod system ST, BP and OMEX

• Hardened

Technical data

Technical data

Dimension	25mm
Earther diameter	25 mm

for earth rods	25 mm
Material	Steel

All types

All types

Types	for earth rods	Item no.	Quantity	SSU
2530 20	20 mm	3043401	piece	1 piece
2530 25	25 mm	3043452	piece	1 piece

Downloads

Data sheet 2530 25 / 3043452 , 0.16MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 2530 25 / 3043452 , 0.06MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

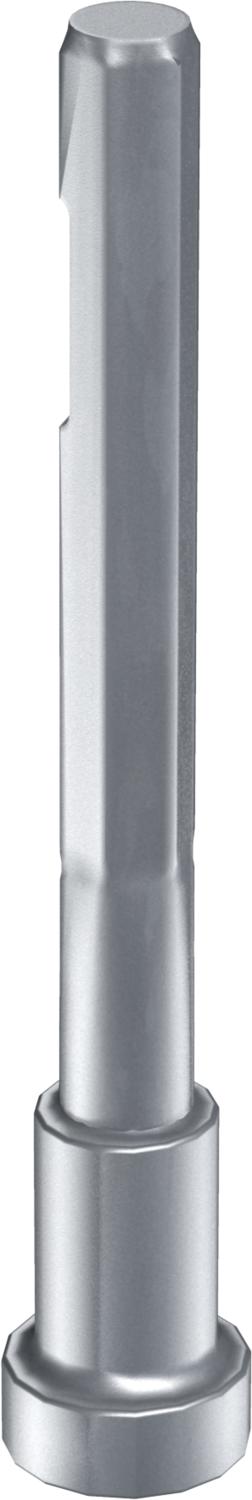

Product graphic 2530 25 / 3043452, 27.45 kB, jpg

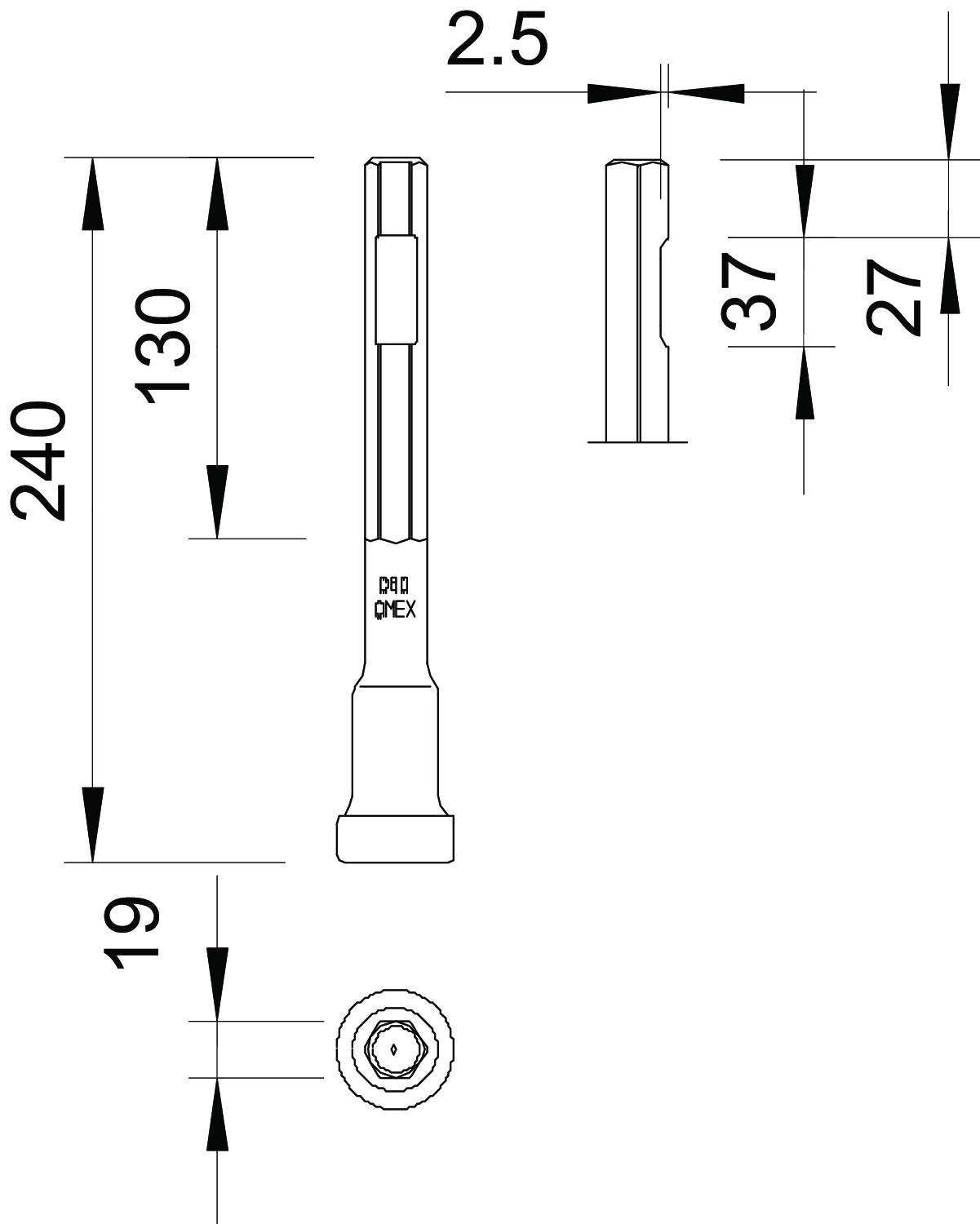

Scale drawing 2530 25 / 3043452, 59.39 kB, jpg

2530 25 / 3043452

Hammereinsatz Typ 2530 für Staberder ST, BP und OMEX.rfa, 292.00 kB
