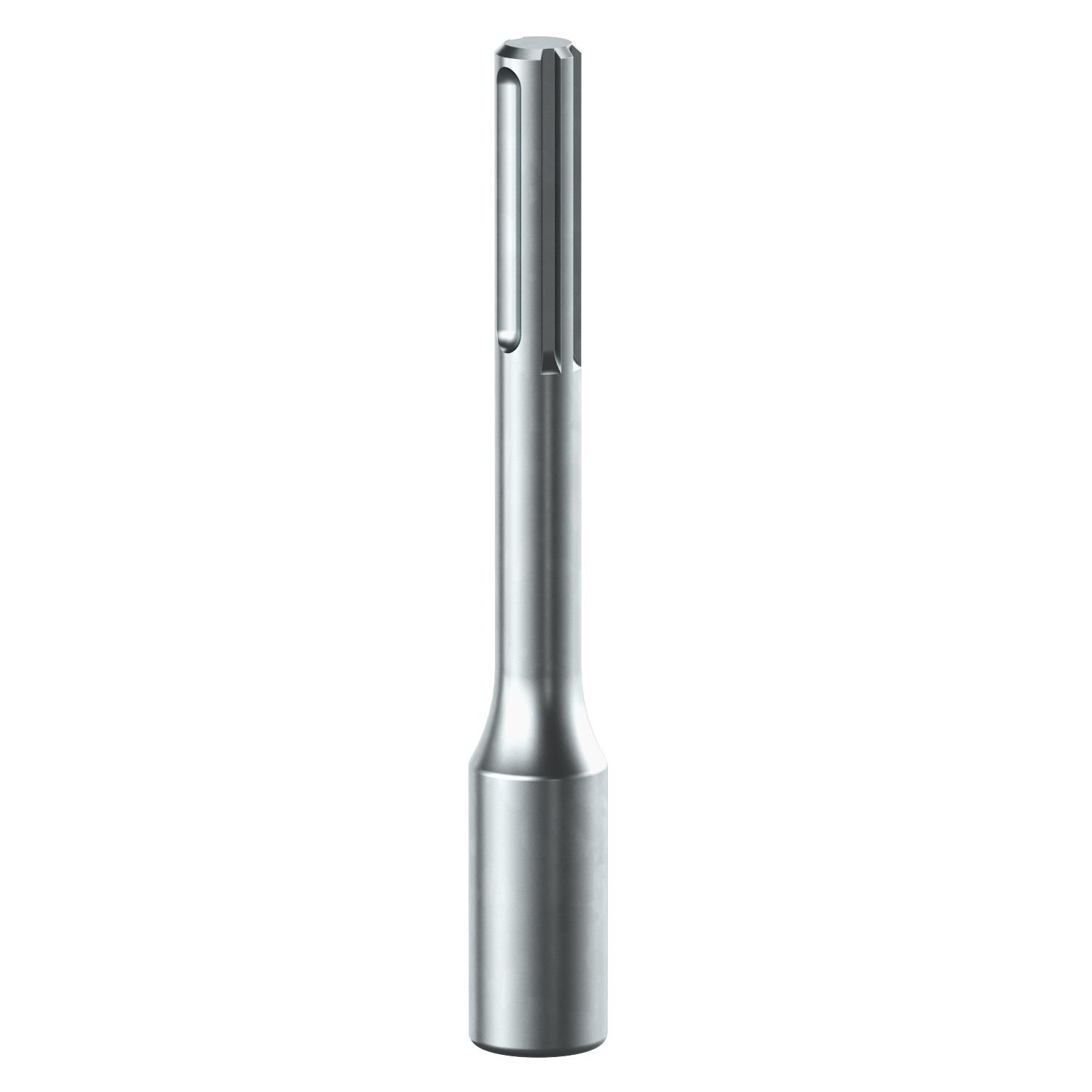

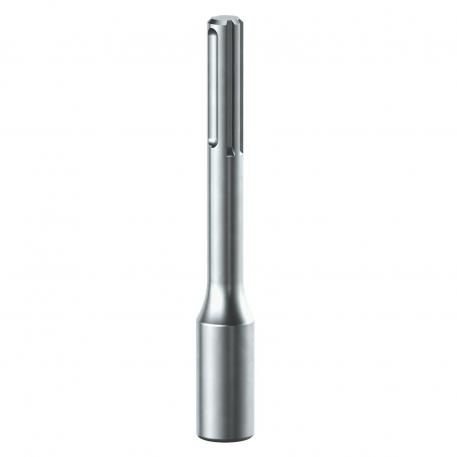

Hammer insert, type 2536, for earth rod

Item no. / Types

for earth rods

Product description

Product description

• Fits earth rod system ST, BP and OMEX

• For vibration hammers with SDS- Max/TEY- mounting

• Hardened

Technical data

Dimension	25mm
Earther diameter	25 mm

for earth rods	25 mm
Material	Steel

All types

All types

Types	for earth rods	Item no.	Quantity	SSU
2536 25	25 mm	3044831	piece	1 piece
2536 20	20 mm	3044904	piece	1 piece

Downloads

Data sheet 2536 25 / 3044831 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

Download

Download

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

2536 25 / 3044831
