Hat profile rail 15 x 5 mm 189 | For T 250 lengthwise | Steel | Electrogalvanized, transparently passivated
morepic-1 morepic-2 video-1 video-2

Hat profile rail 15 x 5 mm

Item no. 1115278 | EAN 4012195897996

Steel
Electrogalvanized, transparently passivated
Product description

Product description

Hat profile rail 15 x 5 mm to DIN EN 60715 (formerly DIN EN 50045).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 15 mm
  • Bolt-firing tool
  • Nail device
Technical data

Technical data

Dimension 189x15x7,5
Hole shape (ETIM) Without
Material Steel
Material thickness 1 mm
Surface Electrogalvanized, transparently passivated
Version for For T 250 lengthwise
Version, rails Support rail DIN EN 60715

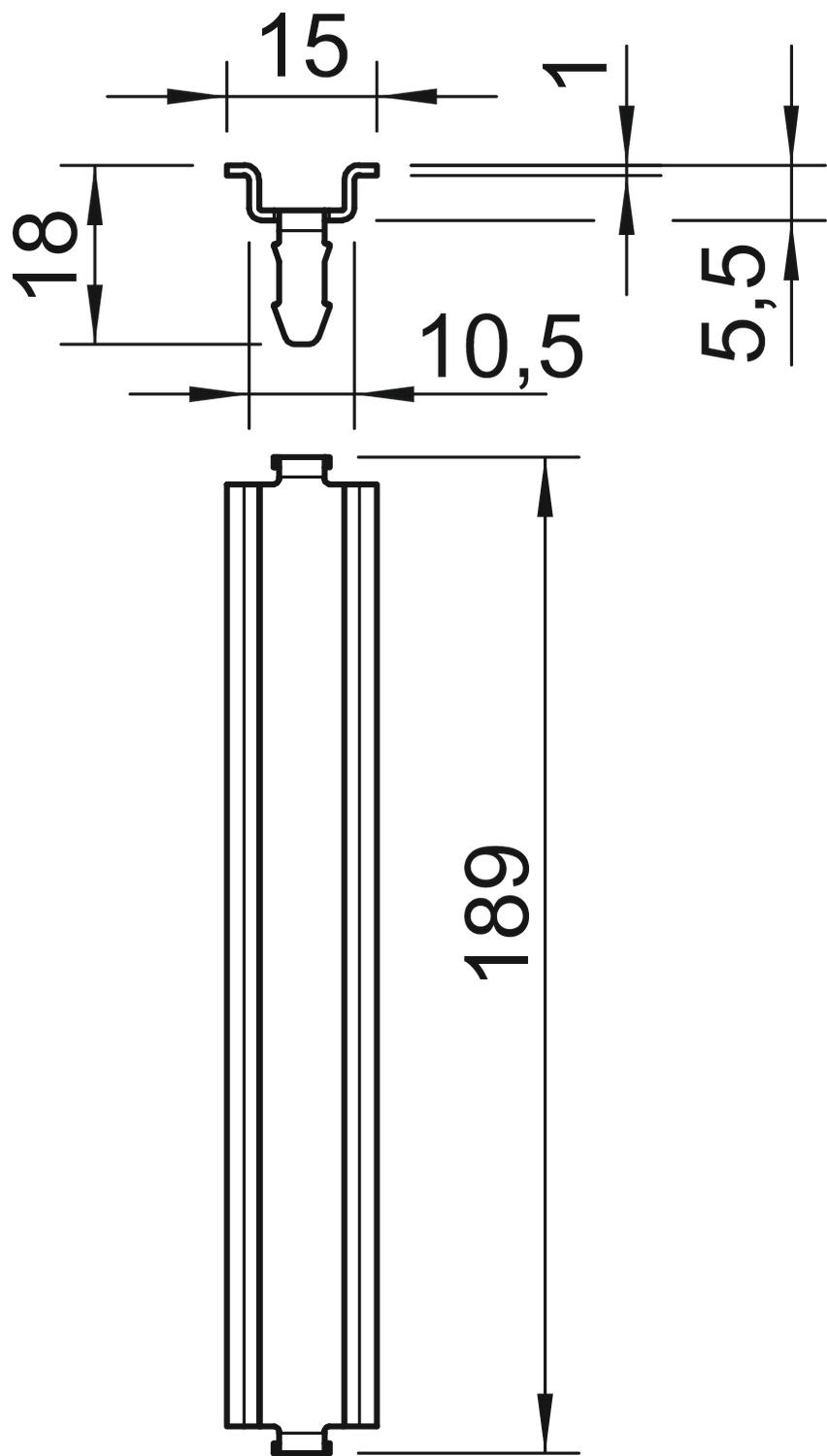

Dimensions

Height 5 mm
Length 189 mm
Width 15 mm
All types

All types

Types Length Version for Material Surface Item no. Quantity SSU
46277 T160 Q GTP 99 mm For T160 crosswise + T100 lengthwise Steel Electrogalvanized, transparently passivated 1115270
10 piece
46277 T250 Q GTP 139 mm For T250 crosswise + T160 lengthwise Steel Electrogalvanized, transparently passivated 1115274
10 piece
46277 T250 L GTP 189 mm For T 250 lengthwise Steel Electrogalvanized, transparently passivated 1115278
10 piece
46277 T350 Q GTP 161 mm For T 350 crosswise Steel Electrogalvanized, transparently passivated 1115282
10 piece
46277 T350 L GTP 168 mm For T 350 lengthwise Steel Electrogalvanized, transparently passivated 1115286
10 piece
