Hat profile rail 35 x 7.5 mm

Item no. 1115382 | EAN 4012195440994

Item no. / Types

Length

Version for

Material	Steel

Surface	Strip galvanized

Product description

Product description

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).

Technical data

Technical data

Dimension	119x35x7,5
Height	7,5 mm
Hole shape (ETIM)	Long slot
Length	118 mm
Material	Steel

Material thickness	1 mm
Surface	Strip galvanized
Version for	For T100 lengthwise + T160 crosswise
Version, rails	Support rail DIN EN 60715
Width	35 mm

All types

All types

Types	Length	Version for	Material	Surface	Item no.	Quantity	SSU
2069 T60 FS	89 mm	For T60 lengthwise + T100 crosswise	Steel	Strip galvanized	1115380	piece	10 piece
2069 T100 FS	118 mm	For T100 lengthwise + T160 crosswise	Steel	Strip galvanized	1115382	piece	10 piece
2069 T160 FS	157 mm	For T160 lengthwise + T250, T350 crosswise	Steel	Strip galvanized	1115384	piece	10 piece
2069 T250 FS	206 mm	For T 250 lengthwise	Steel	Strip galvanized	1115386	piece	10 piece
2069 T350 FS	245 mm	For T 350 lengthwise	Steel	Strip galvanized	1115388	piece	10 piece

Downloads

Data sheet 2069 T100 FS / 1115382 , 0.20MB , pdf

Brochure Rail systems , 2.10MB , pdf

Declaration of conformity 2069 T100 FS / 1115382 , 0.10MB , pdf

REACH Declaration of conformity 2069 T100 FS / 1115382 , 0.12MB , pdf

Download

RoHS Declaration of conformity 2069 T100 FS / 1115382 , 0.12MB , pdf

Download

Product graphic 2069 T100 FS / 1115382, 43.49 kB, jpg

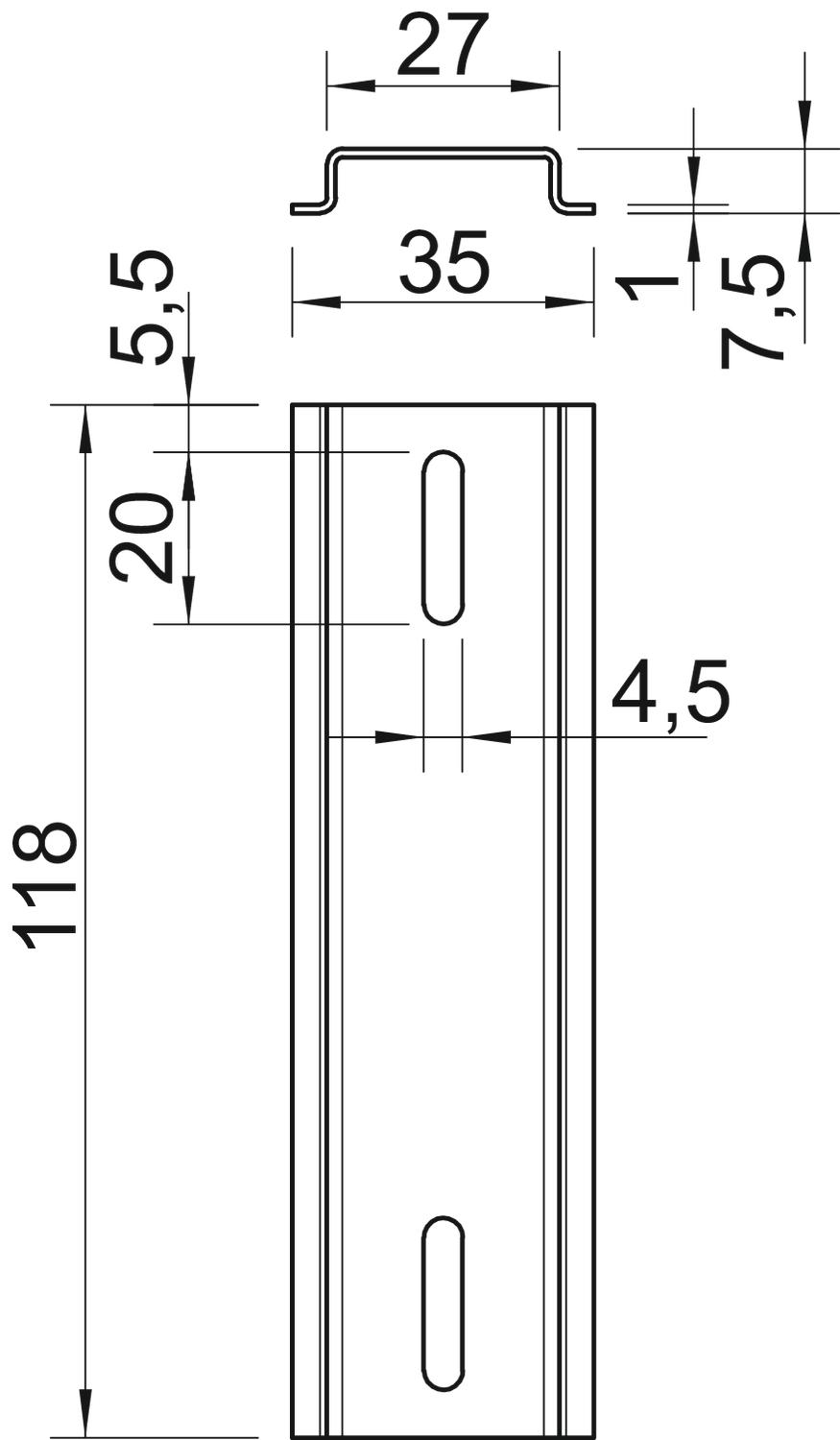

Scale drawing 2069 T100 FS / 1115382, 57.39 kB, jpg

2069 T100 FS / 1115382
