Hat profile rail, perforated FS
Item no. 1115804 | EAN 4012195045977
- Product description
-

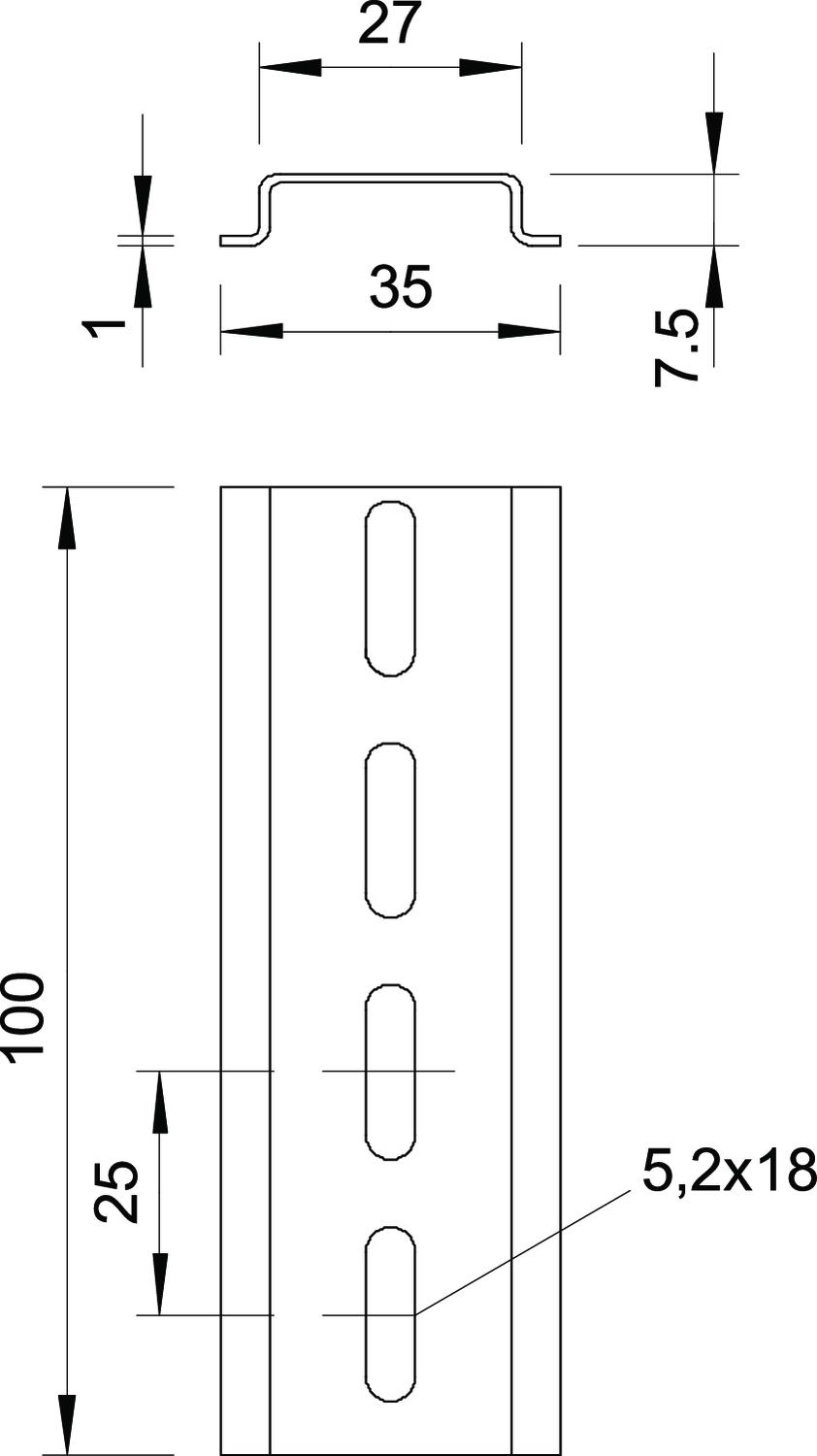

Product descriptionHat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
-
- Technical data
-
Technical data
Bundle 50 m CO₂ Footprint (GWP) Cradle-to-Gate 0,806 kg CO₂e / 1 Meter Dimension 2000x35x7,5 Drill hole spacing, centre 25 mm Height 7,5 mm Hole shape (ETIM) Long slot Length 2000 mm Material Steel Material thickness 1 mm Surface Strip galvanized Version for Perforated Version, rails Support rail DIN EN 60715 Width 35 mm - All types
- Downloads
-
Data sheet 2069 L 2M FS / 1115804 , 0.20MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity 2069 L 2M FS / 1115804 , 0.10MB , pdfREACH Declaration of conformity 2069 L 2M FS / 1115804 , 0.12MB , pdfRoHS Declaration of conformity 2069 L 2M FS / 1115804 , 0.13MB , pdf
