Hat profile rail set

Item no. 1115887 | EAN 4012196614288

Item no. / Types

Length

Product description

Product description

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).

Technical data

Technical data

Dimension	248x35x7,5
Height	23 mm
Length	252 mm

Version, rails	Support rail DIN EN 60715
Width	62 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
2069 X06 FS	118 mm	1115876	piece	20 piece
2069 X10 FS	161 mm	1115879	piece	20 piece
2069 X16 FS	211 mm	1115882	piece	20 piece
2069 X25 FS	252 mm	1115887	piece	20 piece

Downloads

Brochure Rail systems , 2.10MB , pdf

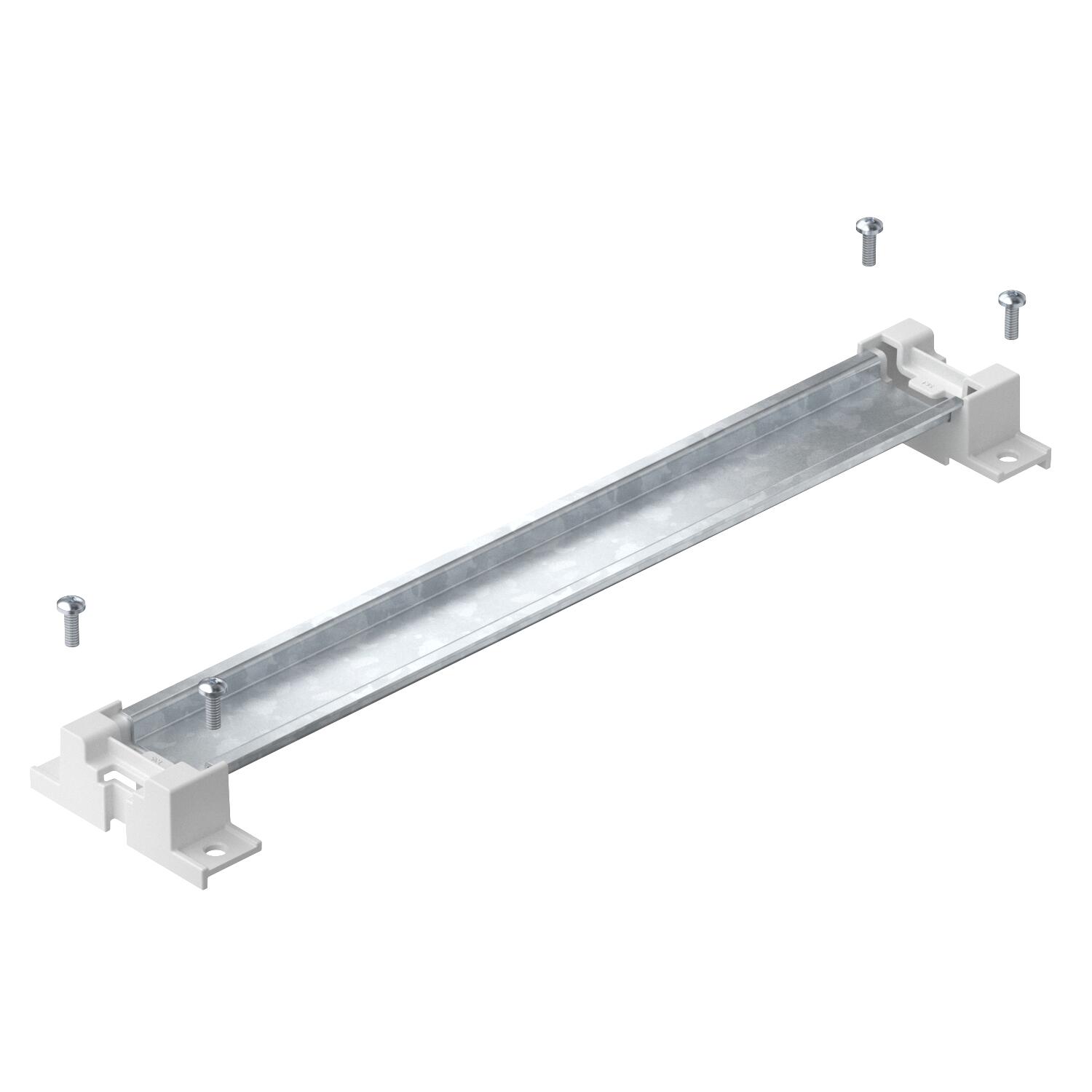

Product graphic 2069 X25 FS / 1115887, 50.32 kB, jpg

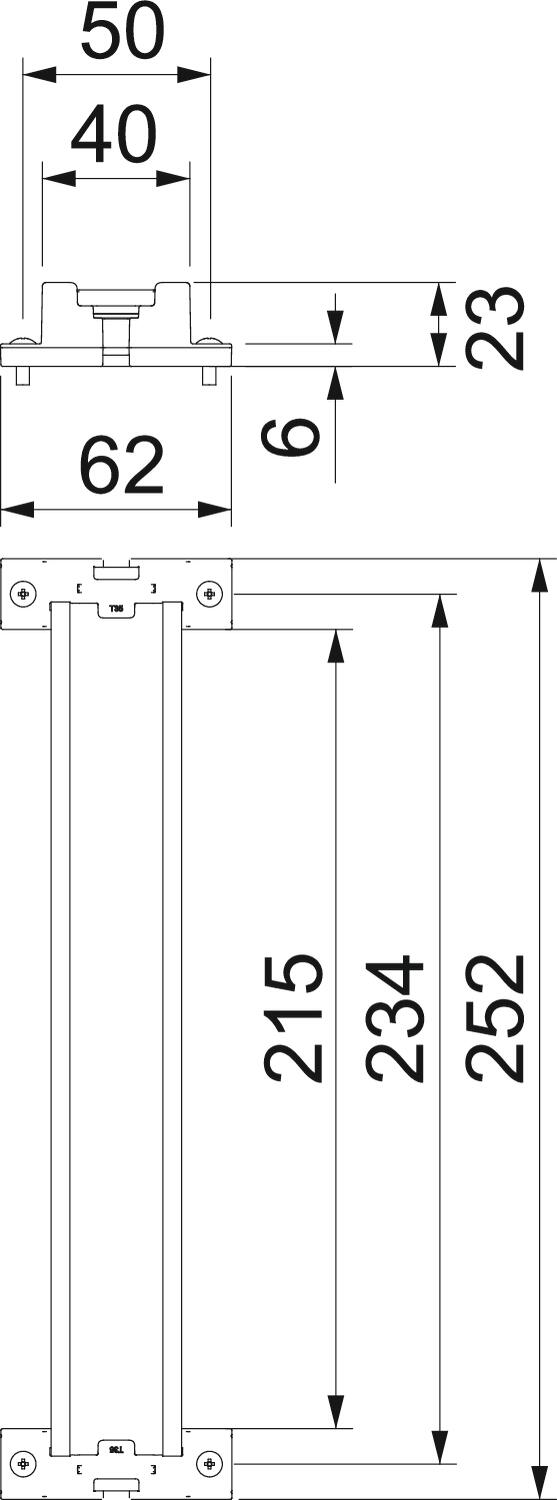

Scale drawing 2069 X25 FS / 1115887, 50.95 kB, jpg

2069 X25 FS / 1115887
