Hat profile rail, unperforated

Item no. 1115618 | EAN 4012195045250

Item no. / Types

Length

Version for	Unperforated

Material	Steel

Surface

Product description

Product description

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).

Technical data

Technical data

Bundle	50 m
CO₂ Footprint (GWP) Cradle-to-Gate	0,641 kg CO₂e / 1 Meter
Dimension	2000x35x7,5
Height	7,5 mm
Hole shape (ETIM)	Without
Length	2000 mm

Material	Steel
Material thickness	1 mm
Surface	Bright
Version for	Unperforated
Version, rails	Support rail DIN EN 60715
Width	35 mm

All types

All types

Types	Length	Version for	Material	Surface	Item no.	Quantity	SSU
2069 2M BK	2000 mm	Unperforated	Steel	Bright	1115618	m	2 m
2069 2M FS	2000 mm	Unperforated	Steel	Strip galvanized	1115626	m	50 m
2069 2M GTP	2000 mm	Unperforated	Steel	Electrogalvanized, transparently passivated	1115650	m	2 m
2069 1M FS	1000 mm	Unperforated	Steel	Strip galvanized	1115677	m	25 m
2069 1M GTP	1000 mm	Unperforated	Steel	Electrogalvanized, transparently passivated	1115685	m	25 m
2069 3M BK	3000 mm	Unperforated	Steel	Bright	1115855	m	3 m

Downloads

Data sheet 2069 2M BK / 1115618 , 0.17MB , pdf

Brochure Rail systems , 2.10MB , pdf

EU declaration of conformity 2069 2M BK / 1115618 , 0.10MB , pdf

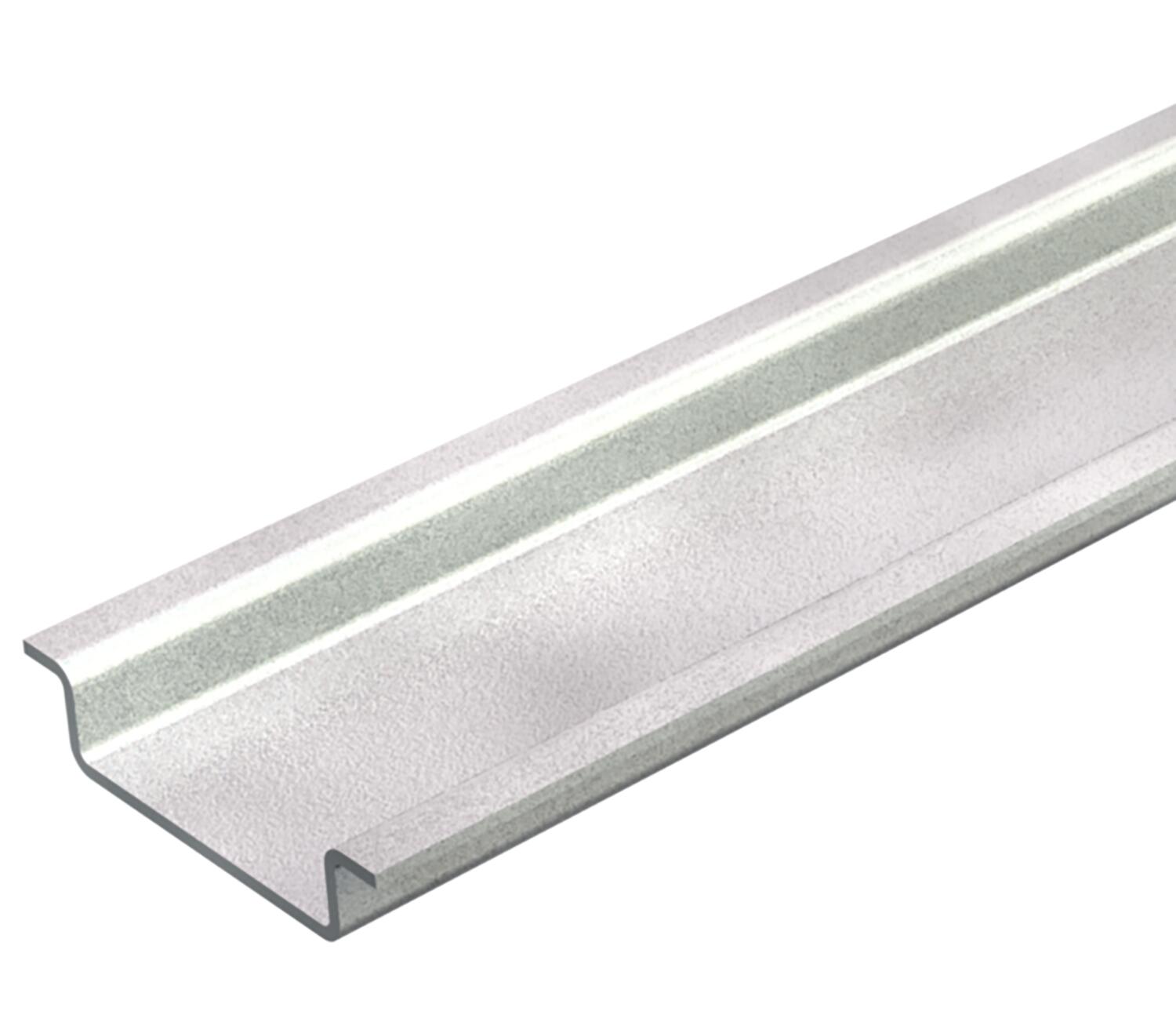

Product graphic 2069 2M BK / 1115618, 30.23 kB, jpg

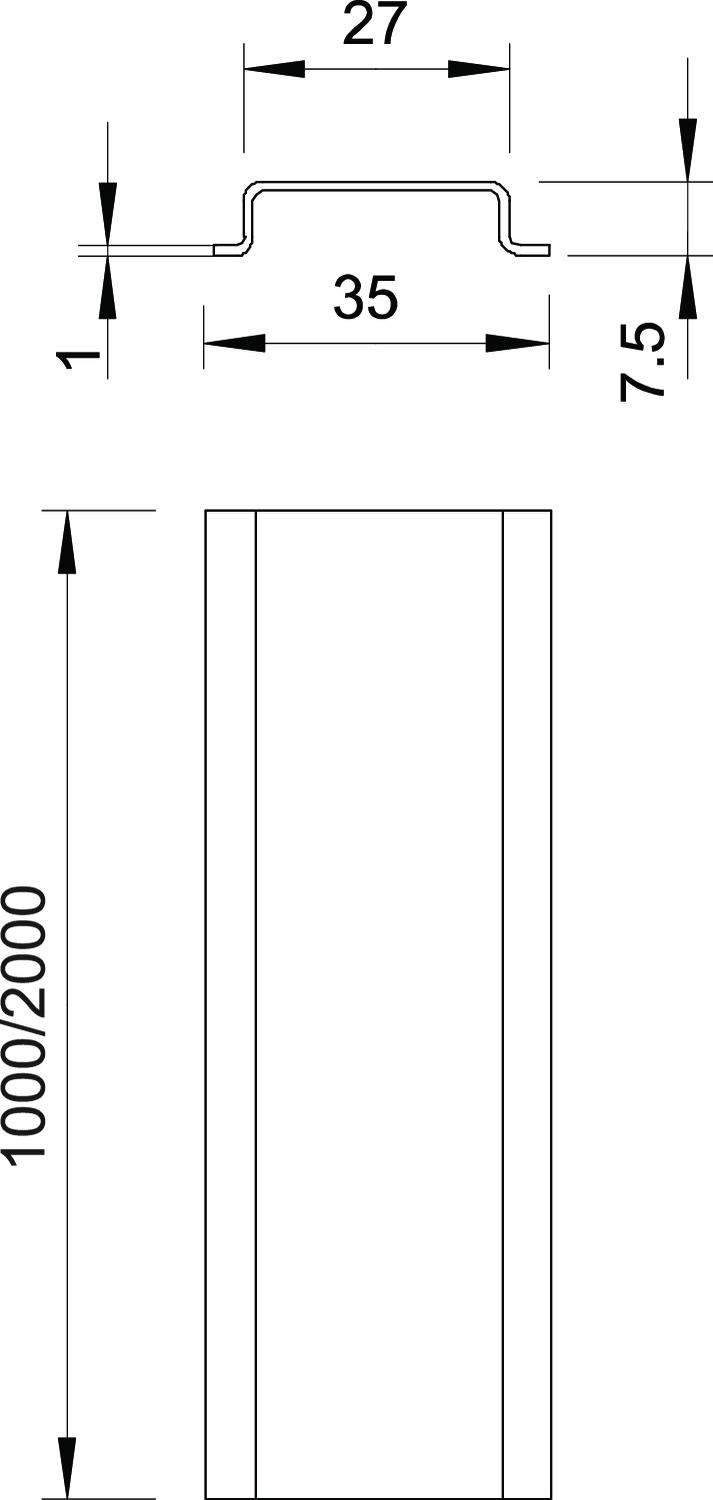

Scale drawing 2069 2M BK / 1115618, 38.24 kB, jpg

2069 2M BK / 1115618

1115618_KSTP1.stp, 3.28 MB
