- Product description
-
Product description

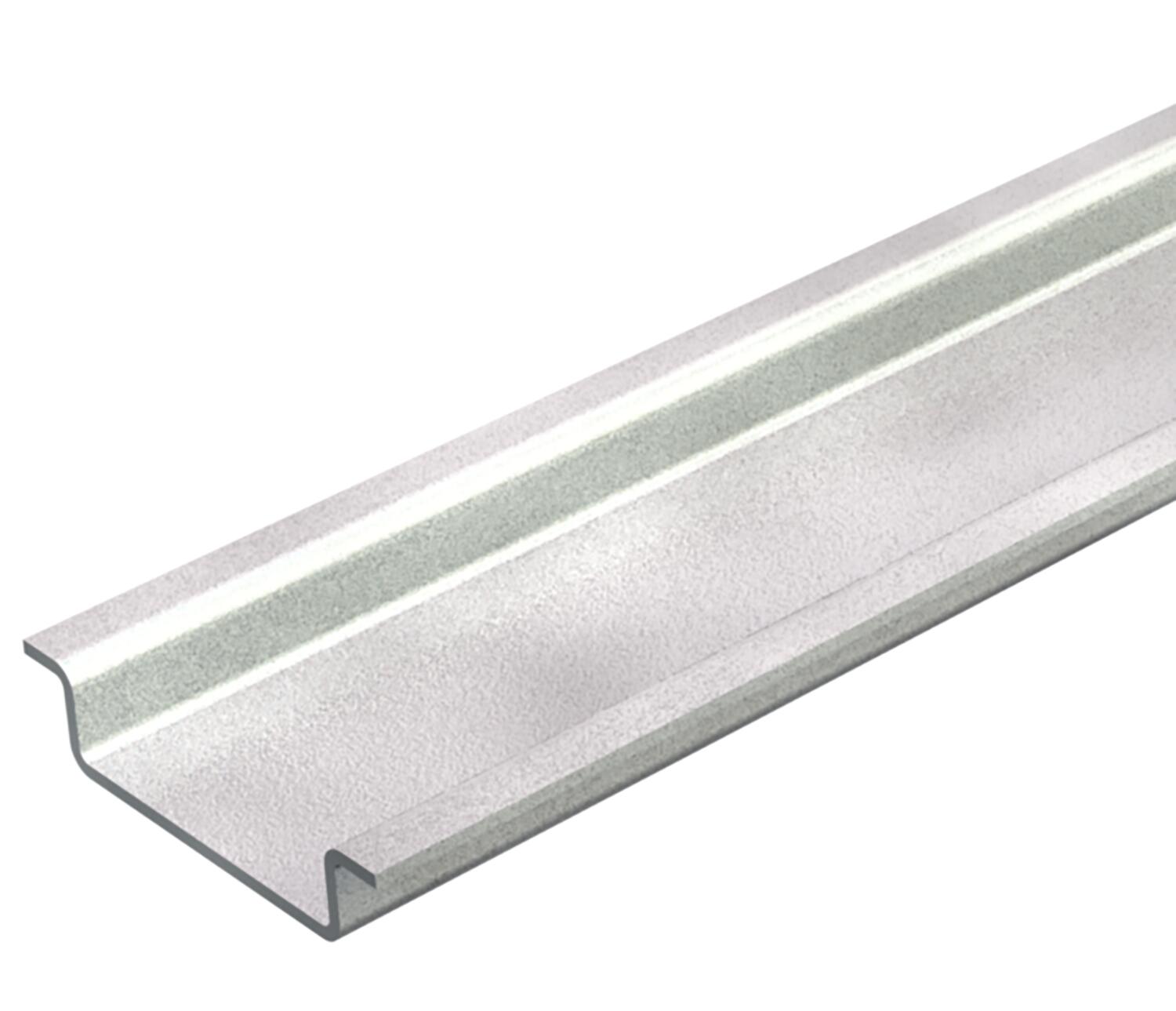

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
-
- Technical data
-
Technical data
Bundle 25 m Dimension 1000x35x7,5 Hole shape (ETIM) Without Material Steel Material thickness 1 mm Surface Strip galvanized Version for Unperforated Version, rails Support rail DIN EN 60715 Dimensions

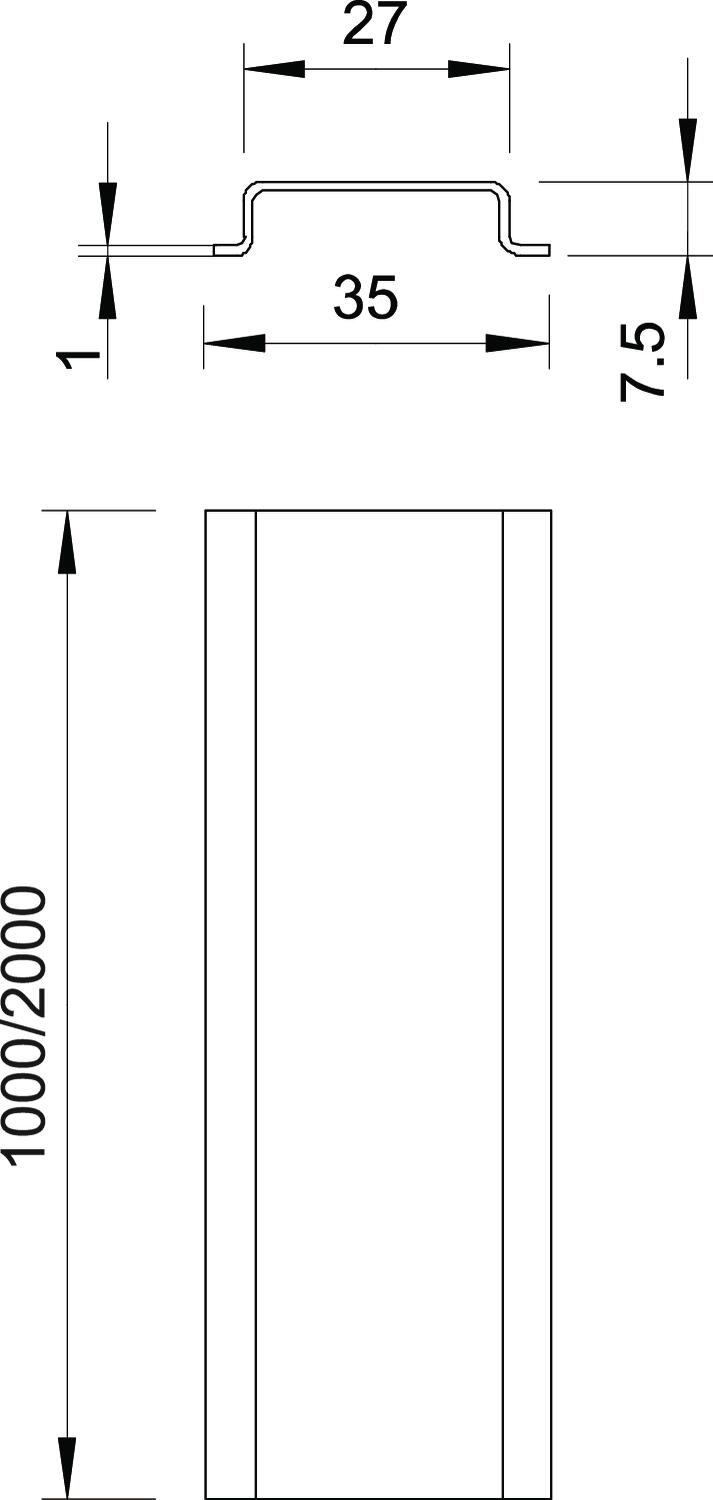

Height 7,5 mm Length 1000 mm Width 35 mm - All types
-
All types
- Downloads
-
Data sheet 2069 1M FS / 1115677 , 0.28MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity 2069 1M FS / 1115677 , 0.17MB , pdfREACH Declaration of conformity 2069 1M FS / 1115677 , 0.12MB , pdfRoHS Declaration of conformity 2069 1M FS / 1115677 , 0.12MB , pdf
