HDMI connection, 1 module, straight outlet, with connection cable
Item no. 6104826 | EAN 4012195899013
- Product description
-
Product descriptionMultimedia support with one HDMI connection socket, straight cable outlet, with labelling panel, short HDMI connection cable, socket-socket version. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
- Technical data
-
Technical data

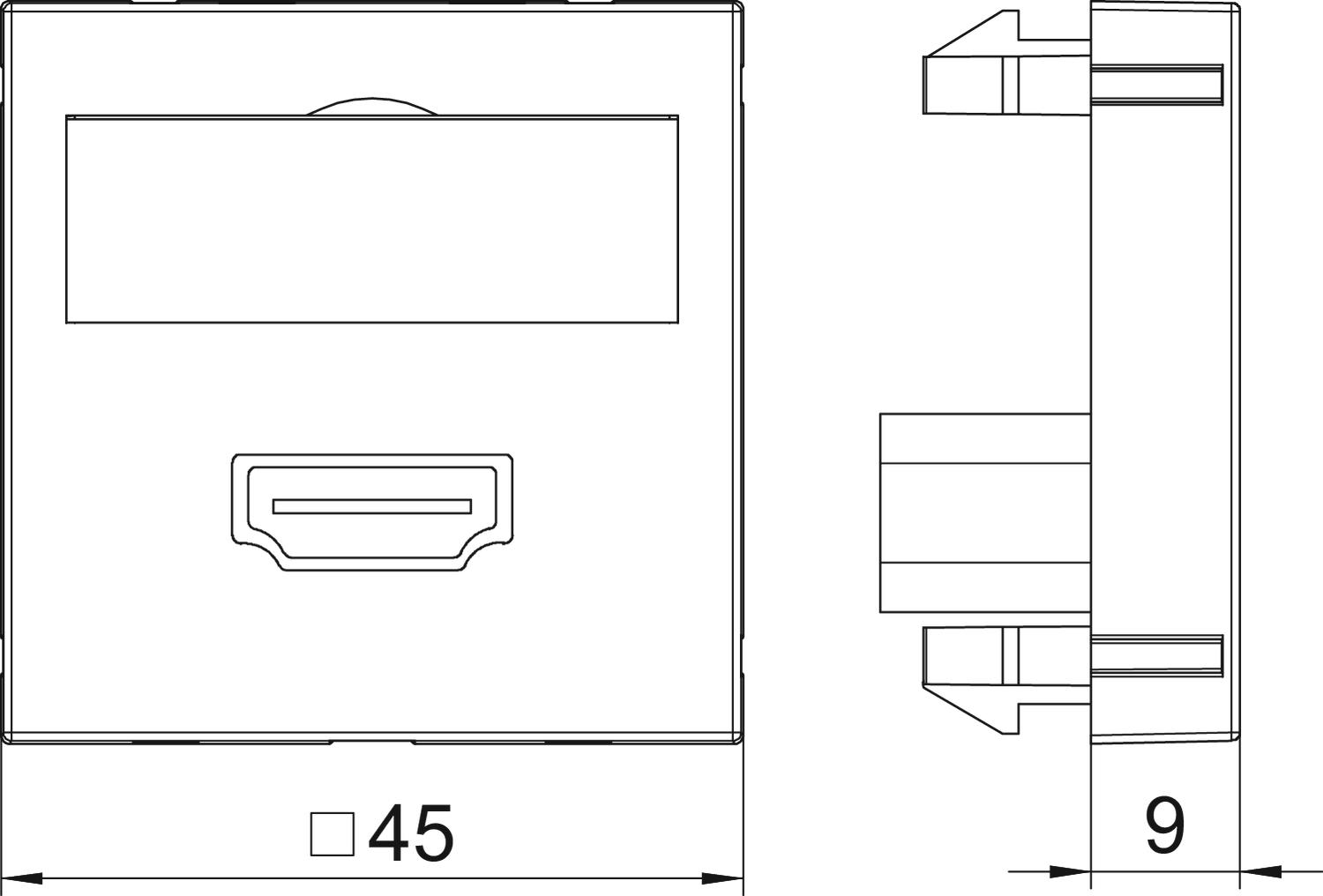

Colour Pure white; RAL 9010 Combination Basic element with central cover plate CO₂ Footprint (GWP) Cradle-to-Gate 0,2796 kg CO₂e / 1 Piece Depth 9 mm Dimension 45x45mm Fastening type Lock Halogen-free yes Height 45 mm Hinged cover no Labelling panel With labelling panel Lamp-wire connector no Material Polycarbonate Number of units 1 Protection rating IP20 Strain relief option no Support ring no Surface version Matt Transparent no Use HDMI Width 45 mm With dust protection no With printed label no - All types
- Downloads
-
Data sheet MTG-HD F RW1 / 6104826 , 0.16MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity MTG-HD F RW1 / 6104826 , 0.06MB , pdfREACH Declaration of conformity MTG-HD F RW1 / 6104826 , 0.12MB , pdfRoHS Declaration of conformity MTG-HD F RW1 / 6104826 , 0.12MB , pdfNo invitation to tender text is available for this product.
