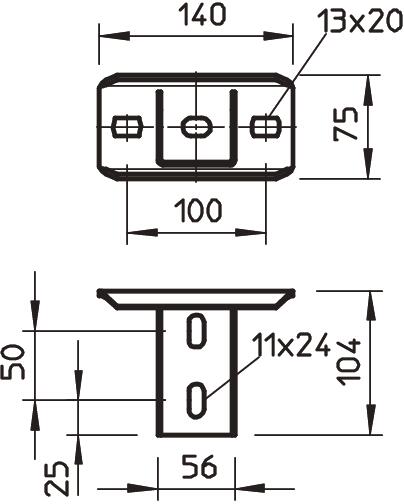

Head plate US 5 140 | 75 | 104

morepic-1

Head plate US 5

Item no. 6348904 | EAN 4012196168910

Item no. / Types	6348904 / KUS 5 FT

Length	140 mm

Width	75 mm

Height	104 mm

Product description

Product description

Head plate for mounting on US 5 supports. In combination with the US 5 support, suspended supports of any length can be created in situ. Also suitable for fixing vertical ladders, type SLM 50.

Technical data

Technical data

Angle range, max.	90 mm
Angle range, min.	90 mm
Dimension	140x75x104
Height	104 mm
Length	140 mm
Maintain electrical functions	yes
Material	Steel

Rustproof steel, pickled	no
Suitable for ceiling fastening	yes
Suitable for panel fastening	no
Suitable for profile shapes	U profile
Surface	Hot-dip galvanised
Version for	Screw head plate
Width	75 mm

All types

All types

Types	Length	Width	Height	Item no.	Quantity	SSU
KUS 5 FT	140 mm	75 mm	104 mm	6348904	piece	1 piece

Downloads

Data sheet KUS 5 FT / 6348904 , 0.14MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity KUS 5 FT / 6348904 , 0.13MB , pdf

REACH Declaration of conformity KUS 5 FT / 6348904 , 0.12MB , pdf

Download

RoHS Declaration of conformity KUS 5 FT / 6348904 , 0.13MB , pdf

Download

Mounting instructions Mounting instructions, U support systems , 0.04MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Product graphic KUS 5 FT / 6348904, 45.97 kB, jpg

KUS 5 FT / 6348904

6348904_KSTP1.stp, 110.19 kB
