- Product description
-
Product description

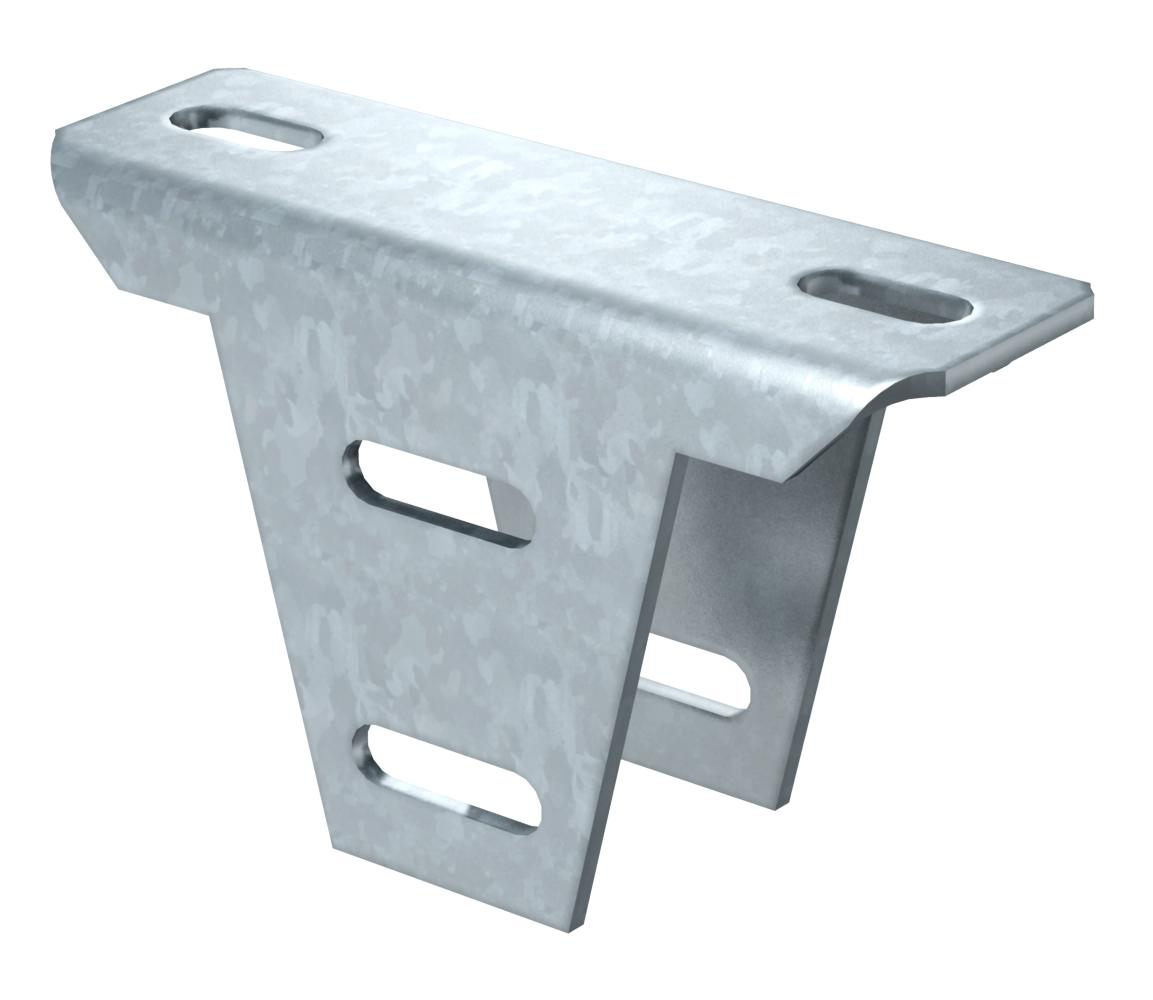

Variable head plate for mounting on US 5 supports. In combination with the US 5 support, suspended supports of any length can be created in situ. With the variable head plate, slopes of up to 30° can be compensated.
- Technical data
-
Technical data

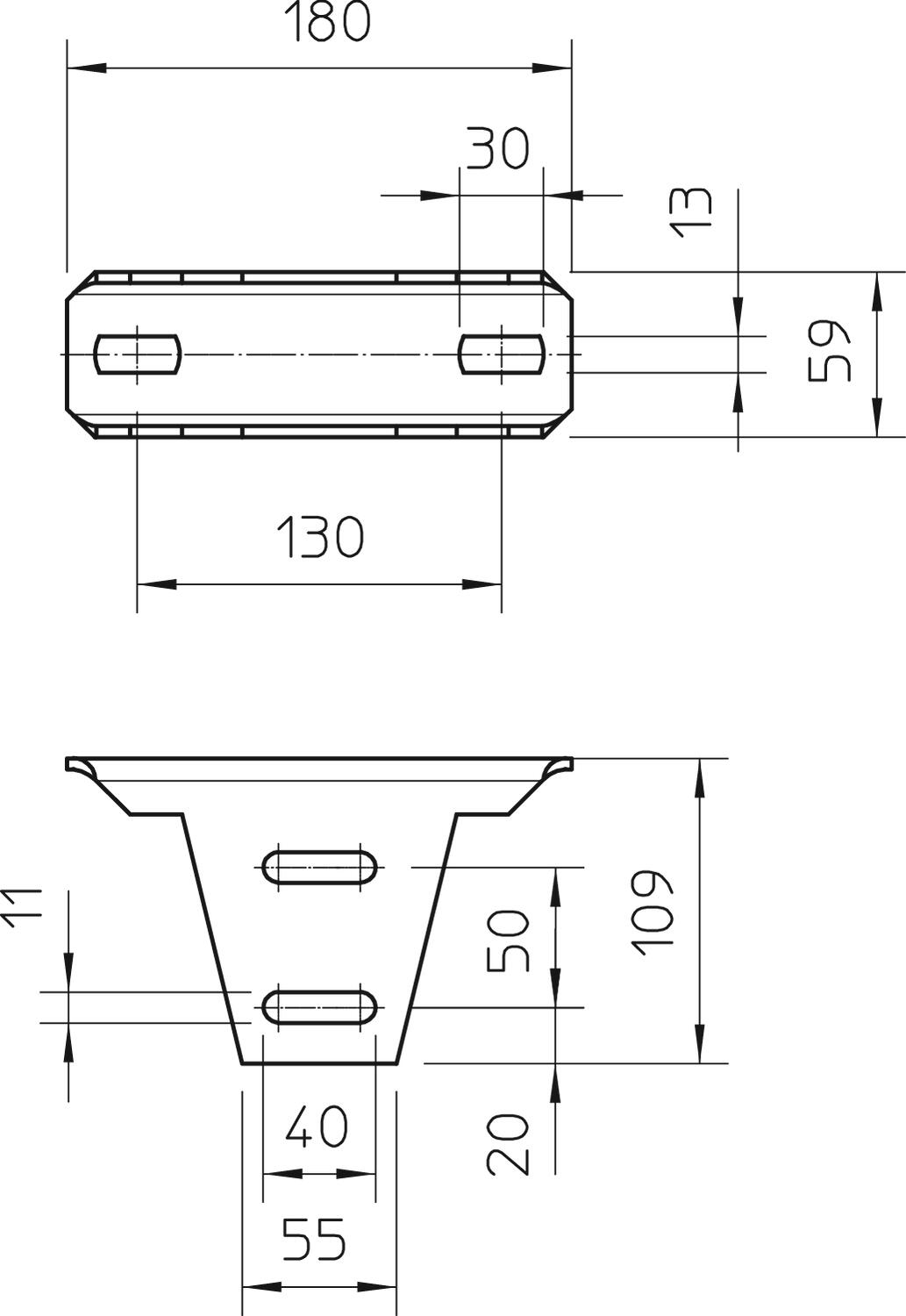

Angle range, max. 30 mm Dimension 180x59x109 Height 109 mm Length 180 mm Maintain electrical functions no Material Steel Rustproof steel, pickled no Suitable for ceiling fastening yes Suitable for panel fastening no Suitable for profile shapes U profile Surface Hot-dip galvanised Version for Screw head plate Width 59 mm - All types
- Downloads
-
Data sheet KU 5 V FT / 6348920 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity KU 5 V FT / 6348920 , 0.13MB , pdfREACH Declaration of conformity KU 5 V FT / 6348920 , 0.12MB , pdfRoHS Declaration of conformity KU 5 V FT / 6348920 , 0.12MB , pdfMounting instructions Mounting instructions, U support systems , 0.04MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
