Heavy-duty cable tray SGR 105 G

Item no. / Types

Length	3000 mm

Width

Height	105 mm

Wire diameter	6 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

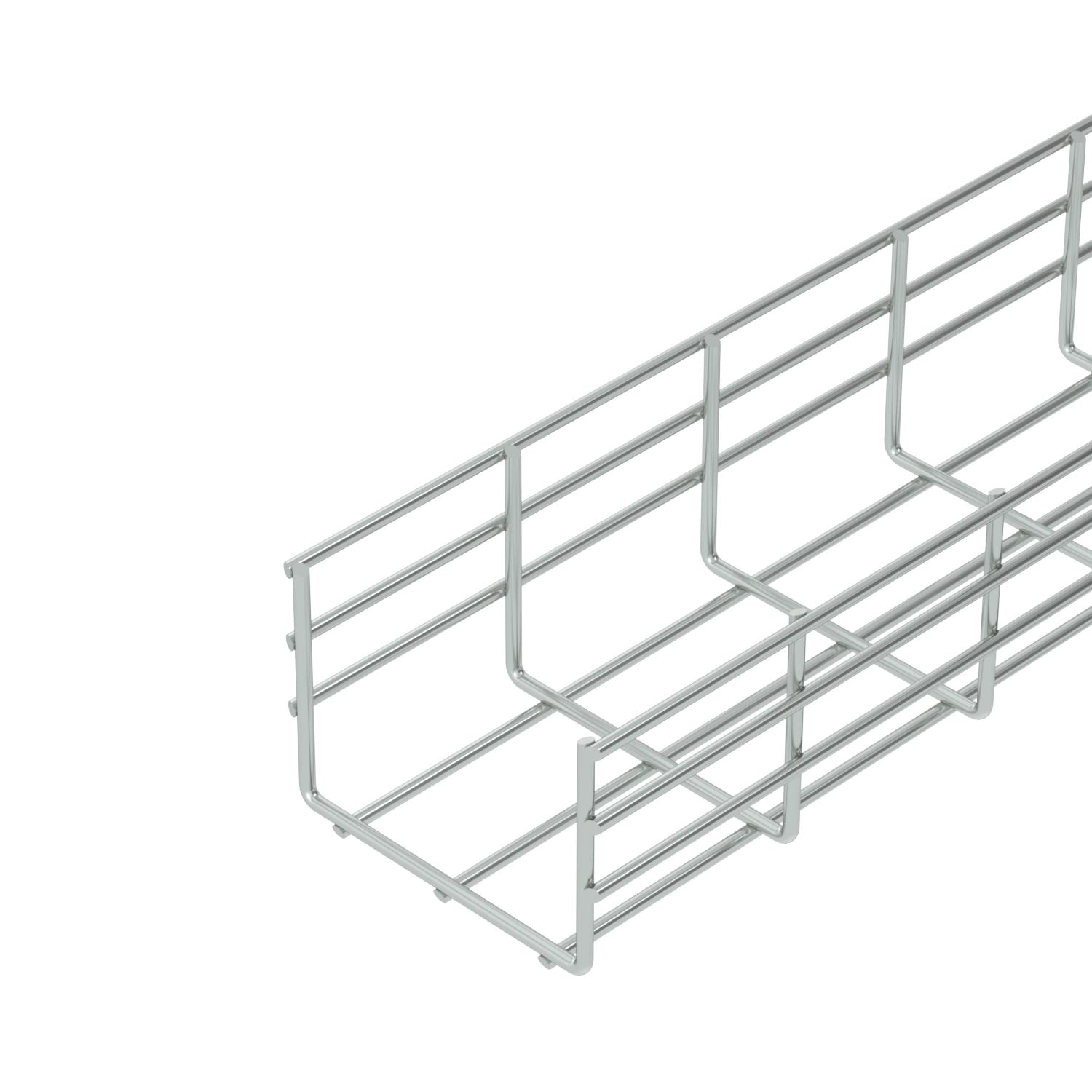

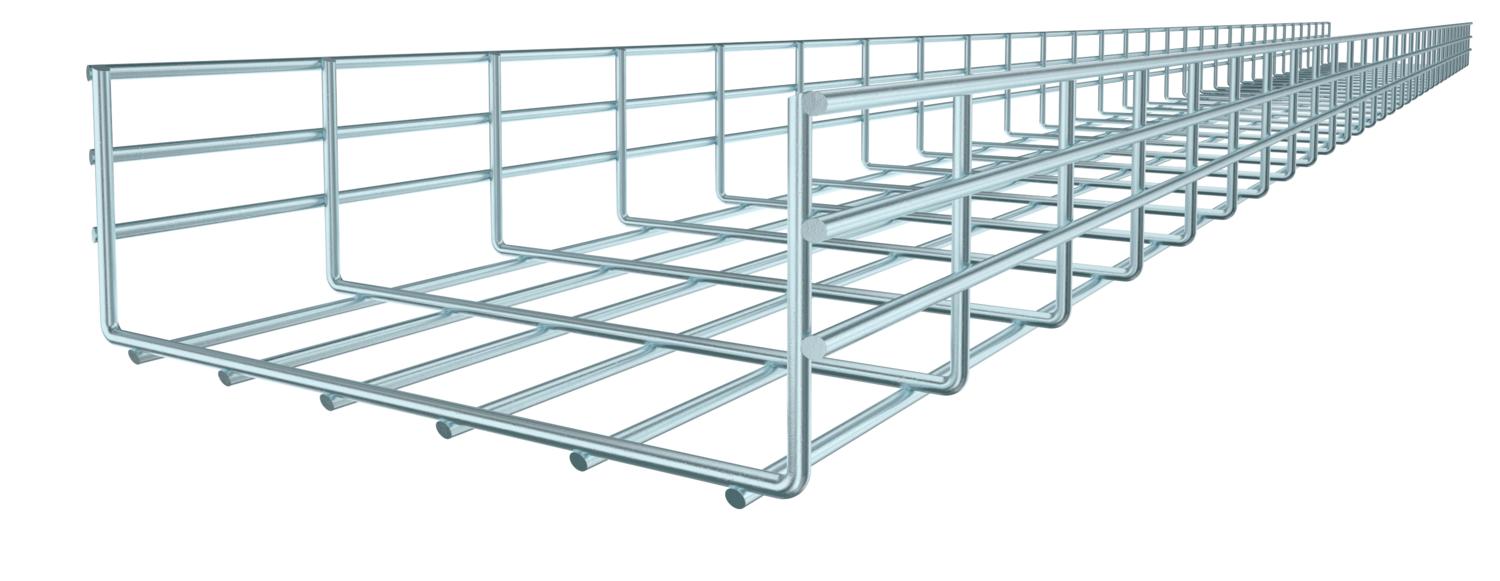

Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Connector version	Without connectors

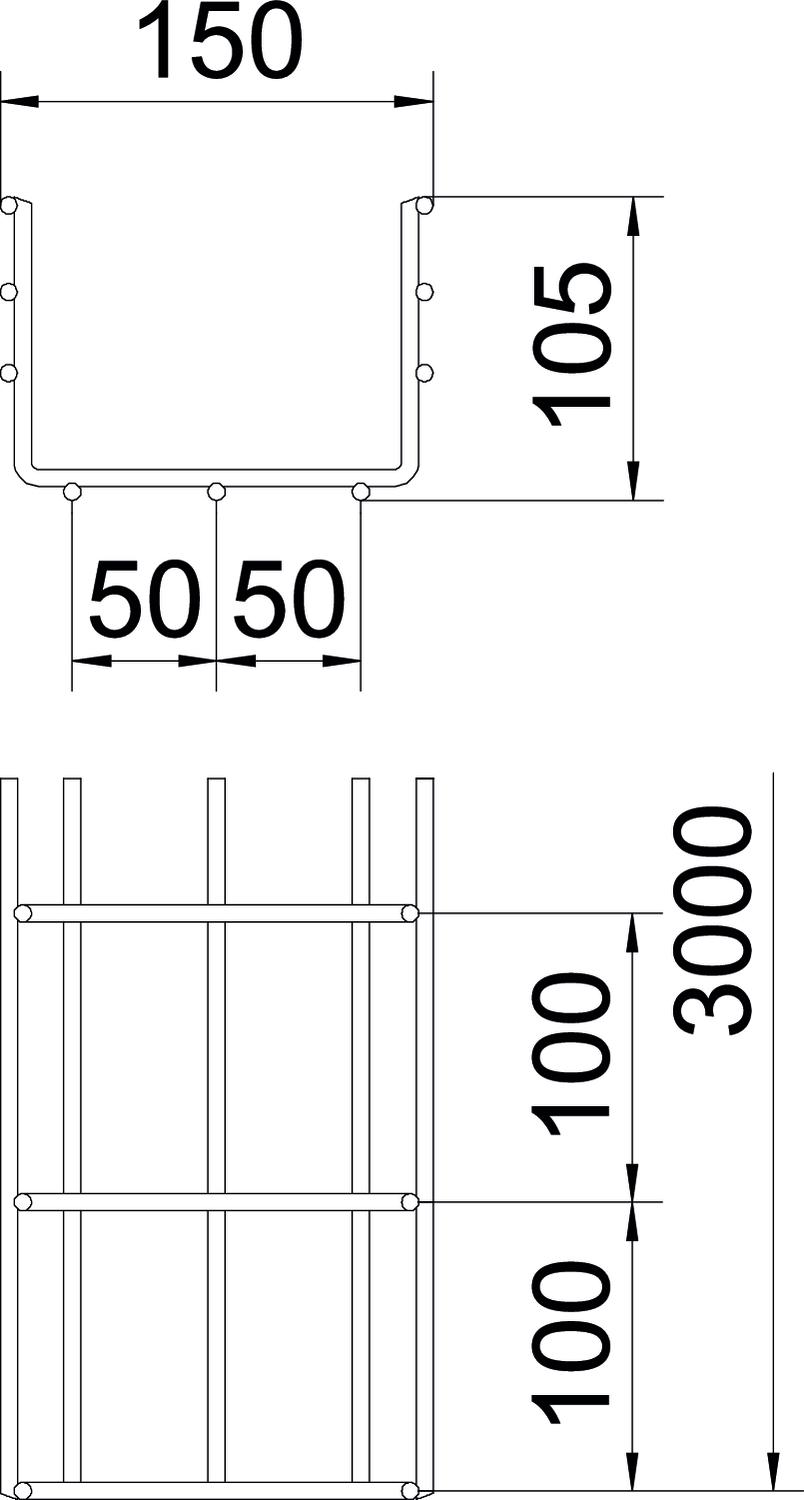

Dimension	105x150x3000
Dimension B	150 mm
Height	4,13 in
Height	105 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped
Rustproof steel, pickled	no

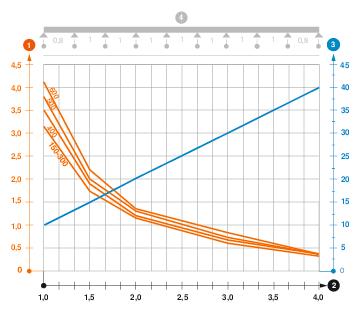

Support spacing 1.0 m	3,1 kN/m
Support spacing 1.5 m	1,75 kN/m

Support spacing 2.0 m	1,15 kN/m
Support spacing 2.5 m	0,79 kN/m
Support spacing 3.0 m	0,6 kN/m
Support spacing 3.5 m	0,5 kN/m
Support spacing 4.0 m	0,4 kN/m
Surface	Electrogalvanized
Type of connector, cable support system	Screwed
Usable cross-section	13000 mm²
Usable cross-section	130 cm²
Wide-span version	no
Width	150 mm
Width	5,91 in
Wire diameter	6 mm

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
SGR 105 150 G	3000 mm	150 mm	105 mm	6 mm	130 cm²	no	6002608	m	3 m
SGR 105 200 G	3000 mm	200 mm	105 mm	6 mm	175 cm²	no	6002612	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

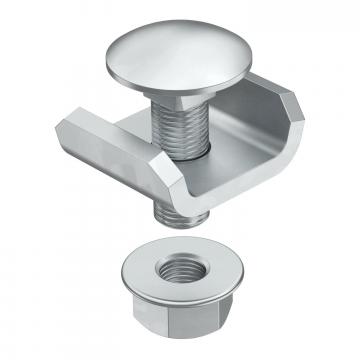

Joint connector G	GUV 6 G	6016572	piece	20 piece

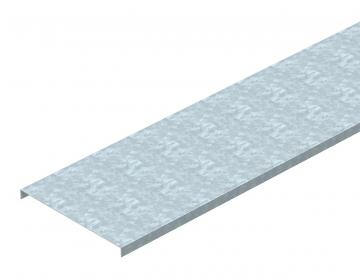

Unperforated cover FS	DRLU 150 FS	6052153	m	3 m

Products	Types	Item no.	Quantity	SSU

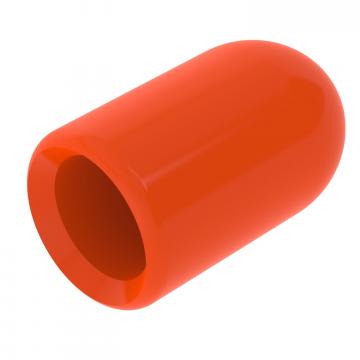

End cap	SGR KS OR	6003758	piece	500 piece
Barrier strip 85 DD	TSG 85 DD	6062331	m	3 m

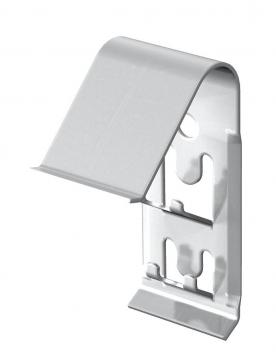

Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out FS	KAB GR FS	6220139	piece	10 piece
