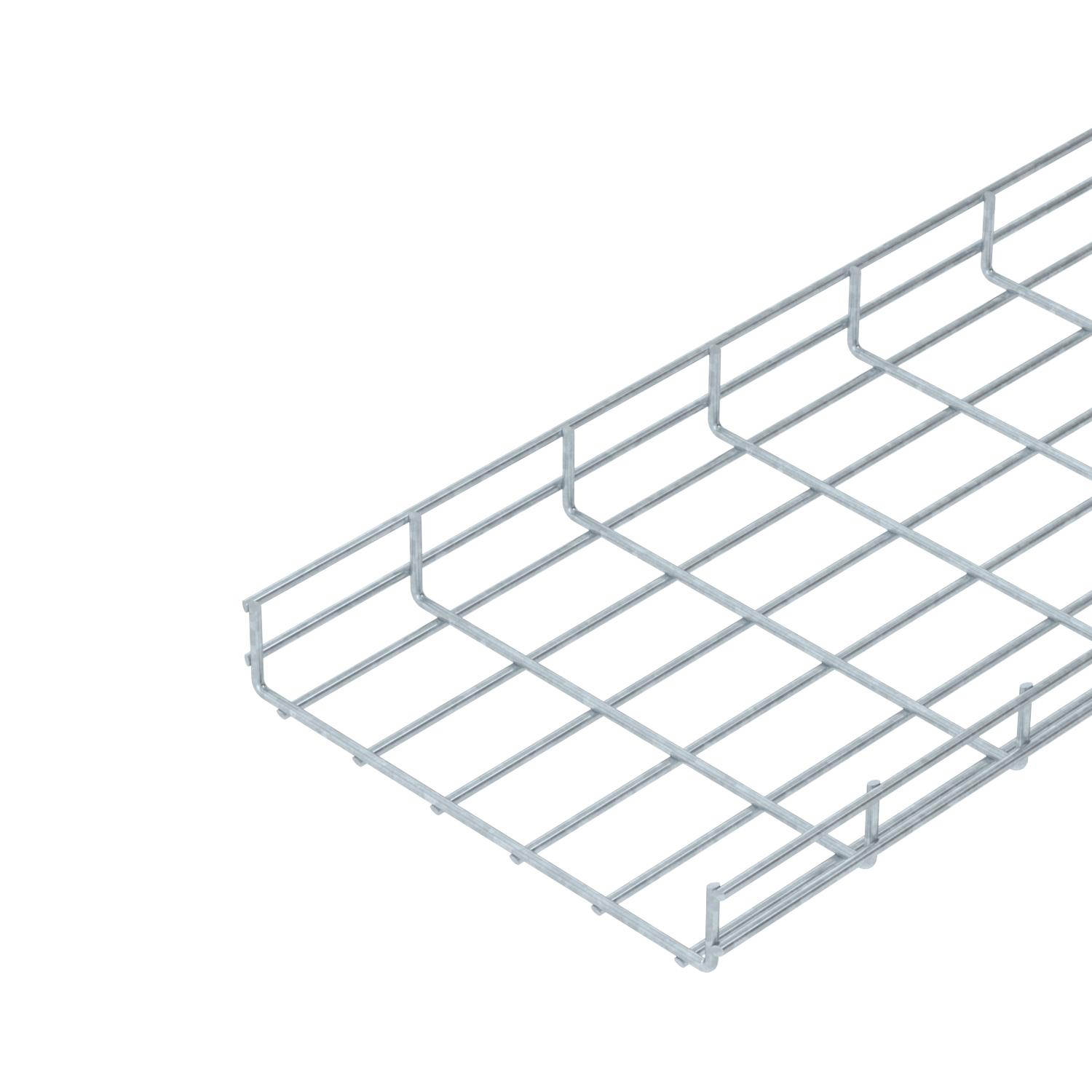

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
-
- Technical data
-

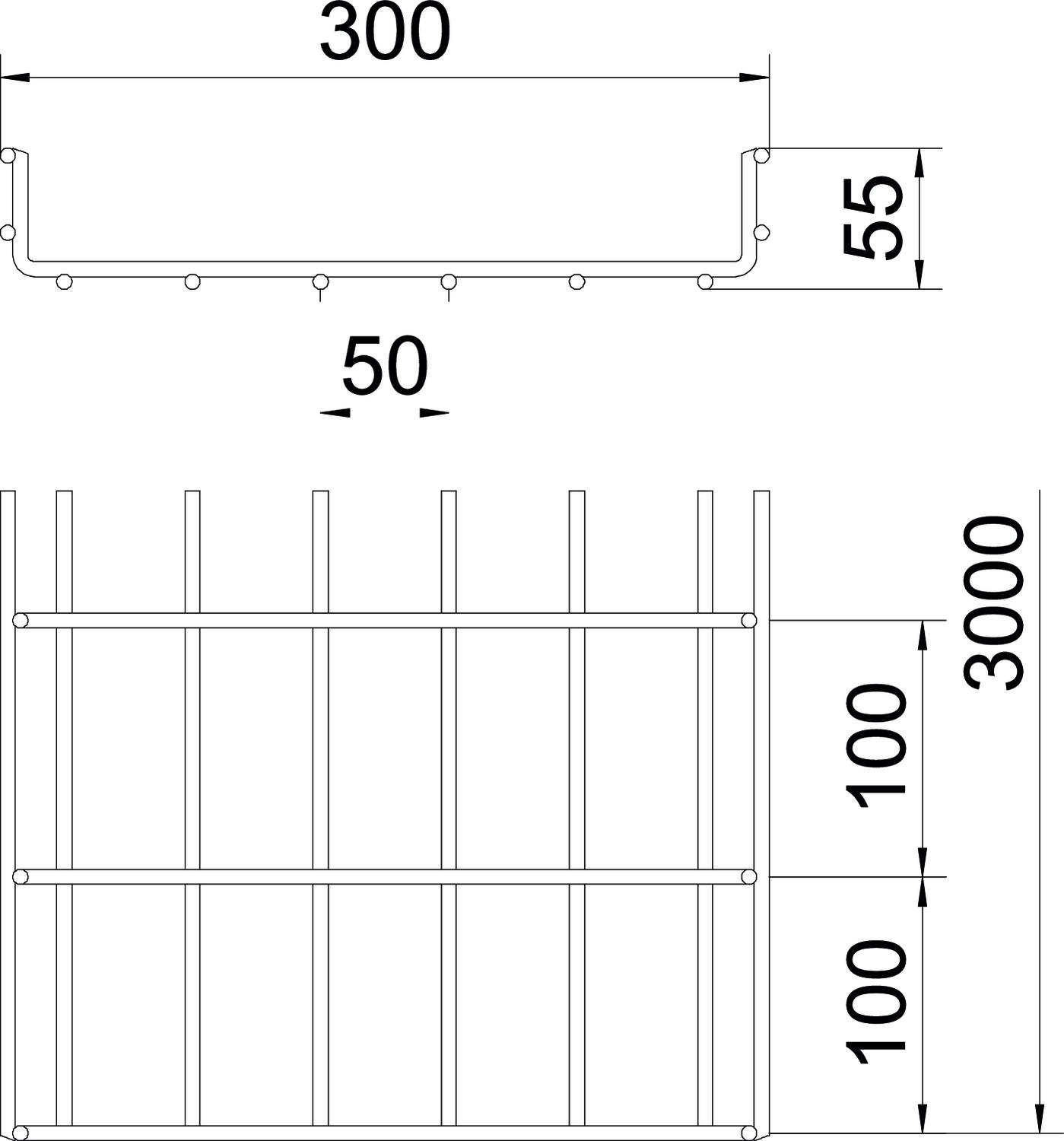

Technical data
Connector version Without connectors Dimension 55x300x3000 Load test type according to IEC 61537 Type II Material Steel Profile shape U-shaped Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 129 cm² Usable cross-section 12900 mm² Wire diameter 6 mm Dimensions
Dimension B 300 mm Height 2,17 in Height 55 mm Length 3000 mm Width 11,81 in Width 300 mm Loads
Support spacing 1.0 m 2 kN/m Support spacing 1.5 m 1,3 kN/m Support spacing 2.0 m 0,75 kN/m Support spacing 2.5 m 0,45 kN/m Support spacing 3.0 m 0,4 kN/m Technical data
Load diagram, mesh cable tray, type SGR 55
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
