Heavy-duty cable tray SGR 55 G

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter	6 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

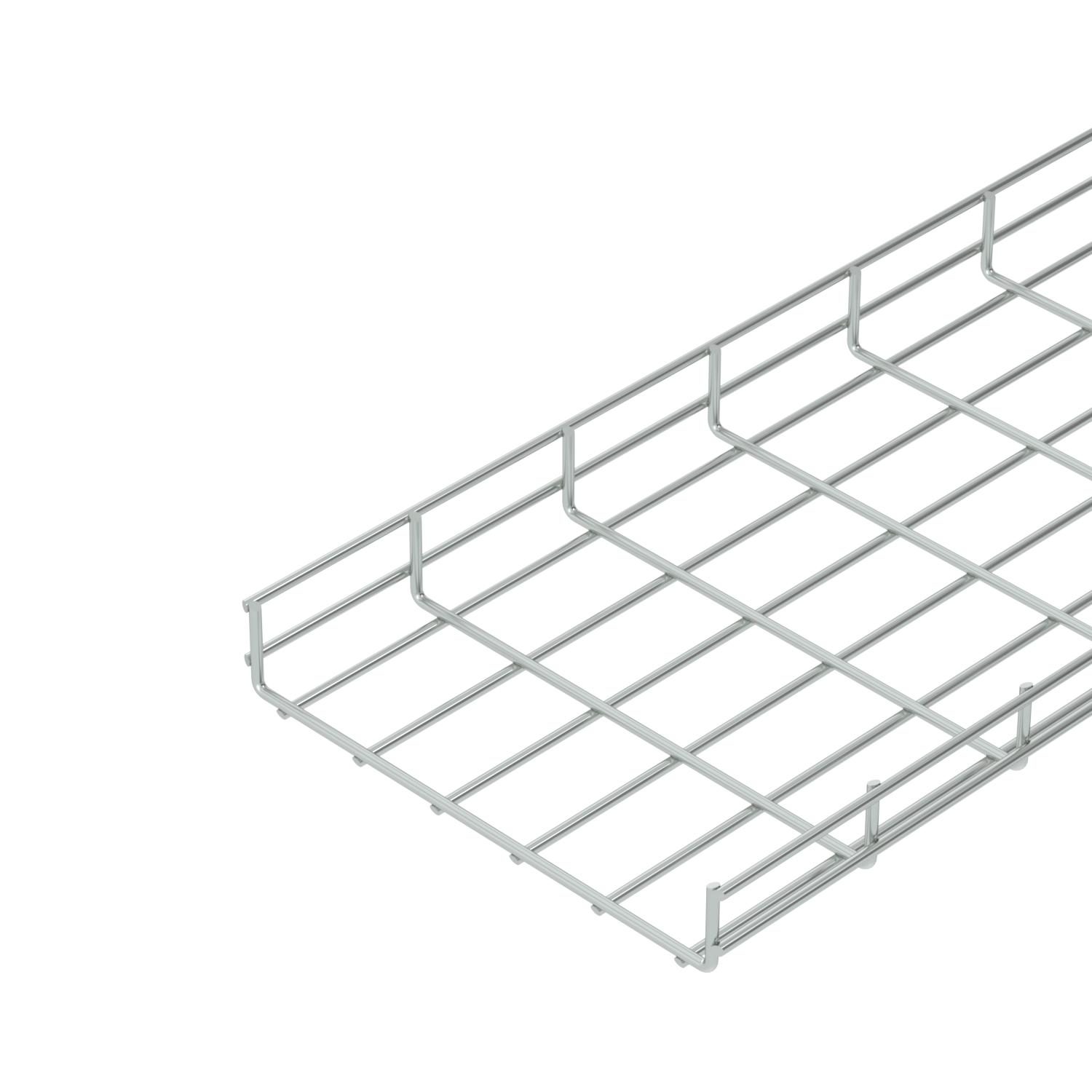

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Connector version	Without connectors

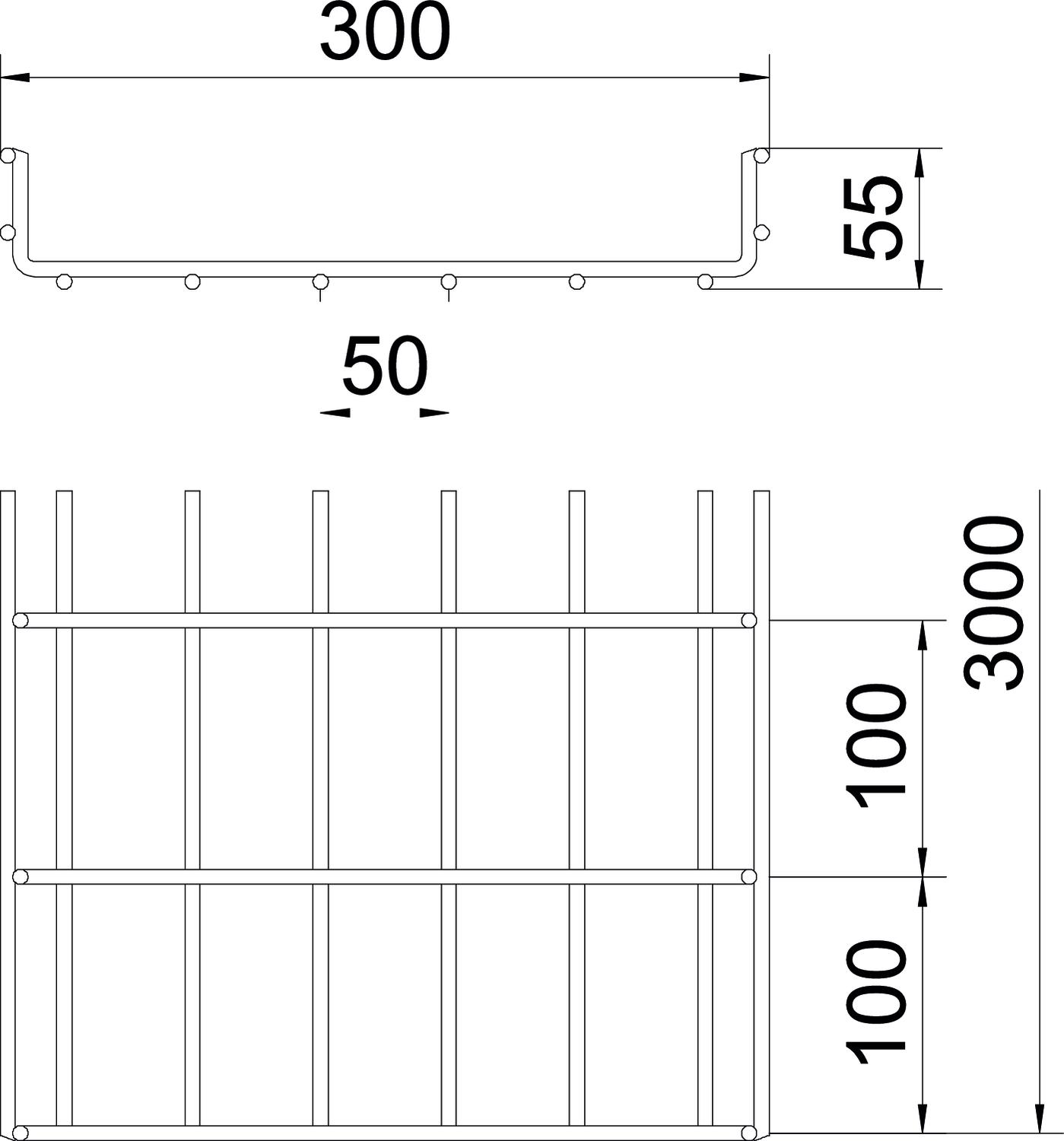

Dimension	55x300x3000
Dimension B	300 mm
Height	55 mm
Height	2,17 in
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped
Rustproof steel, pickled	no
Support spacing 1.0 m	2 kN/m

Support spacing 1.5 m	1,3 kN/m
Support spacing 2.0 m	0,75 kN/m
Support spacing 3.0 m	0,4 kN/m
Surface	Electrogalvanized
Type of connector, cable support system	Screwed
Usable cross-section	12900 mm²
Usable cross-section	129 cm²
Wide-span version	no
Width	11,81 in
Width	300 mm
Wire diameter	6 mm

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
SGR 55 200 G	3000 mm	200 mm	55 mm	6 mm	87 cm²	no	6005474	m	3 m
SGR 55 300 G	3000 mm	300 mm	55 mm	6 mm	129 cm²	no	6005476	m	3 m
SGR 55 400 G	3000 mm	400 mm	55 mm	6 mm	175 cm²	no	6005478	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector G	GUV 6 G	6016572	piece	20 piece
Unperforated cover FS	DRLU 300 FS	6052307	m	3 m

Products	Types	Item no.	Quantity	SSU
End cap	SGR KS OR	6003758	piece	500 piece
Separating retainer 45 FS	TSG 45 FS	6062033	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out FS	KAB GR FS	6220139	piece	10 piece
