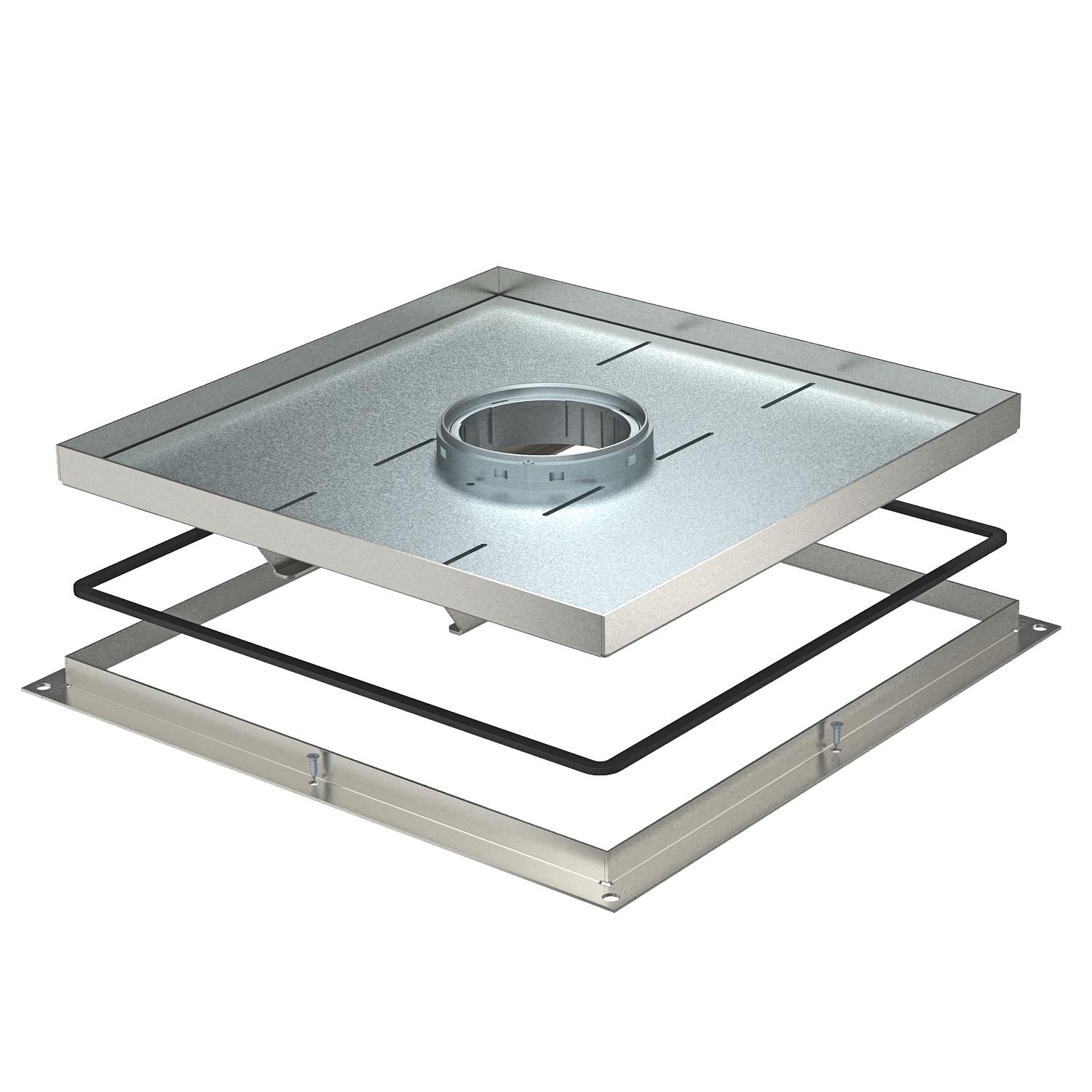

Heavy-duty frame cassette for tube body, RKFSL, nominal size 350-3
Item no. 7409544 | EAN 4012195870128
- Product description
-
Product descriptionHeavy-duty frame cassette for tube body for the installation of accessories in the UZD350-3in dry or wet-care floors in interior areas Load class 2 to 20 kN. The tube body is not contained in the scope of delivery.
-
- Technical data
-
Technical data

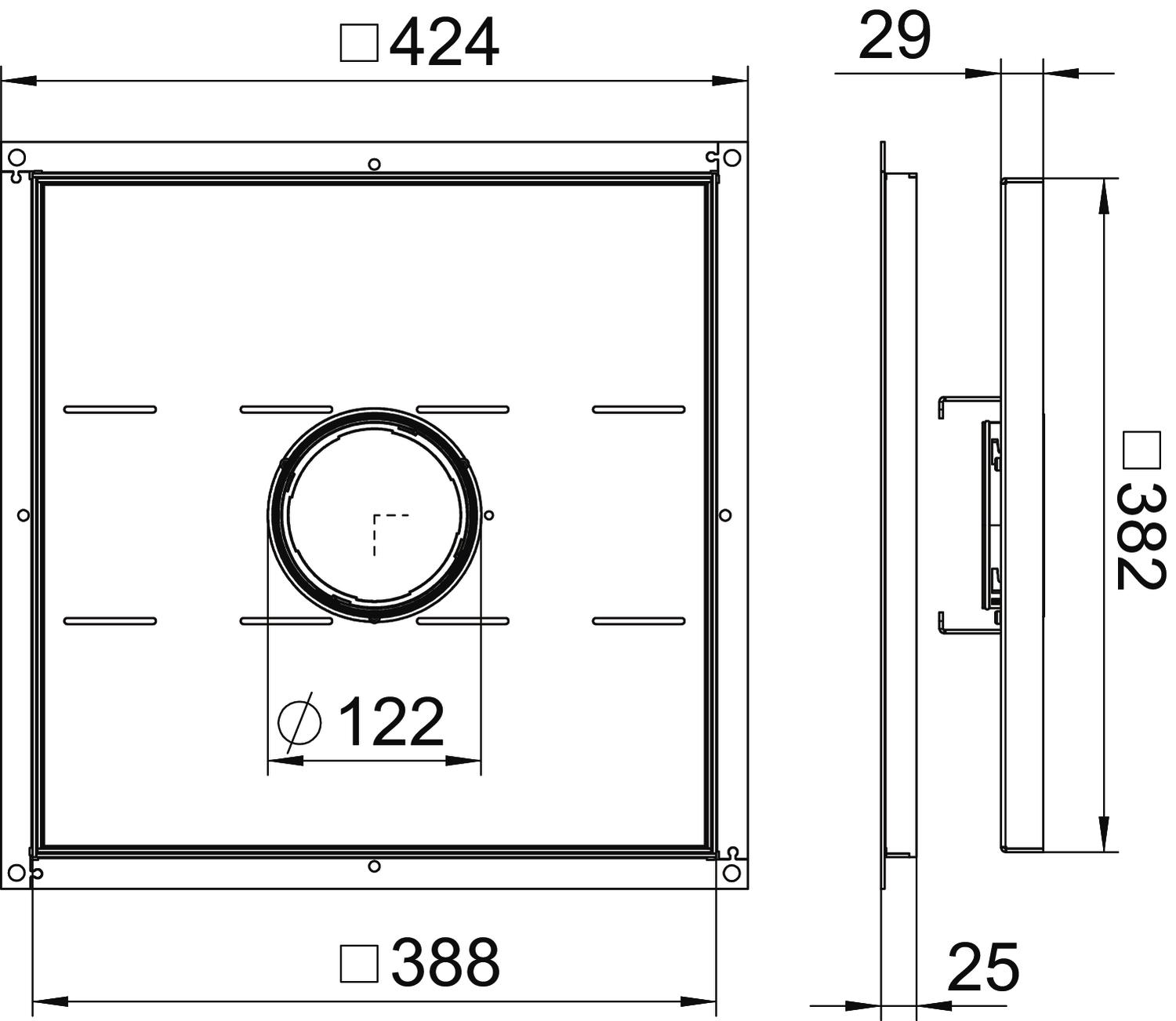

Cable outlet version Lowerable tube body Dimension 383x383x25 Dimension A 424 mm Dimension B 388 mm Dimension C 382 mm Dimension h 25 mm Floor covering thickness 19 mm Heavy load class 20 kN (OBO SL2) Heavy-duty version yes Length of installation dimensions 390 mm Material Stainless steel Protection rating (IP) when unused IP44 Protection rating (IP) when used IP20 Protection rating IK code IK10 Suitable for cavity floor installation yes Suitable for raised floor installation yes Wide installation dimensions 390 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Tube body with cover plate, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 GV 7428140 1 piece
Tube body with cover plate, without handle clamp, for frame cassette and height-adjustable cassette
TUK2 V 7428141 1 piece
Tube body with floor covering recess, with handle clamp, for frame cassette and height-adjustable cassette
TUK2 G4 7428142 1 piece - Downloads
-
