- Product description
-
Product description

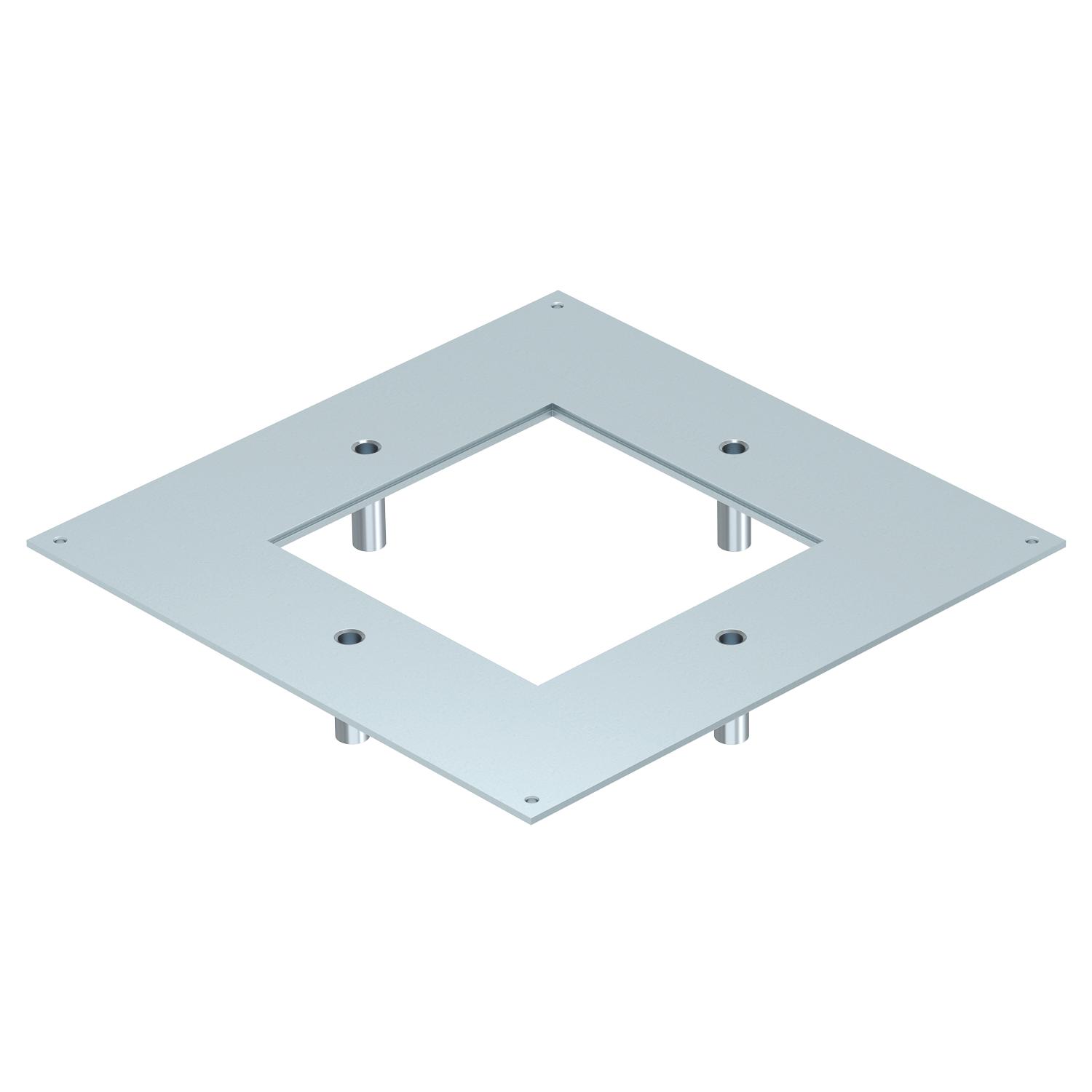

The heavy-duty mounting lid for the type UZD350 underfloor box is suitable for installation in a square heavy-duty cassette of nominal size 4. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
- Technical data
-
Technical data
Dimension 382x382x59 Floor care Dry Heavy-duty version yes Installation opening for on-floor tank no Material Steel Material thickness 4 mm Mounting opening Square Mounting opening cover no Nominal size 350 mm Nominal size for device installation units 4 Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Dimensions

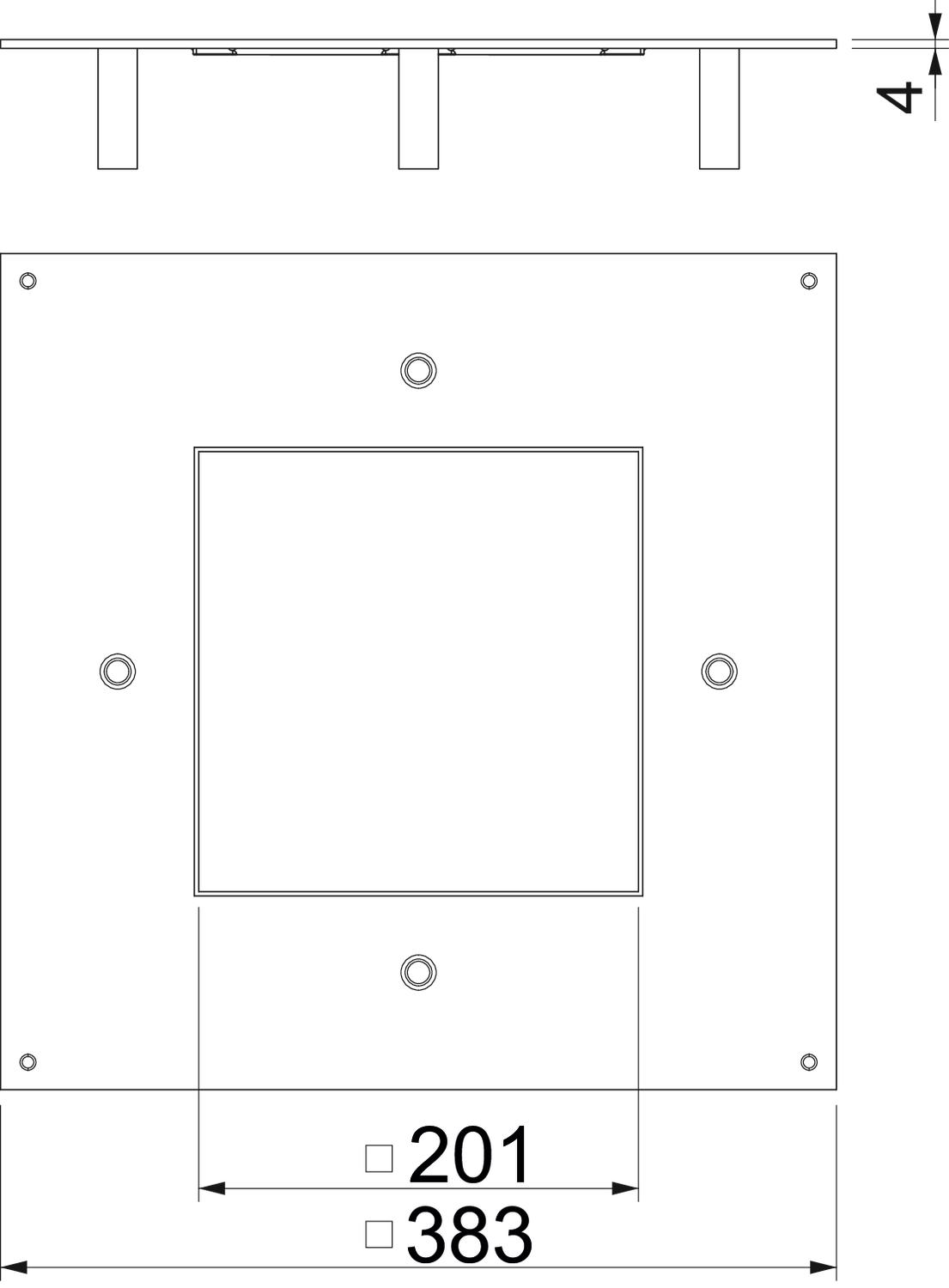

Dimension A 383 mm Dimension a 201 mm Length 383 mm Width 383 mm - All types
- Downloads
-
Data sheet DUG 350-3 4SL / 7401408 , 0.18MB , pdfDeclaration of conformity DUG 350-3 4SL / 7401408 , 0.17MB , pdfMounting instructions Schwerlastsystem , 6.72MB , pdfMounting instructions Schwerlastkassetten Deckel und Nivelliereinheiten , 4.90MB , pdf
