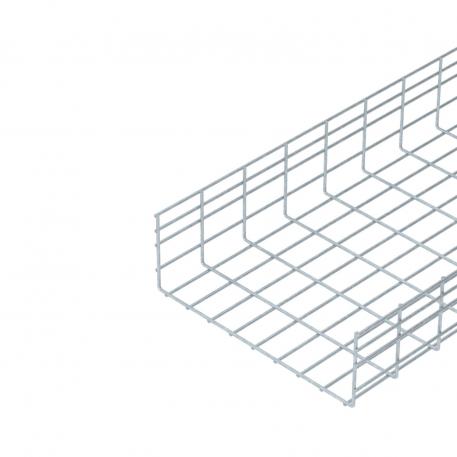

Heavy mesh cable tray SGR 155 FT
Item no. 6003695 | EAN 4012195380283
- Product description
-
Product description
Mesh cable tray made of spot-welded steel wire of side height 155 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
-
- Technical data
-
Technical data
Connector version Without connectors Dimension 155x450x3000 Dimension B 450 mm Height 155 mm Height 6,1 in Integrated partition Without Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Profile shape U-shaped Rustproof steel, pickled no Screwless connector no Support spacing 1.0 m 4,1 kN/m Support spacing 1.5 m 2,5 kN/m Support spacing 2.0 m 1,6 kN/m Support spacing 2.5 m 1,15 kN/m Support spacing 3.0 m 0,95 kN/m Support spacing 3.5 m 0,83 kN/m Support spacing 4.0 m 0,6 kN/m Surface Hot-dip galvanised Type of connector, cable support system Screwed Usable cross-section 66300 mm² Usable cross-section 663 cm² Wide-span version no Width 450 mm Width 17,72 in Wire diameter 6 mm Technical data

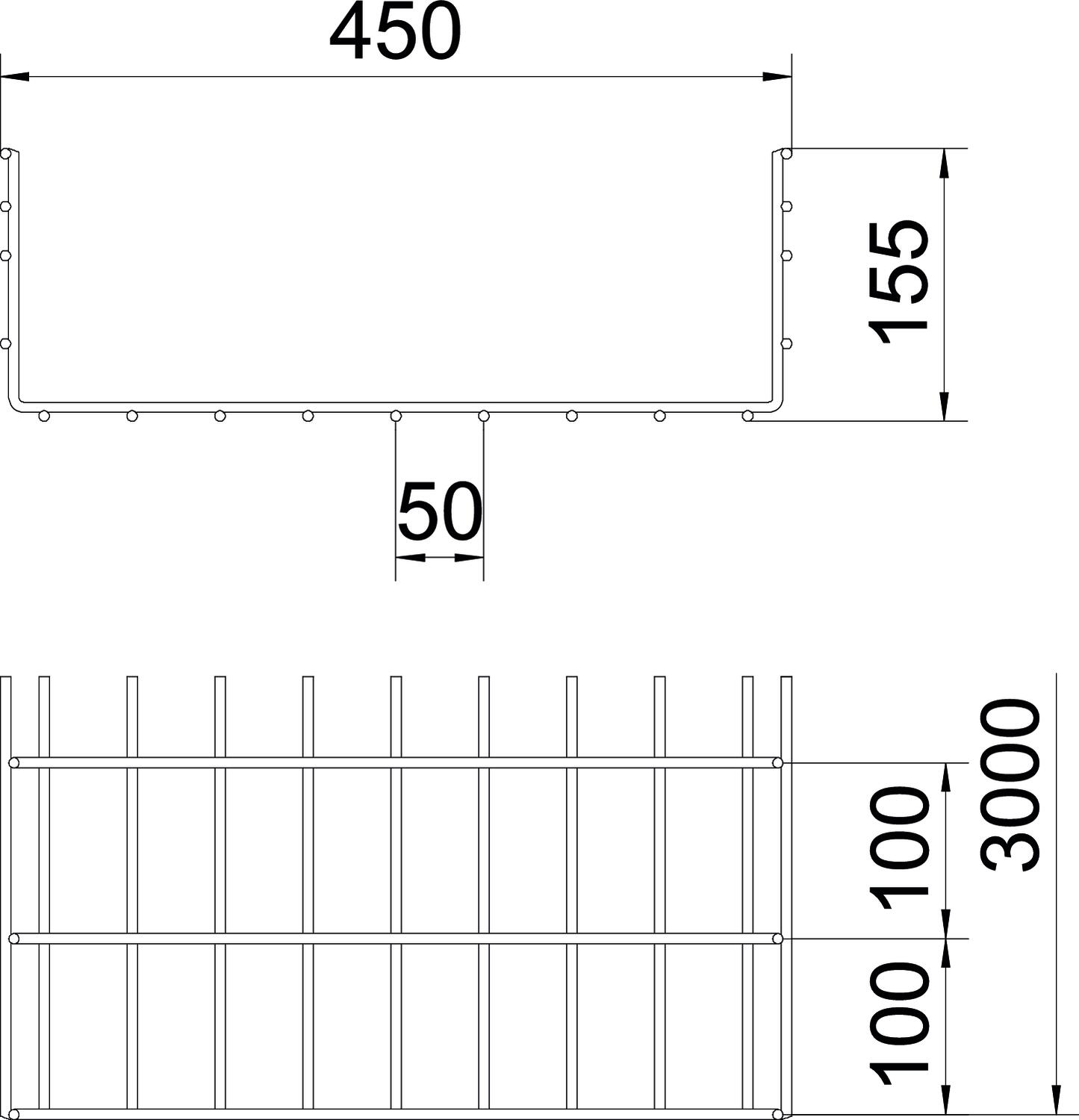

Load diagram, mesh cable tray, type SGR 155
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
