Heavy mesh cable tray SGR 155 G

Item no. / Types

Length	3000 mm

Width

Height	155 mm

Wire diameter	6 mm

Usable cross-section

Maintain electrical functions	no

Product description

Product description

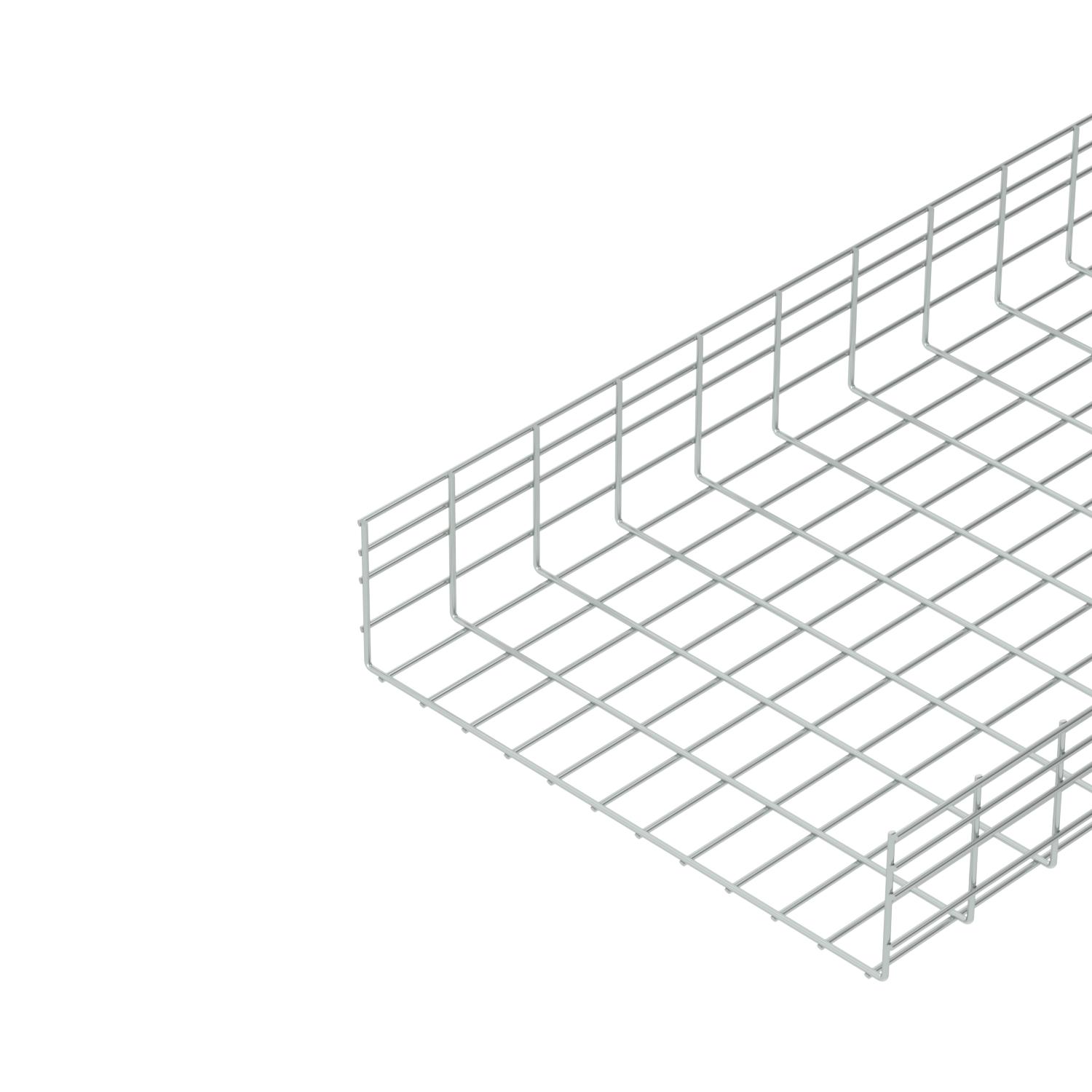

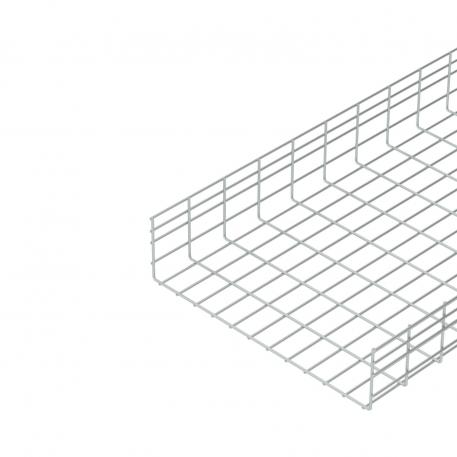

Mesh cable tray made of spot-welded steel wire of side height 155 mm.

Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Connector version	Without connectors

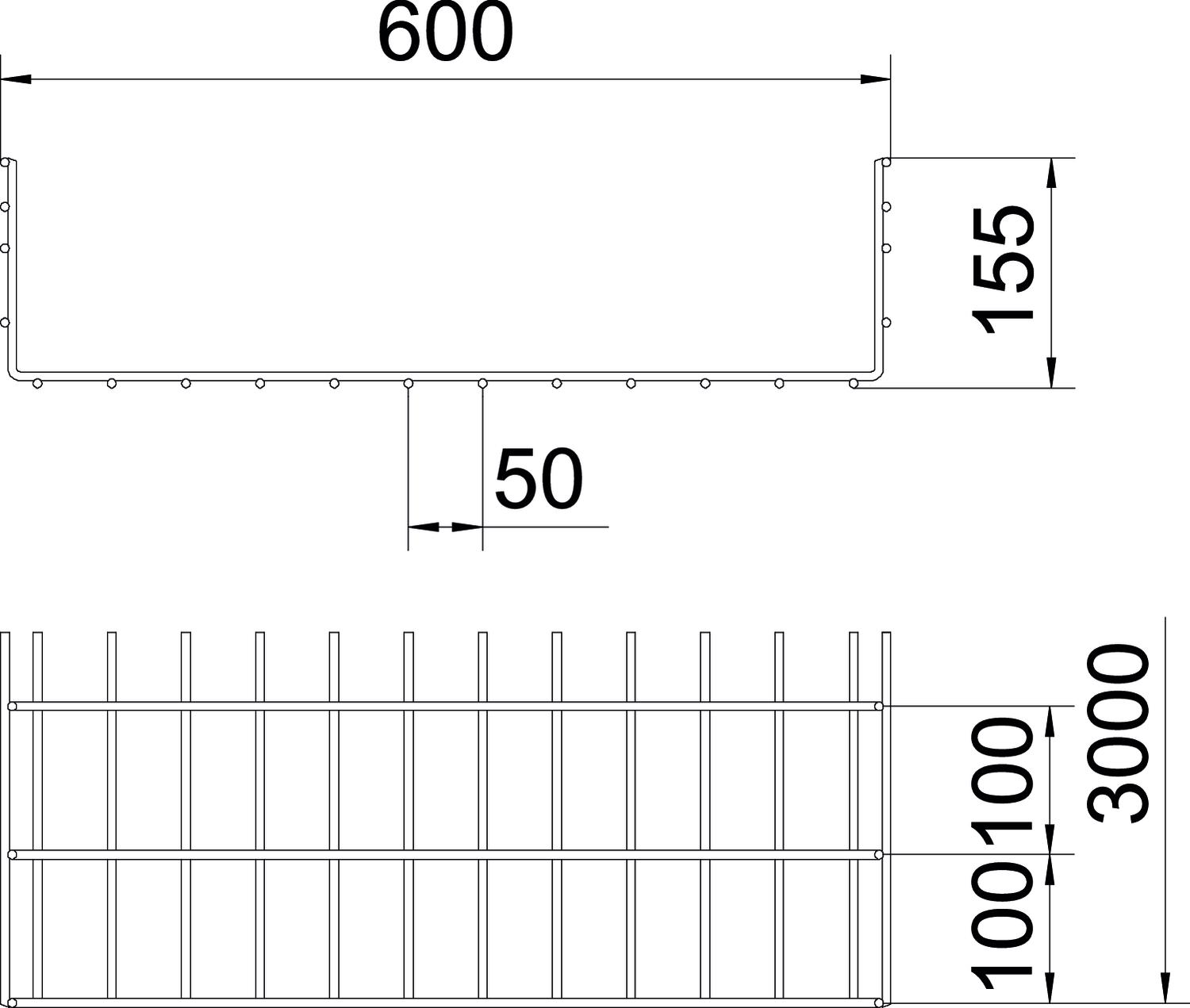

Dimension	155x600x3000
Dimension B	600 mm
Height	6,1 in
Height	155 mm
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Steel
Profile shape	U-shaped
Rustproof steel, pickled	no
Screwless connector	no
Support spacing 1.0 m	4,9 kN/m

Support spacing 1.5 m	3,2 kN/m
Support spacing 2.0 m	2,2 kN/m
Support spacing 2.5 m	1,6 kN/m
Support spacing 3.0 m	1,25 kN/m
Support spacing 3.5 m	1,03 kN/m
Support spacing 4.0 m	0,8 kN/m
Surface	Electrogalvanized
Type of connector, cable support system	Screwed
Usable cross-section	88800 mm²
Usable cross-section	888 cm²
Wide-span version	no
Width	600 mm
Width	23,62 in
Wire diameter	6 mm

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
SGR 155 300 G	3000 mm	300 mm	155 mm	6 mm	438 cm²	no	6003681	m	3 m
SGR 155 450 G	3000 mm	450 mm	155 mm	6 mm	663 cm²	no	6003684	m	3 m
SGR 155 500 G	3000 mm	500 mm	155 mm	6 mm	738 cm²	no	6003685	m	3 m
SGR 155 600 G	3000 mm	600 mm	155 mm	6 mm	888 cm²	no	6003687	m	3 m
