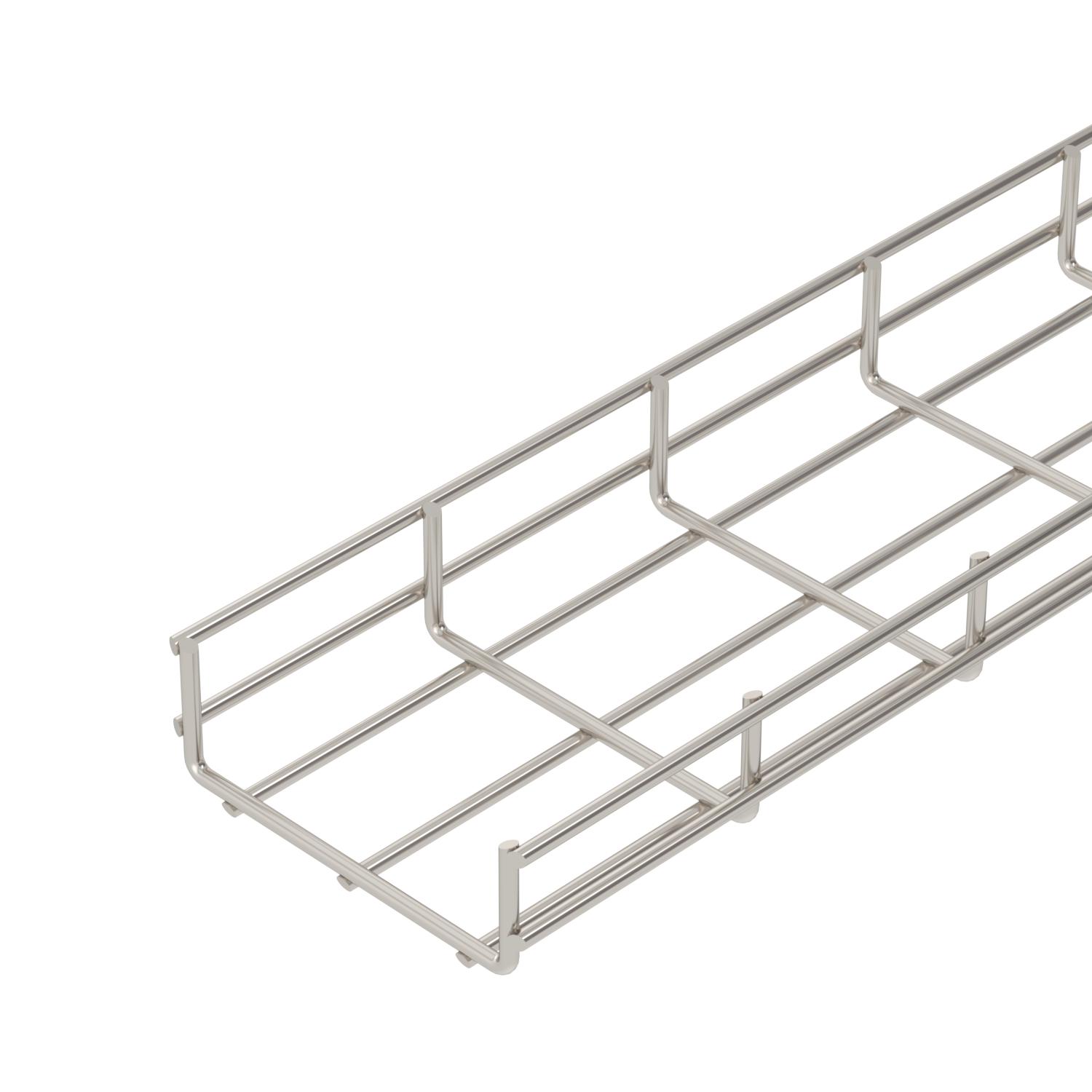

Heavy mesh cable tray SGR 55 A2

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter	6 mm

Usable cross-section

Product description

Product description

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Connector version	Without connectors

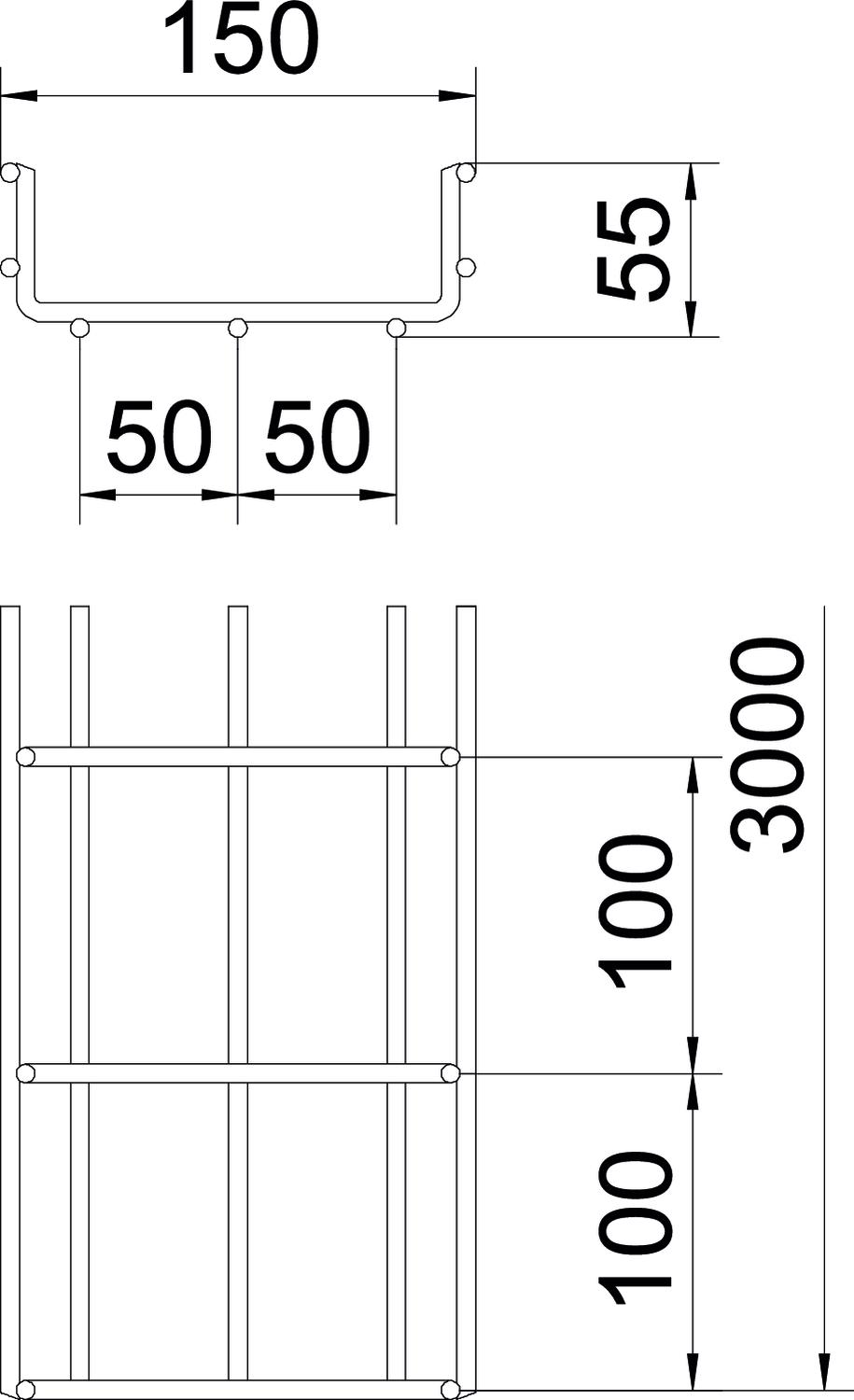

Dimension	55x150x3000
Dimension B	150 mm
Height	55 mm
Height	2,17 in
Length	3000 mm
Load test type according to IEC 61537	Type II
Material	Stainless steel
Profile shape	U-shaped
Support spacing 1.0 m	2 kN/m
Support spacing 1.5 m	1,15 kN/m

Support spacing 2.0 m	0,75 kN/m
Support spacing 2.5 m	0,5 kN/m
Support spacing 3.0 m	0,4 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	63 cm²
Usable cross-section	6300 mm²
Width	150 mm
Width	5,91 in
Wire diameter	6 mm

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Item no.	Quantity	SSU
SGR 55 100 A2	3000 mm	100 mm	55 mm	6 mm	40 cm²	6000909	m	3 m
SGR 55 150 A2	3000 mm	150 mm	55 mm	6 mm	63 cm²	6000913	m	3 m
SGR 55 200 A2	3000 mm	200 mm	55 mm	6 mm	87 cm²	6000917	m	3 m
SGR 55 300 A2	3000 mm	300 mm	55 mm	6 mm	129 cm²	6000925	m	3 m
SGR 55 400 A2	3000 mm	400 mm	55 mm	6 mm	175 cm²	6000933	m	3 m
SGR 55 500 A2	3000 mm	500 mm	55 mm	6 mm	220 cm²	6000941	m	3 m
SGR 55 600 A2	3000 mm	600 mm	55 mm	6 mm	265 cm²	6000958	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector A2	GUV 6 A2	6016574	piece	20 piece

Products	Types	Item no.	Quantity	SSU
End cap	SGR KS OR	6003758	piece	500 piece
Separating retainer 45 A2	TSG 45 A2	6062025	m	3 m
Cover clamp, universal A2	DKU A2	6065600	piece	20 piece
Drop-out plate A2	KAB GR A2	6220145	piece	10 piece
