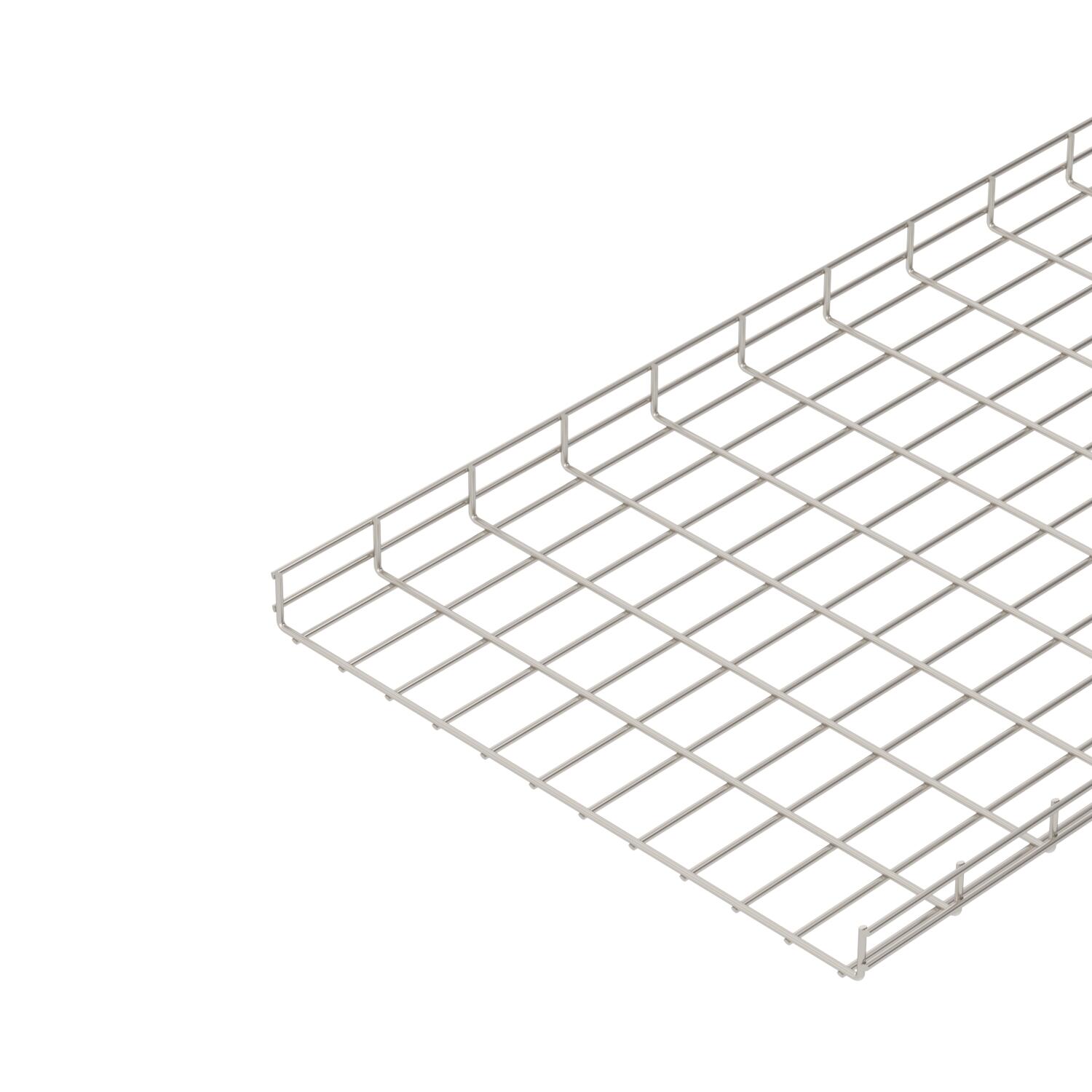

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
-
- Technical data
-
Technical data

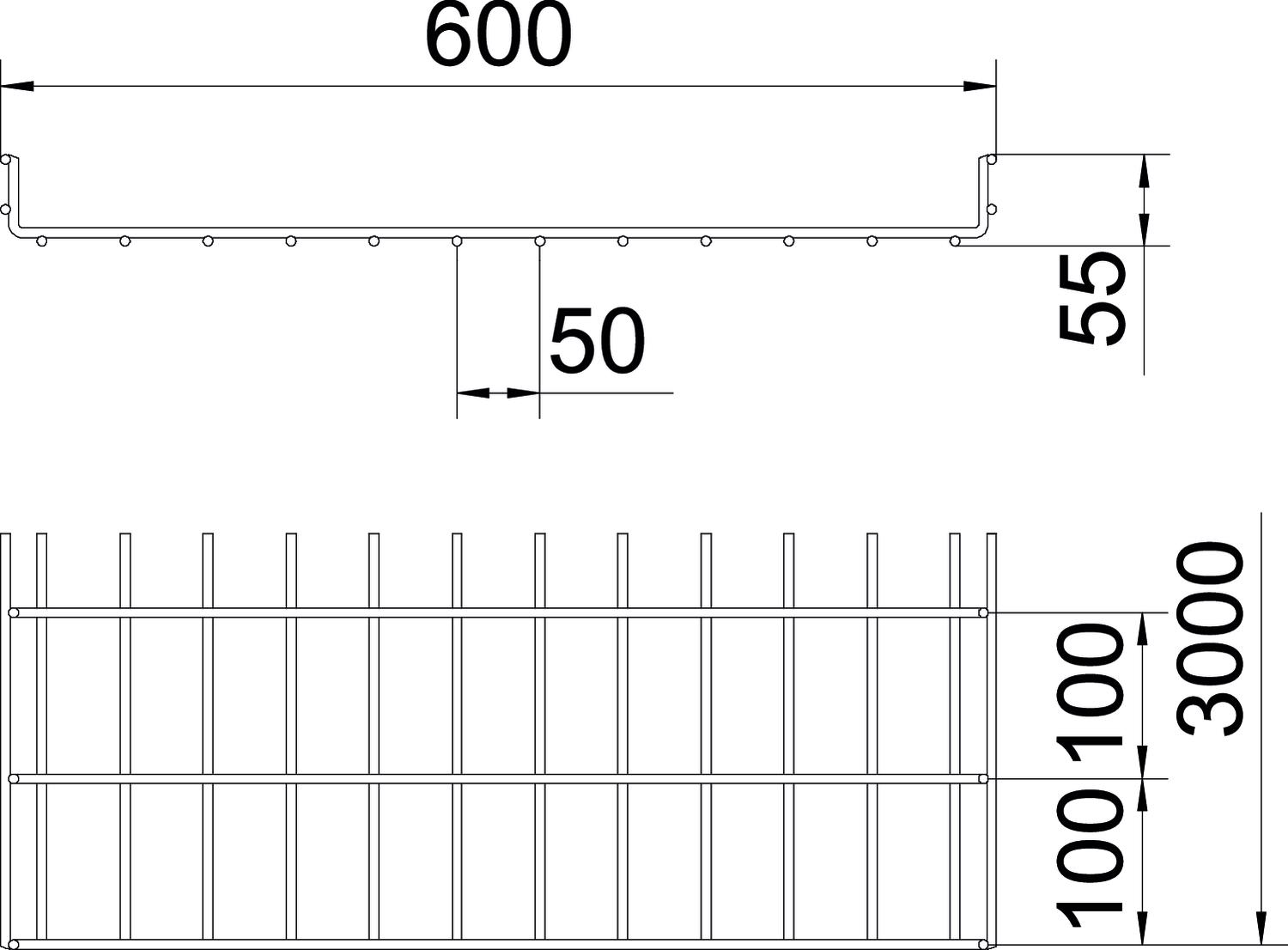

Connector version Without connectors Dimension 55x600x3000 Load test type according to IEC 61537 Type II Material Stainless steel Profile shape U-shaped Surface Bright, treated Type of connector, cable support system Screwed Usable cross-section 26500 mm² Usable cross-section 265 cm² Wire diameter 6 mm Dimensions
Dimension B 600 mm Height 55 mm Height 2,17 in Length 3000 mm Width 600 mm Width 23,62 in Loads
Support spacing 1.0 m 2,9 kN/m Support spacing 1.5 m 1,5 kN/m Support spacing 2.0 m 0,75 kN/m Support spacing 2.5 m 0,38 kN/m Support spacing 3.0 m 0,4 kN/m Technical data
Load diagram, mesh cable tray, type SGR 55
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
